ADGS1612 Series

SPI Interface, 1 Ω RON, ±5 V, 12 V, 5 V, 3.3 V, Mux Configurable, Quad SPST Switch

Catalog

SPI Interface, 1 Ω RON, ±5 V, 12 V, 5 V, 3.3 V, Mux Configurable, Quad SPST Switch

Part	Operating Temperature [Min]	Operating Temperature [Max]	Switch Circuit	On-State Resistance (Max) [Max]	Supplier Device Package	Charge Injection	Package / Case	-3db Bandwidth	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Mounting Type	Current - Leakage (IS(off)) (Max)	Voltage - Supply, Dual (V±)	Channel-to-Channel Matching (ΔRon)	Number of Circuits	Multiplexer/Demultiplexer Circuit	Crosstalk	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]
Analog Devices ADGS1612BCPZ	-40 °C	125 °C	SPST - NO	1 Ohms	24-LFCSP (4x4)	140 pC	24-VFQFN Exposed Pad CSP	42 MHz	3.3 V	16 V	Surface Mount	100 pA	3.3 V 8 V	40 mOhm	4	1:1	-110 dB	63 pF	63 pF

Catalog

SPI Interface, 1 Ω RON, ±5 V, 12 V, 5 V, 3.3 V, Mux Configurable, Quad SPST Switch

Key Features

• SPI interface with error detectionIncludes CRC, invalid read/write address, and SCLK count error detectionSupports burst mode and daisy-chain modeIndustry-standard SPI Mode 0 and SPI Mode 3 interface compatible

• Includes CRC, invalid read/write address, and SCLK count error detection

• Supports burst mode and daisy-chain mode

• Industry-standard SPI Mode 0 and SPI Mode 3 interface compatible

• Guaranteed break-before-make switching allowing external wiring of switches to deliver multiplexer configurations

• 1 Ω typical on resistance at 25°C

• 0.23 Ω typical on resistance flatness at 25°C

• VSSto VDDanalog signal rangeFully specified at ±5 V, 12 V, 5 V, and 3.3 V±3.3 V to ±8 V dual-supply operation3.3 V to 16 V single-supply operation

• Fully specified at ±5 V, 12 V, 5 V, and 3.3 V

• ±3.3 V to ±8 V dual-supply operation

• 3.3 V to 16 V single-supply operation

• 1.8 V logic compatibility with 2.7 V ≤ VL≤ 3.3 V

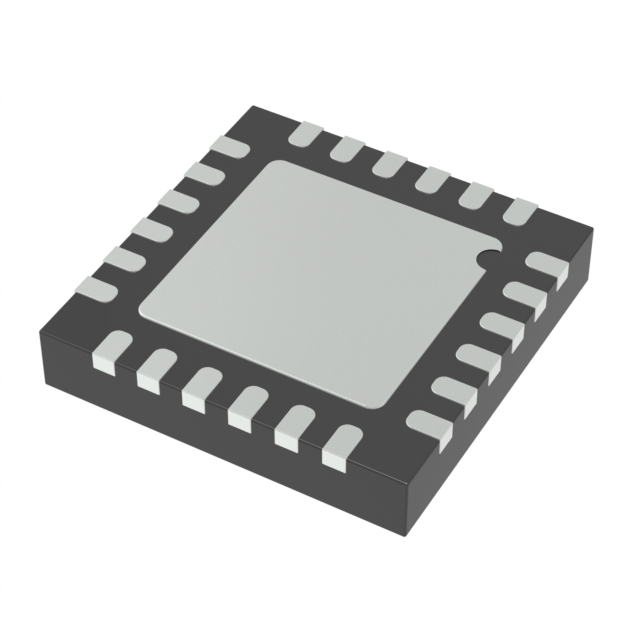

• 4 mm × 4 mm, 24-lead LFCSP package

Description

The ADGS1612 contains four independent single-pole/single-throw (SPST) switches. A serial peripheral interface (SPI) controls the switches. The SPI interface has robust error detection features, including cyclic redundancy check (CRC) error detection, invalid read/write address detection, and serial clock (SCLK) count error detection.It is possible to daisy-chain multiple ADGS1612 devices together. Daisy-chaining enables the configuration of multiple devices with a minimal amount of digital lines. The ADGS1612 can also operate in burst mode to decrease the time between SPI commands.Each switch conducts equally well in both directions when on, and each switch has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked.The ultralow on resistance (RON) of these switches make them ideal solutions for data acquisition and gain switching applications where low RONand low distortion are critical. The RONprofile is very flat over the full analog input range, ensuring excellent linearity and low distortion when switching audio signals. The ADGS1612 exhibits break-before-make switching action for use in multiplexer applications. Note that throughout this data sheet, the multifunction pin,RESET/VL, is referred to either by the entire pin name or by a single function of the pin, for example, VL, when only that function is relevant.Product HighlightThe SPI interface removes the need for parallel conversion and logic traces and reduces general-purpose input/output (GPIO) channel count.Daisy-chain mode removes additional logic traces when multiple devices are used.CRC, invalid read/write address, and SCLK count error detection ensure a robust digital interface.CRC error detection capabilities allow the use of the ADGS1612 in safety critical systems.Guaranteed break-before-make switching allows the use of the ADGS1612 in multiplexer configurations with external wiring.Minimum distortion.ApplicationsCommunication systemsMedical systemsAudio and video signal routingAutomatic test equipmentData acquisition systemsBattery-powered systemsSample-and-hold systemsRelay replacements
