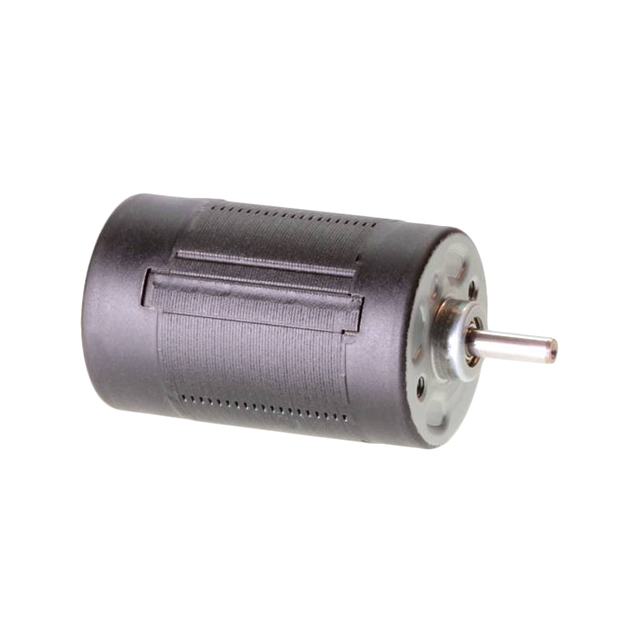

BLDC24P24 Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K
STANDARD MOTOR 8400 RPM 24V
| Part | Weight [custom] | Weight [custom] | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Operating Temperature [Max] | Operating Temperature [Min] | Power - Rated | Type | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | RPM | Termination Style | Motor Type | Voltage - Rated | Length - Shaft and Bearing | Length - Shaft and Bearing | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 0.177 lb | 80.29 g | 26 mNm | 3.68 oz-in | 45 °C | -20 ░C | 20 W | DC Motor | 0.118 in | 3 mm | 0.63 in | 16 mm | 8400 RPM | Connector | Brushless (BLDC) | 24 VDC | 12 mm | 0.472 in | Standard |
