RM12WBP Series

Catalog

CONN CABLE CLAMP SZ12 SILVER M13

Part	For Use With/Related Products	Includes	Cable Opening	Cable Opening	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Color	Material	Features	Thread Size	Ingress Protection	Plating	Shell Size - Insert [custom]	Cable Exit	Type	Orientation	Fastening Type	Connector Type	Mounting Type	Number of Positions

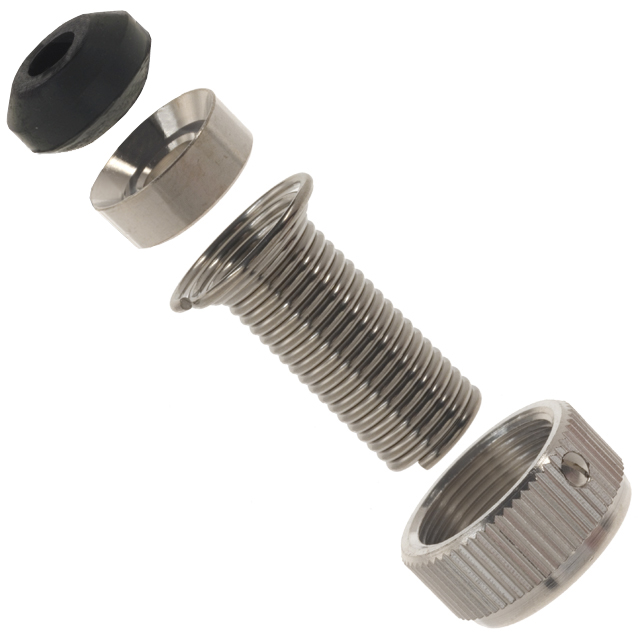

Hirose Electric Co Ltd RM12WBP-CP(4)	RM-W Series Plug	1 Gasket 1 Washer 2 pc Clamp	0.217 in	5.5 mm	0.63 in	16 mm	Silver	Brass Zinc Alloy	Gasket Washer	M13x0.75	IP67 - Dust Tight Waterproof	Nickel	12	180 °	Cable Clamp

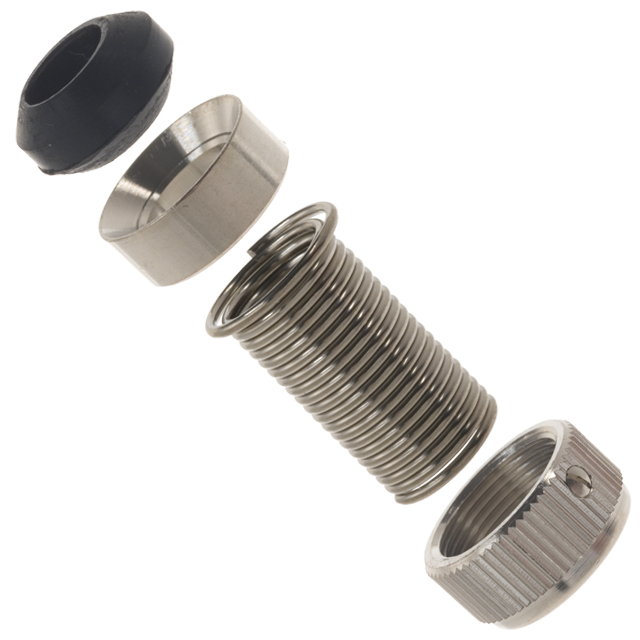

Hirose Electric Co Ltd RM12WBP-CP(7)(71)	RM-W Series Plug	1 Gasket 1 Washer 2 pc Clamp	0.295 in	7.5 mm	0.63 in	16 mm	Silver	Brass Zinc Alloy	Gasket Washer	M13x0.75	IP67 - Dust Tight Waterproof	Nickel	12	180 °	Cable Clamp Internal

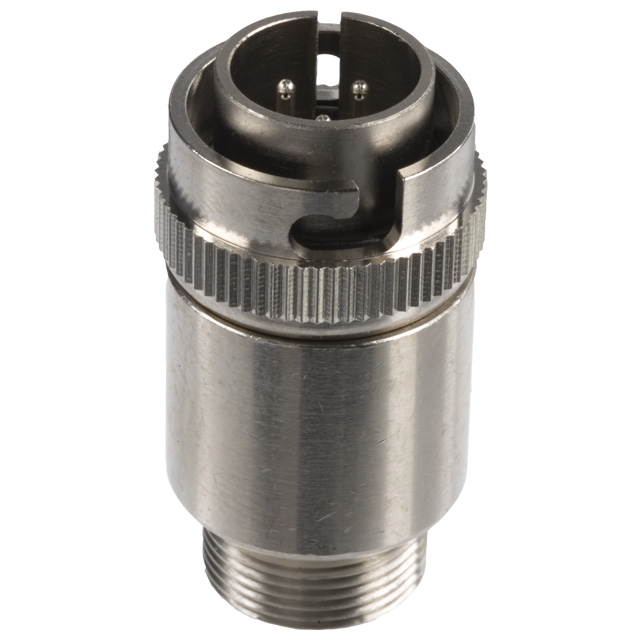

Hirose Electric Co Ltd RM12WBP-3P(71)													12			Keyed	Bayonet Lock	Plug Male Pins	Free Hanging (In-Line)

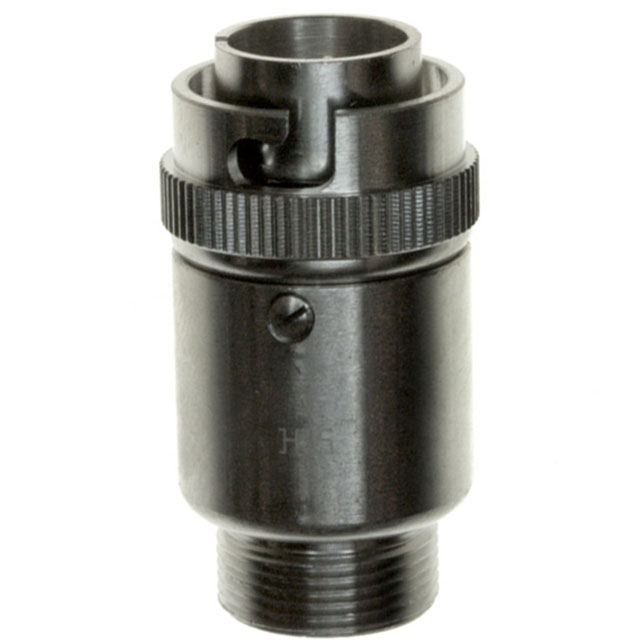

Hirose Electric Co Ltd RM12WBP-5P(71)													12			Keyed	Bayonet Lock	Plug Male Pins	Free Hanging (In-Line)	5

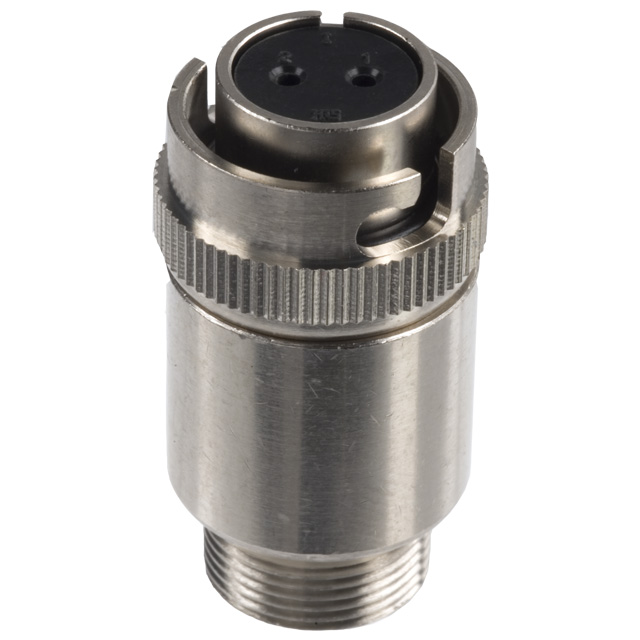

Hirose Electric Co Ltd RM12WBP-2S(71)													12			Keyed	Bayonet Lock	Plug Female Sockets	Free Hanging (In-Line)	2

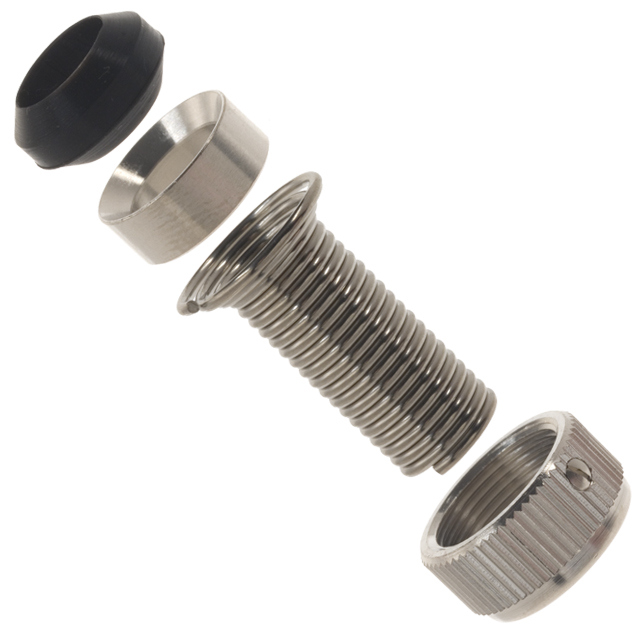

Hirose Electric Co Ltd RM12WBP-CP(6)(71)	RM-W Series Plug	1 Gasket 1 Washer 2 pc Clamp	0.295 in	7.5 mm	0.63 in	16 mm	Silver	Brass Zinc Alloy	Gasket Washer	M13x0.75	IP67 - Dust Tight Waterproof	Nickel	12	180 °	Cable Clamp Internal
