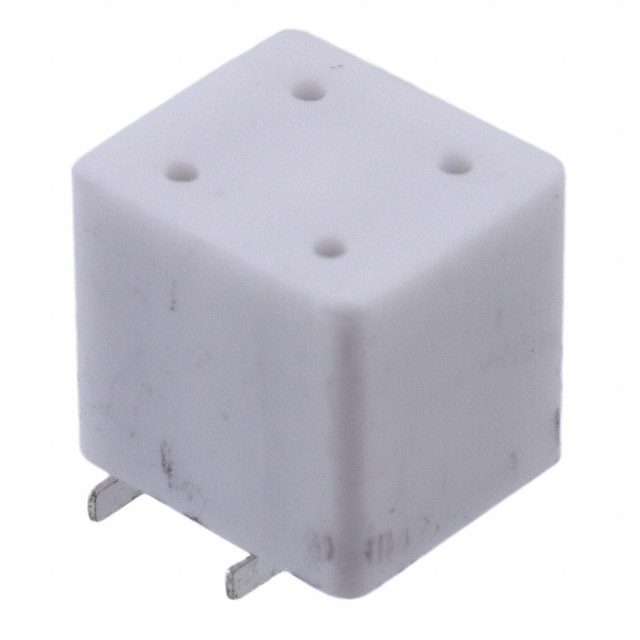

CMF-SD Series

Catalog

PTC RESET FUSE 230V 150MA 4SMD

Part	Operating Temperature [Max]	Operating Temperature [Min]	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Thickness (Max) [Max]	Thickness (Max) [Max]	Current - Trip (It)	Current - Hold (Ih) (Max) [Max]	Current - Max [Max]	Time to Trip	Package / Case	Voltage - Max	Voltage - Max [Max]	Resistance - 25°C (Typ)	Mounting Type	Size / Dimension [y]	Thickness (Max) [Max] [z]	Thickness (Max) [Max] [z]
Bourns Inc. CMF-SDP10A-2	125 °C	-40 C	Ceramic	8.75 mm	0.283 in	0.344 in	7.2 mm	10.2 mm	0.402 "	360 mA	150 mA	1 A	3.8 s	4-SMD Cube	250 V	230 V	10 Ohms	Surface Mount
Bourns Inc. CMF-SD35A-10-2			Ceramic	8.1 mm	0.282 in	0.319 in		8.5 mm	0.335 in	200 mA	100 mA	2.5 A	0.2 s	4-SMD Cube		230 V	35 Ohms	Surface Mount	7.15 mm

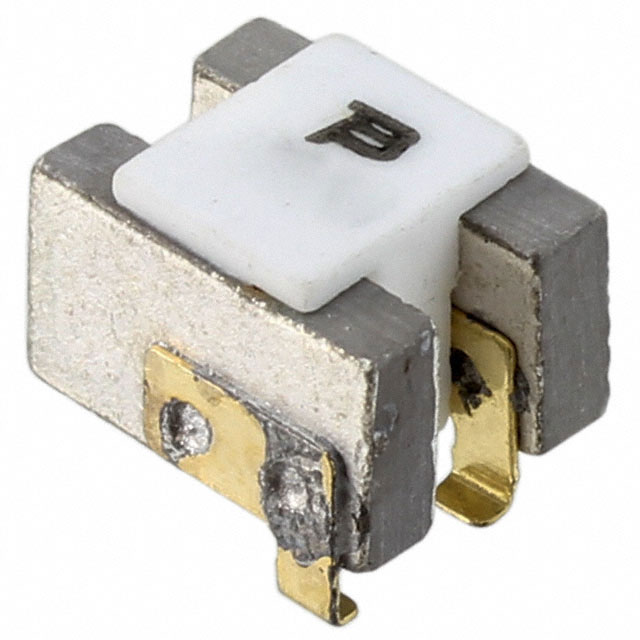

Bourns Inc. CMF-SDV09-2
Bourns Inc. CMF-SDP10-2	125 °C	-40 C	Ceramic	11 mm	0.354 in	0.433 in		11.5 mm	0.453 in	360 mA	180 mA	1 A	3.8 s	4-SMD Cube	250 V	230 V	10 Ohms	Surface Mount	9 mm
Bourns Inc. CMF-SDP75-2	125 °C	-40 C	Ceramic	11 mm	0.354 in	0.433 in		11.5 mm	0.453 in	150 mA	70 mA	2.5 A	120 ms	4-SMD Cube		230 V	75 Ohms	Surface Mount	9 mm
Bourns Inc. CMF-SDP07-2	125 °C	-40 C	Ceramic	11 mm	0.354 in	0.433 in		11.5 mm	0.453 in	200 mA	80 mA	3 A	450 ms	4-SMD Cube	250 V	230 V	7 Ohms	Surface Mount	9 mm
Bourns Inc. CMF-SDP35A-2	125 °C	-40 C	Ceramic	8.75 mm	0.283 in	0.344 in	7.2 mm	10.2 mm	0.402 "		110 mA	2.5 A	0.2 s	4-SMD Cube		230 V	35 Ohms	Surface Mount
Bourns Inc. CMF-SD35-2			Ceramic	0.402 " 10.2 mm						200 mA	100 mA	3 A	0.2 s	4-SMD Cube		230 V	35 Ohms	Surface Mount	0.354 " 9 mm	10.8 mm	0.425 in

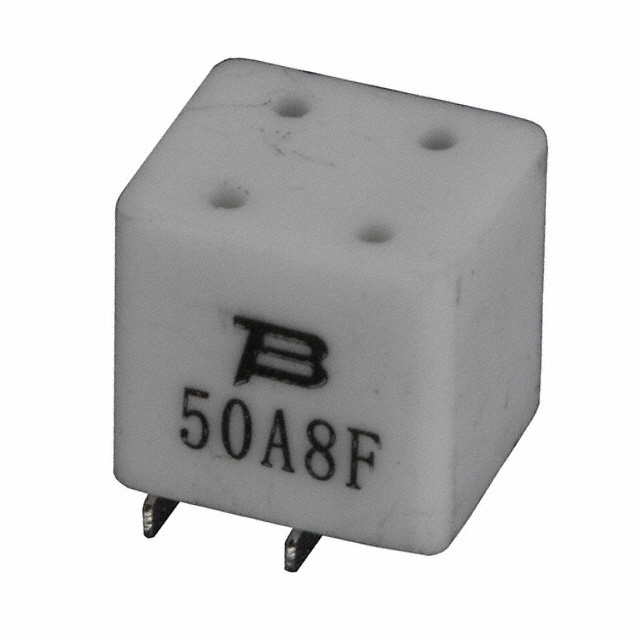

Bourns Inc. CMF-SD50A-10-2			Ceramic	8.1 mm	0.282 in	0.319 in		8.5 mm	0.335 in	190 mA	90 mA	3 A	100 ms	4-SMD Cube		230 V	50 Ohms	Surface Mount	7.15 mm
Bourns Inc. CMF-SDP50-2	125 °C	-40 C	Ceramic	11 mm	0.354 in	0.433 in		11.5 mm	0.453 in	190 mA	90 mA	2.5 A	130 ms	4-SMD Cube		230 V	50 Ohms	Surface Mount	9 mm
