AMEOF30 Series
Manufacturer: aimtec
Beta
⌘K

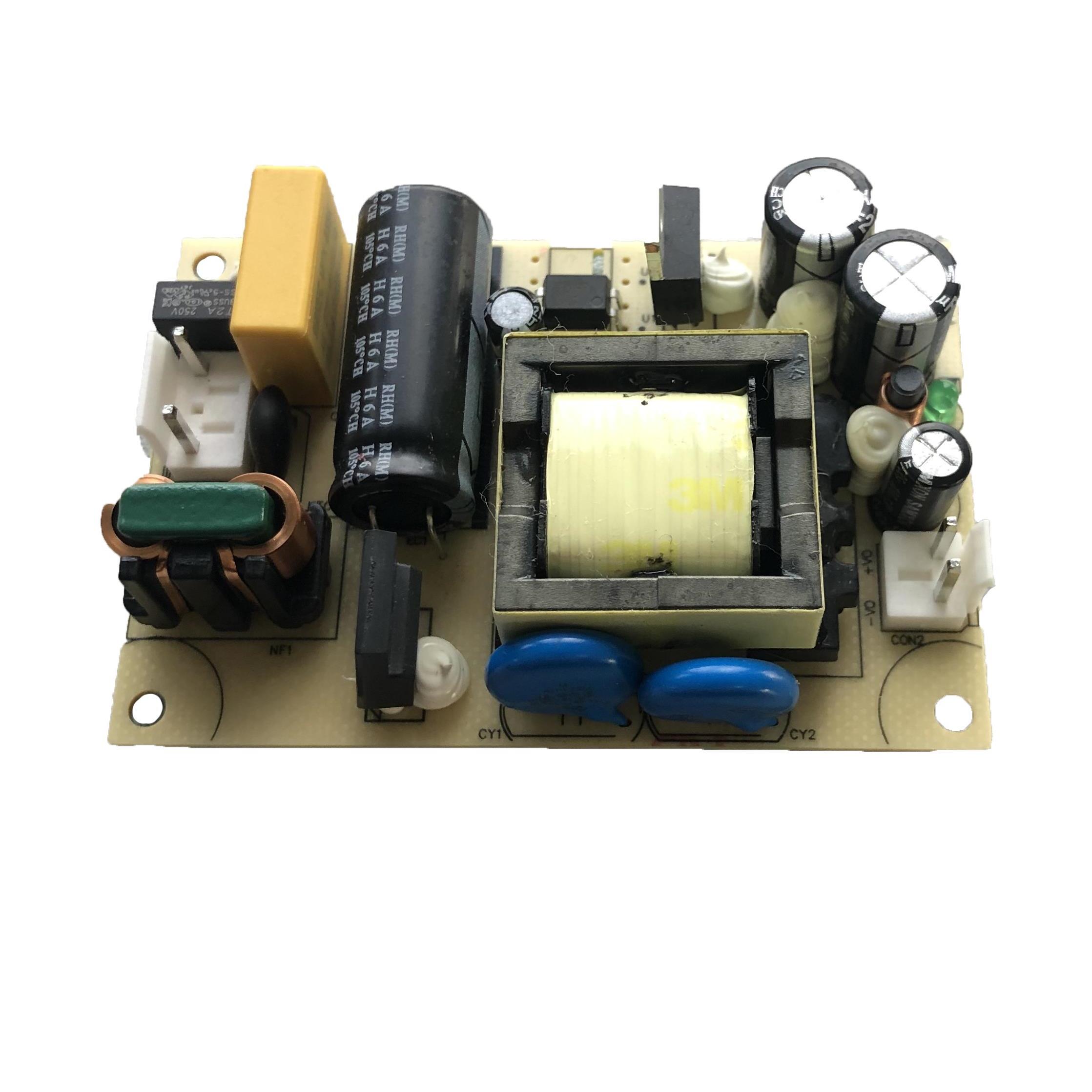

AC/DC CONVERTER 24V 30W
| Part | Type | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Isolation | Approval Agency | Voltage - Output 1 | Mounting Type | Power (Watts) | Current - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Standard Number | Applications | Features | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 aimtec | Open Frame | 85 VAC 100 V | 264 VAC 370 VDC | 3000 V | CE cURus | 24 V | Chassis Mount | 30 Watts | 1.25 A | 70 °C | -25 °C | 87 % | 62368-1 | ITE (Commercial) | Universal Input | 2 in | 1.06 in | 3 " | 27 mm | 50.8 mm | 76.2 mm | 1 |
 aimtec | Open Frame | 85 VAC 100 V | 264 VAC 370 VDC | 3000 V | CE cURus | 3.3 V | Chassis Mount | 4.1 A | 70 °C | -25 °C | 73 % | 62368-1 | ITE (Commercial) | Universal Input | 2 in | 1.06 in | 3 " | 27 mm | 50.8 mm | 76.2 mm | 1 |
