Low Noise Amplifier SMT, 6 - 20 GHz
Key Features
• Noise Figure: 2.5 dB
• Gain: 21 dB
• OIP3: 20 dBm
• Single Supply: +3V @ 53 mA
• 50 Ohm Matched Input/Output
• RoHS Compliant 5x5 mm Package
Description
AI

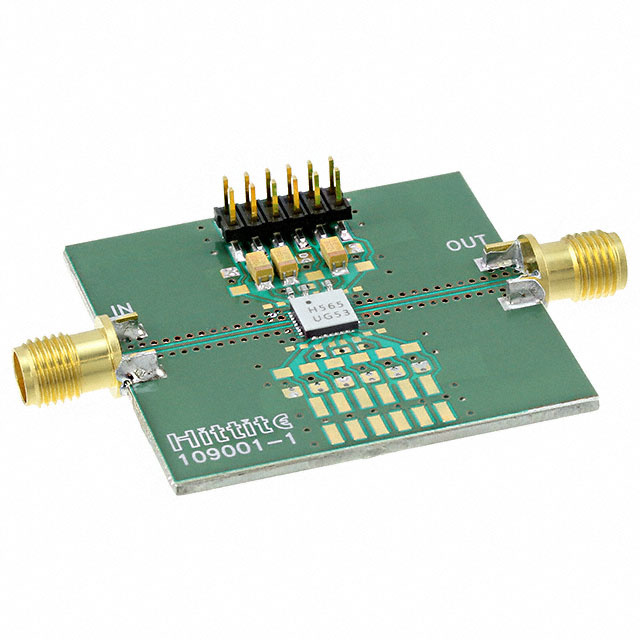

The HMC565LC5 is a high dynamic range GaAs PHEMT MMIC Low Noise Amplifier housed in a leadless RoHS compliant 5x5mm SMT package. Operating from 6 to 20 GHz, the HMC565LC5 features 21 dB of small signal gain, 2.5 dB noise figure and IP3 of +20 dBm across the operating band. This self-biased LNA is ideal for microwave radios due to its single +3V supply operation, and DC blocked RF I/O’s.ApplicationsPoint-to-Point RadiosPoint-to-Multi-Point Radios & VSATTest Equipment and SensorsMilitary & Space
