AM3A Series

Manufacturer: aimtec

Catalog

DC DC CONVERTER +/-12V 3W

Part	Voltage - Input (Min) [Min]	Efficiency	Voltage - Output 2	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Type	Package / Case	Current - Output (Max)	Mounting Type	Voltage - Output 1	Number of Outputs	Voltage - Input (Max) [Max]	Power (Watts)	Applications	Current - Output (Max) [Max]	Current - Output (Max)	Current - Output (Max)	Features	Voltage - Output 1 [Max] [custom]	Voltage - Output 1 [Min] [custom]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]

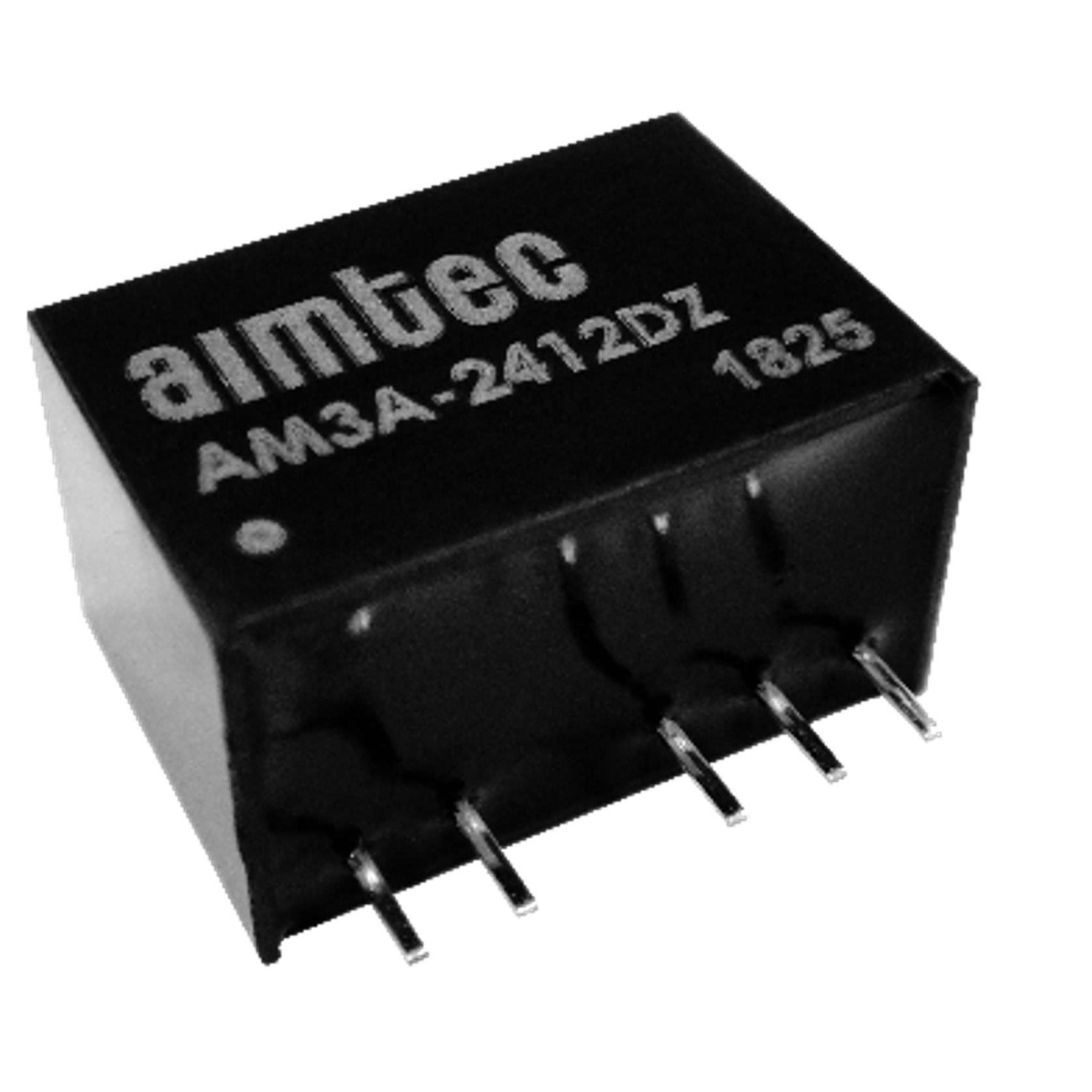

aimtec AM3A-2412DZ	9 V	83 %	-12 V	0.69 in 17.5 mm	0.37 in 9.5 mm	0.48 in 12.2 mm	-40 °C	76 °C	1.6 kV	Isolated Module	6-SIP Module 5 Leads	125 mA	Through Hole	12 V	2	36 V	3 W	ITE (Commercial)
aimtec AM3A-1212DZ	4.5 V		-12 V	0.69 in 17.5 mm	0.37 in 9.5 mm	0.48 in 12.2 mm	-40 °C	76 °C	1.6 kV	Isolated Module	6-SIP Module 5 Leads	125 mA	Through Hole	12 V	2	18 V	3 W	ITE (Commercial)
aimtec AM3A-1212SZ	4.5 V	83 %		0.69 in 17.5 mm	0.37 in 9.5 mm	0.48 in 12.2 mm	-40 °C	76 °C	1.6 kV	Isolated Module	6-SIP Module 5 Leads		Through Hole	12 V	1	18 V	3 W	ITE (Commercial)	250 mA
aimtec AM3A-2405DZ	9 V	81 %	-5 V	0.69 in 17.5 mm	0.37 in 9.5 mm	0.48 in 12.2 mm	-40 °C	76 °C	1.6 kV	Isolated Module	6-SIP Module 5 Leads		Through Hole	5 V	2	36 V	3 W	ITE (Commercial)	0.3 A
aimtec AM3A-1203SZ	4.5 V	75 %		0.69 in 17.5 mm	0.37 in 9.5 mm	0.48 in 12.2 mm	-40 °C	76 °C	1.6 kV	Isolated Module	6-SIP Module 5 Leads		Through Hole	3.3 V	1	18 V	2.3 W	ITE (Commercial)	700 mA
aimtec AM3A-4815DZ	18 V	80 %	-15 V	0.69 in 17.5 mm	0.37 in 9.5 mm	0.48 in 12.2 mm	-40 C	76 °C	1.6 kV	Isolated Module	6-SIP Module		Through Hole		2	75 V	3 W	ITE (Commercial)		100 mA	100 mA	Remote On/Off	15 V	-15 V
aimtec AM3A-4812DZ	18 V	80 %	-12 V	0.69 in 17.5 mm	0.37 in 9.5 mm	0.48 in 12.2 mm	-40 C	76 °C	1.6 kV	Isolated Module	6-SIP Module	125 mA	Through Hole		2	75 V	3 W	ITE (Commercial)				Remote On/Off			-12 V	12 V
aimtec AM3A-2405SZ	9 V			0.69 in 17.5 mm	0.37 in 9.5 mm	0.48 in 12.2 mm	-40 °C	76 °C	1.6 kV	Isolated Module	6-SIP Module 5 Leads		Through Hole	5 V	1	36 V	3 W	ITE (Commercial)	600 mA
aimtec AM3A-4805DZ	18 V	79 %	-5 V	0.69 in 17.5 mm	0.37 in 9.5 mm	0.48 in 12.2 mm	-40 C	76 °C	1.6 kV	Isolated Module	6-SIP Module		Through Hole		2	75 V	3 W	ITE (Commercial)	0.3 A			Remote On/Off			-5 V	5 V
aimtec AM3A-2415SZ	9 V	84 %		0.69 in 17.5 mm	0.37 in 9.5 mm	0.48 in 12.2 mm	-40 °C	76 °C	1.6 kV	Isolated Module	6-SIP Module 5 Leads		Through Hole	15 V	1	36 V	3 W	ITE (Commercial)	200 mA
