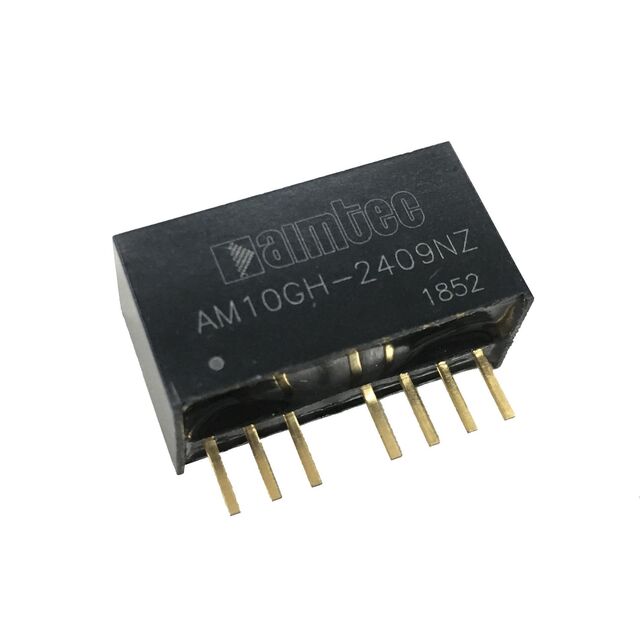

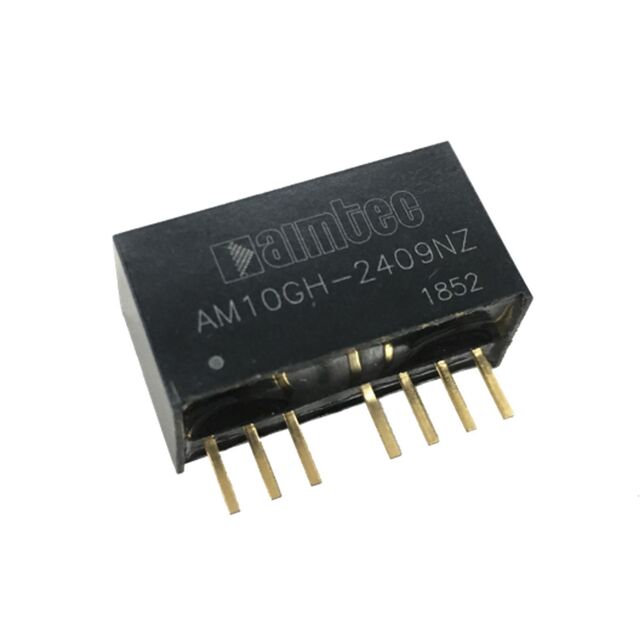

AM10G Series
Manufacturer: aimtec
Beta
⌘K
DC DC CONVERTER 9V 10W
| Part | Voltage - Input (Min) [Min] | Mounting Type | Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Applications | Voltage - Output 1 | Number of Outputs | Package / Case | Efficiency | Current - Output (Max) [Max] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Features | Power (Watts) | Voltage - Isolation | Control Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 aimtec | 18 V | Through Hole | Isolated Module | 85 °C | -40 C | 36 V | ITE (Commercial) | 9 V | 1 | 8-SIP Module | 86 % | 1.11 A | 0.47 " | 9.5 mm | 0.87 in | 12 mm | 0.37 in | 22 mm | Remote On/Off | 10 W | 1.5 kV | |
aimtec | 9 V | Through Hole | Isolated Module | 85 °C | -40 C | 18 V | ITE (Commercial) | 9 V | 1 | 8-SIP Module | 84 % | 1.11 A | 0.47 " | 9.5 mm | 0.87 in | 12 mm | 0.37 in | 22 mm | Remote On/Off | 10 W | 1.5 kV | |
 aimtec | 9 V | Through Hole | Isolated Module | 85 °C | -40 C | 36 V | ITE (Commercial) | 9 V | 1 | 8-SIP Module 7 Leads | 86 % | 1.11 A | 0.47 " | 9.5 mm | 0.87 in | 12 mm | 0.37 in | 22 mm | Remote On/Off | 10 W | 1.5 kV | Active Low Enable |
aimtec | 9 V | Through Hole | Isolated Module | 85 °C | -40 C | 18 V | ITE (Commercial) | 24 V | 1 | 8-SIP Module | 84 % | 420 mA | 0.47 " | 9.5 mm | 0.87 in | 12 mm | 0.37 in | 22 mm | Remote On/Off | 10 W | 1.5 kV | |
aimtec | 9 V | Through Hole | Isolated Module | 85 °C | -40 C | 18 V | ITE (Commercial) | 5 V | 1 | 8-SIP Module | 84 % | 2 A | 0.47 " | 9.5 mm | 0.87 in | 12 mm | 0.37 in | 22 mm | Remote On/Off | 10 W | 1.5 kV |
