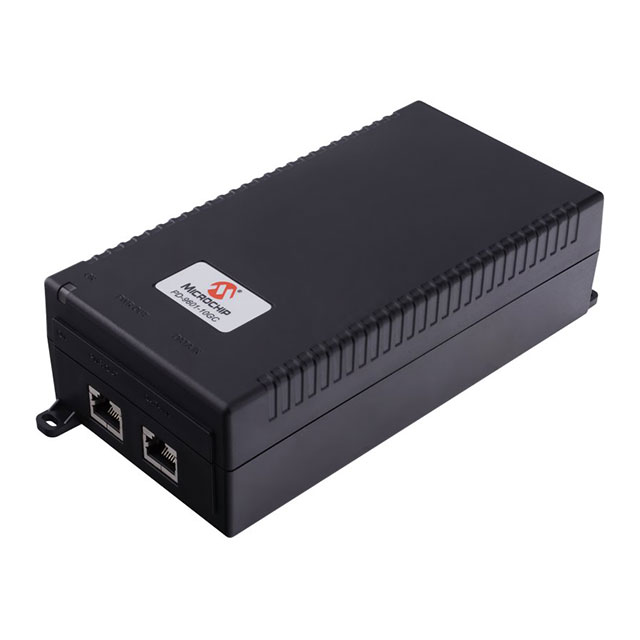

PD-9601-10GC Series

1 port, 90W, IEEE 802.3bt-compliant Multigigabit Indoor PoE midspan

Catalog

1 port, 90W, IEEE 802.3bt-compliant Multigigabit Indoor PoE midspan

Part	Type	Approval Agency	Current - Output	Power (Watts) - Per Port	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Standard Number	Input Connector	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Data Rate	Compliance	Output Connector	Number of Ports

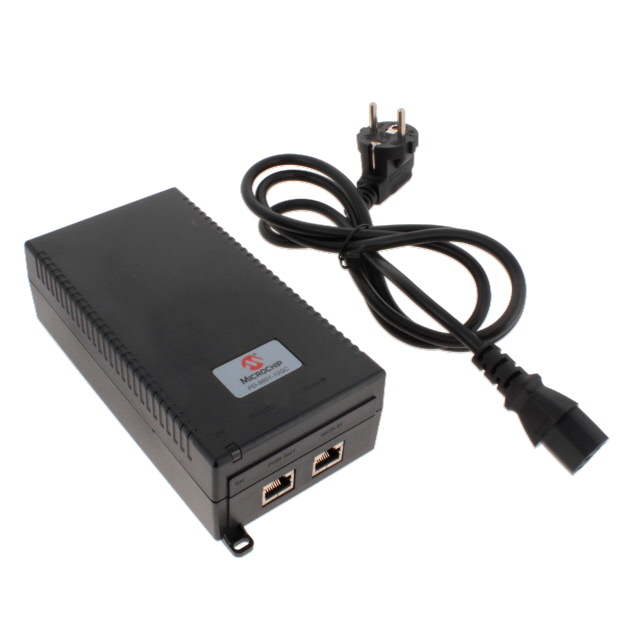

Microchip Technology PD-9601-10GC/AC-EU	Midspan Injector	CE	1.667 A	90 W	54 V	240 VAC	100 VAC	62368-1	RJ45	Desktop	1.91 in	84.3 mm	162.1 mm	3.32 "	48.5 mm	6.38 in	40 °C	10 Mbps 100 Mbps 1000 Mbps	IEEE802.3bt	RJ45	1
Microchip Technology PD-9601-10GC/AC-JP	Midspan Injector	CE	1.667 A	90 W	54 V	240 VAC	100 VAC	62368-1	RJ45	Desktop	1.91 in	84.3 mm	162.1 mm	3.32 "	48.5 mm	6.38 in	40 °C	10 Mbps 100 Mbps 1000 Mbps	IEEE802.3bt	RJ45	1

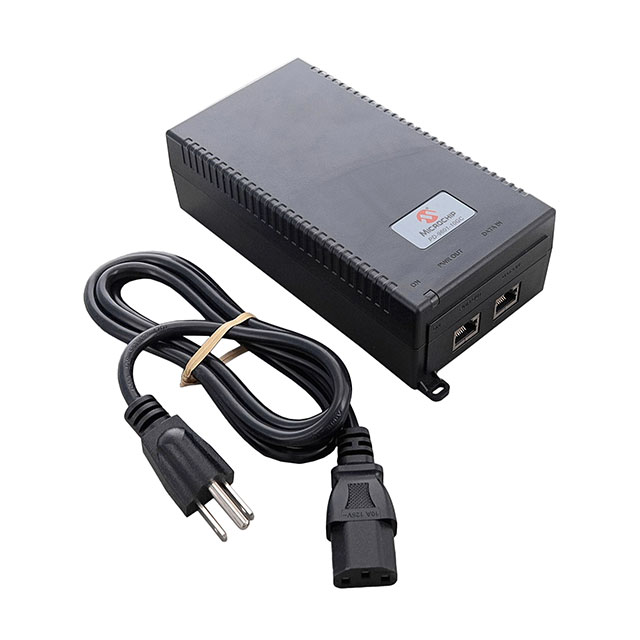

Microchip Technology PD-9601-10GC/AC-US	Midspan Injector	CE	1.667 A	90 W	54 V	240 VAC	100 VAC	62368-1	RJ45	Desktop	1.91 in	84.3 mm	162.1 mm	3.32 "	48.5 mm	6.38 in	40 °C	10 Mbps 100 Mbps 1000 Mbps	IEEE802.3bt	RJ45	1

Catalog

1 port, 90W, IEEE 802.3bt-compliant Multigigabit Indoor PoE midspan

Key Features

- IEEE 802.bt Type 4 compliant

- IEEE 802.3af/at backward compatible

- Legacy PoE support

- Output power of 90W over four pairs

- Supports 10/100/1000 Mbps and 2.5/5/10 Gbps applications

- Plug-and-play installation

- Complies with the latest EMI and safety standards

Description

PD-9601-10GC is an IEEE802.3bt compliant single-port solution for remote powering of high-power applications. With an output power of 90W generated over four pairs, the PD-9601-10GC power PoE-compliant devices, such as IEEE 802.11ax access points, Pan-Tilt-Zoom (PTZ) camera, dome cameras, IP videophones, thin clients and other high-power Ethernet end terminals. The PD-9601-10GC is also backward compatible with any IEEE 802.3af/at terminals, such as VoIP phones, IP cameras and wireless LAN access points. It can power both existing 10/100/1000Base-T network devices and new wireless 10 Gbps devices, such as IEEE 802.11ac access points.
