DRV8836 Series

11-V, 1.5-A dual H-bridge motor driver with phase/enable

Catalog

11-V, 1.5-A dual H-bridge motor driver with phase/enable

Part	Contents	Secondary Attributes	Primary Attributes	Function	Type	Embedded	Supplied Contents	Utilized IC / Part	Mounting Type	Output Configuration	Interface	Motor Type - Stepper	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Voltage - Load [Min]	Voltage - Load [Max]	Applications	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output	Motor Type - AC, DC	Package / Case

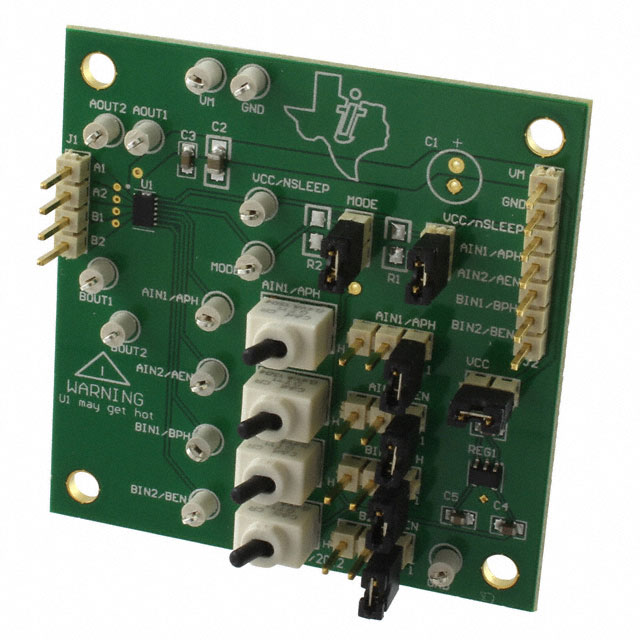

Texas Instruments DRV8836EVM	Board(s)	Short-Circuit Thermal Undervoltage Protection	2 Channel H-Bridge Driver	Motor Controller/Driver	Power Management		Board(s)	DRV8836
Texas Instruments DRV8836DSSR				Driver - Fully Integrated Control and Power Stage					Surface Mount	Half Bridge (4)	Parallel	Bipolar	12-WSON (2x3)	2 V	7 V	2 V	7 V	Battery Powered	Power MOSFET	150 °C	-40 °C	1.5 A	Brushed DC	12-WFDFN Exposed Pad

Catalog

11-V, 1.5-A dual H-bridge motor driver with phase/enable

Key Features

• Dual-H-Bridge Motor DriverCapable of Driving Two DC Motors or One Stepper MotorLow MOSFET On-Resistance:HS + LS 305 mΩ1.5-A Maximum Drive Current Per H-BridgeConfigure Bridges Parallel for 3-A Drive Current2-V to 7-V Operating Supply VoltageFlexible PWM or PHASE/ENABLE InterfaceLow-Power Sleep Mode With 95-nA Maximum Supply CurrentDedicated nSLEEP Input PinTiny 2.00-mm × 3.00-mm WSON PackageAll trademarks are the property of their respective owners. All trademarks are the property of their respective owners.Dual-H-Bridge Motor DriverCapable of Driving Two DC Motors or One Stepper MotorLow MOSFET On-Resistance:HS + LS 305 mΩ1.5-A Maximum Drive Current Per H-BridgeConfigure Bridges Parallel for 3-A Drive Current2-V to 7-V Operating Supply VoltageFlexible PWM or PHASE/ENABLE InterfaceLow-Power Sleep Mode With 95-nA Maximum Supply CurrentDedicated nSLEEP Input PinTiny 2.00-mm × 3.00-mm WSON PackageAll trademarks are the property of their respective owners. All trademarks are the property of their respective owners.

Description

The DRV8836 provides an integrated motor driver solution for cameras, consumer products, toys, and other low-voltage or battery-powered motion control applications. The device has two H-bridge drivers, and can drive two DC motors or one stepper motor, as well as other devices like solenoids. The output driver block for each consists of N-channel power MOSFET configured as an H-bridge to drive the motor winding. An internal charge pump generates gate drive voltages. The DRV8836 supplies up to 1.5-A of output current per H-bridge. It operates on a power supply voltage from 2 V to 7 V. PHASE/ENABLE and IN/IN interfaces can be selected which are compatible with industry-standard devices. A low-power sleep mode is provided which turns off all unnecessary logic to provide a very low current state. Internal shutdown functions are provided for overcurrent protection, short-circuit protection, undervoltage lockout, and overtemperature. The DRV8836 is packaged in a tiny 12-pin WSON package (Eco-friendly: RoHS and no Sb/Br). The DRV8836 provides an integrated motor driver solution for cameras, consumer products, toys, and other low-voltage or battery-powered motion control applications. The device has two H-bridge drivers, and can drive two DC motors or one stepper motor, as well as other devices like solenoids. The output driver block for each consists of N-channel power MOSFET configured as an H-bridge to drive the motor winding. An internal charge pump generates gate drive voltages. The DRV8836 supplies up to 1.5-A of output current per H-bridge. It operates on a power supply voltage from 2 V to 7 V. PHASE/ENABLE and IN/IN interfaces can be selected which are compatible with industry-standard devices. A low-power sleep mode is provided which turns off all unnecessary logic to provide a very low current state. Internal shutdown functions are provided for overcurrent protection, short-circuit protection, undervoltage lockout, and overtemperature. The DRV8836 is packaged in a tiny 12-pin WSON package (Eco-friendly: RoHS and no Sb/Br).
