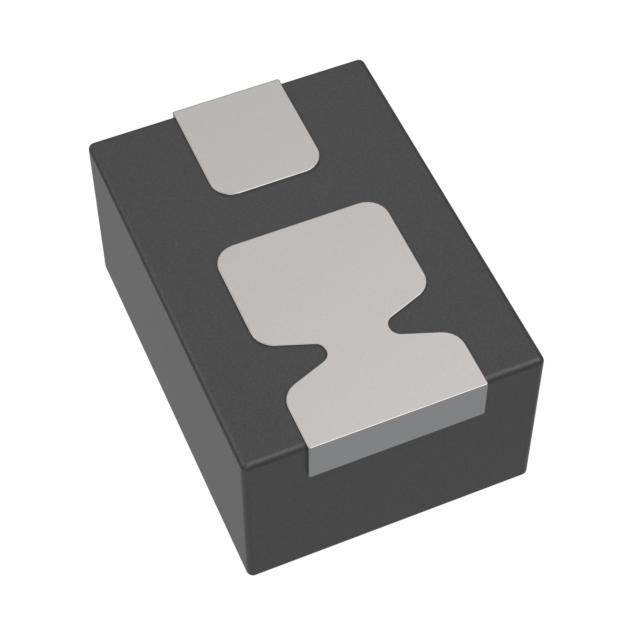

GigaMite-Surface-Mount-PIN
Key Features
• * Low Parasitics
• * LP = 0.5 nH Typical
• * CP = 0.09 pF Typical
• * Surface Mount design
• * Broadband Performance Through 5 Ghz
• * Available on Tape & Reel for Automated Pick & Place Assembly
• * Small, SOD 323 Footprint
• * RoHS Compliant
Description
AI
The GMP4200 series of surface mount diodes are specifically design for high volume surface mount applications. The GigaMite design is optimized for improved electrical and thermal performance over standard plastic package technology. The result is higher frequency coverage and better power handling than comparable plastic packages. Product parameters have been optimized for broadband switching and attenuator applications.
The package parasitics provide smooth non-resonant functionality through 5 GHz. Microsemi utilizes high quality dielectric materials resulting in low loss and broadband performance.
