90584 Series

1.27mm Pitch Picoflex PF-50 IDT Receptacle, Low Profile, Board-in, 16 Circuits

Manufacturer: Molex

Catalog

1.27mm Pitch Picoflex PF-50 IDT Receptacle, Low Profile, Board-in, 16 Circuits

Part	Number of Positions Loaded	Features	Cable Pitch	Cable Pitch	Contact Finish	Cable Termination	Number of Rows [custom]	Row Spacing	Row Spacing	Mounting Type	Board-Side Pitch	Board-Side Pitch	Connector Type	Wire Gauge [Min]	Wire Gauge	Wire Gauge [Max]	Color	Number of Positions	Contact Finish Thickness	Contact Finish Thickness

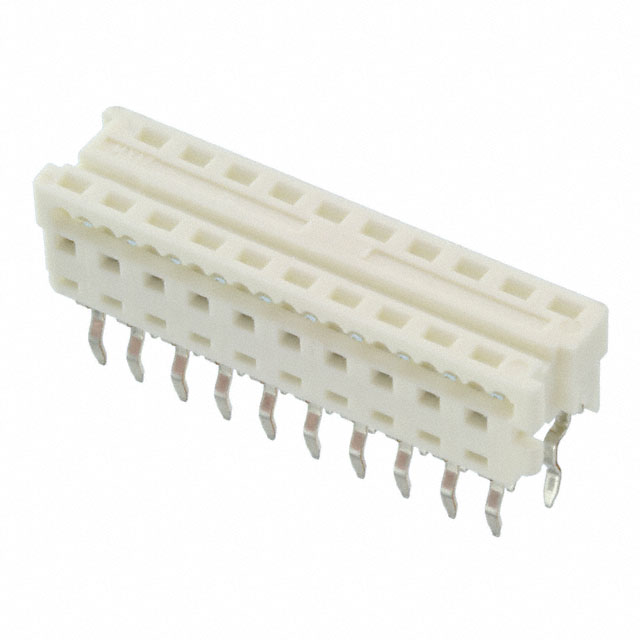

Molex 0905841320	All	Closed End	1.27 mm	0.05 in	Tin	IDC	2	2.54 mm	0.1 "	Press-Fit Through Hole	2.54 mm	0.1 "	DIP Header Ribbon Cable	26 AWG	Stranded	28 AWG	White	20	2.03 Ám	80 Áin
Molex 0905841312	All	Closed End	1.27 mm	0.05 in	Tin	IDC	2	2.54 mm	0.1 "	Press-Fit Through Hole	2.54 mm	0.1 "	DIP Header Ribbon Cable	26 AWG	Stranded	28 AWG	White	12	2.03 Ám	80 Áin

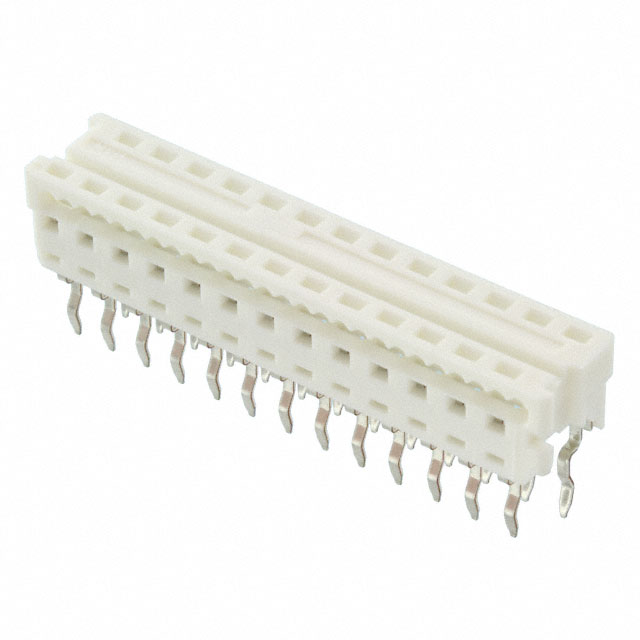

Molex 0905841326	All	Closed End	1.27 mm	0.05 in	Tin	IDC	2	2.54 mm	0.1 "	Press-Fit Through Hole	2.54 mm	0.1 "	DIP Header Ribbon Cable	26 AWG	Stranded	28 AWG	White	26	2.03 Ám	80 Áin

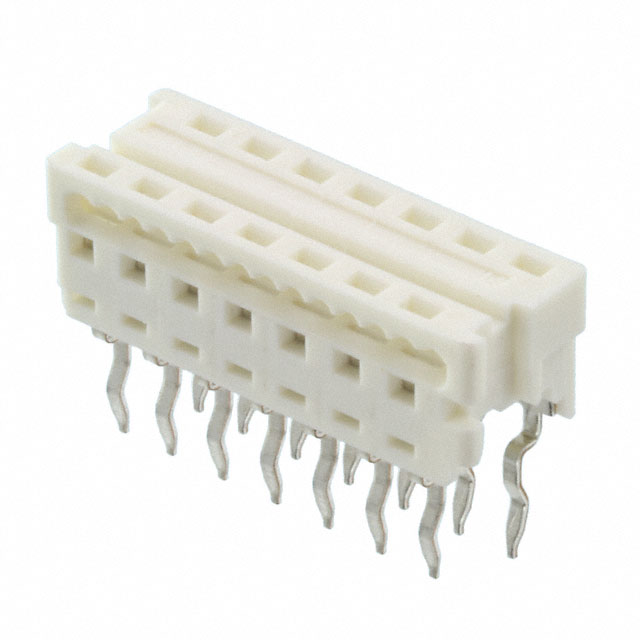

Molex 0905841314	All	Closed End	1.27 mm	0.05 in	Tin	IDC	2	2.54 mm	0.1 "	Press-Fit Through Hole	2.54 mm	0.1 "	DIP Header Ribbon Cable	26 AWG	Stranded	28 AWG	White	14	2.03 Ám	80 Áin

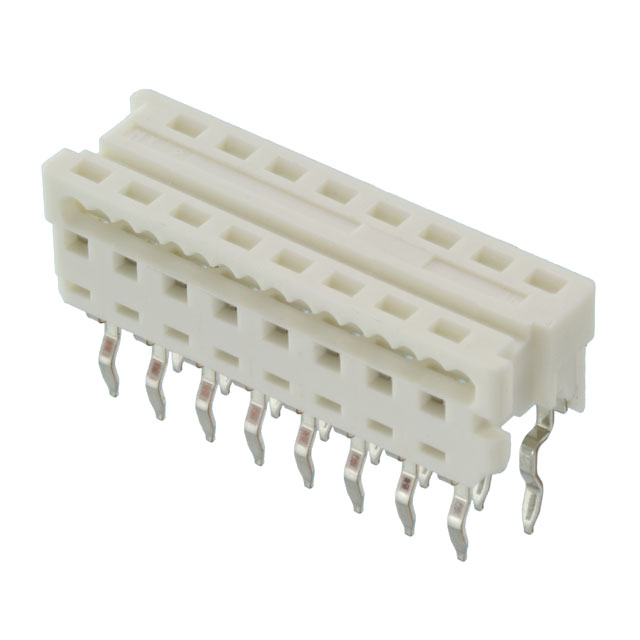

Molex 0905841316	All	Closed End	1.27 mm	0.05 in	Tin	IDC	2	2.54 mm	0.1 "	Press-Fit Through Hole	2.54 mm	0.1 "	DIP Header Ribbon Cable	26 AWG	Stranded	28 AWG	White	16	2.03 Ám	80 Áin

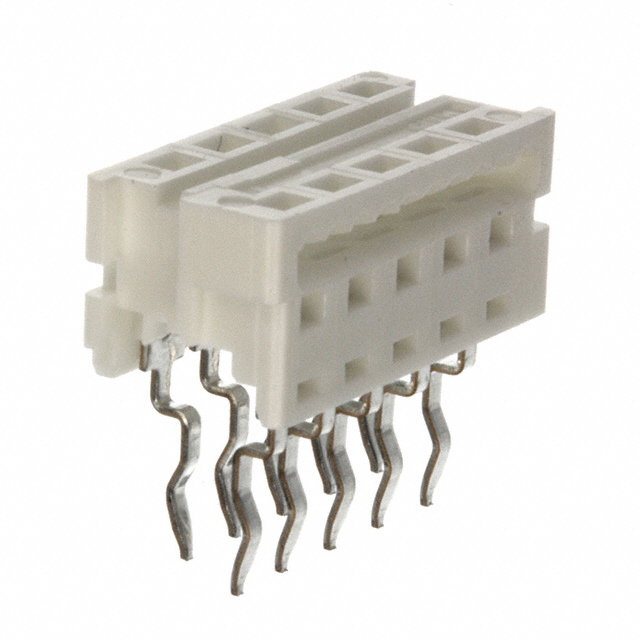

Molex 0905841310	All	Closed End	1.27 mm	0.05 in	Tin	IDC	2	2.54 mm	0.1 "	Press-Fit Through Hole	2.54 mm	0.1 "	DIP Header Ribbon Cable	26 AWG	Stranded	28 AWG	White	10	2.03 Ám	80 Áin

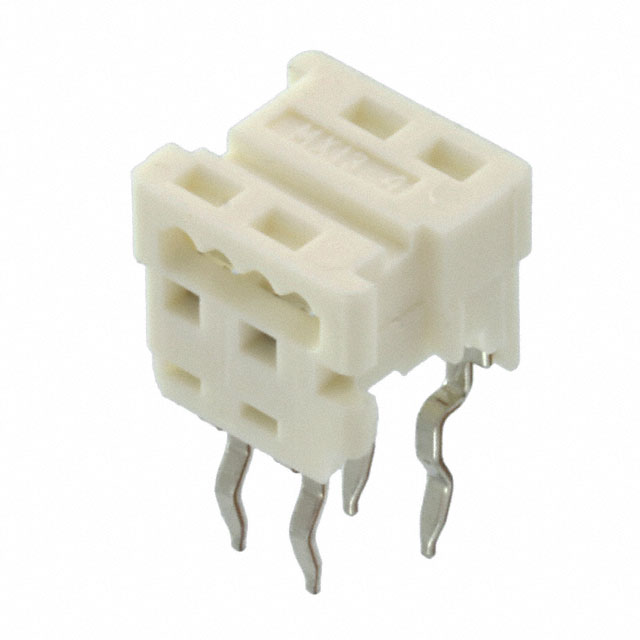

Molex 0905841304	All	Closed End	1.27 mm	0.05 in	Tin	IDC	2	2.54 mm	0.1 "	Press-Fit Through Hole	2.54 mm	0.1 "	DIP Header Ribbon Cable	26 AWG	Stranded	28 AWG	White	4	2.03 Ám	80 Áin

1.27mm Pitch Picoflex PF-50 IDT Receptacle, Low Profile, Board-in, 16 Circuits
