JR21JK Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN JACK FMALE 10P SOLDER CUP
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Color | Shell Material | Connector Type | Voltage Rating | Contact Material | Current Rating (Amps) | Insert Material | Backshell Material, Plating | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Primary Material | Shell Finish | Shell Size - Insert [custom] | Orientation | Cable Opening | Cable Opening | Fastening Type | Features | Shielding | Contact Finish - Mating | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

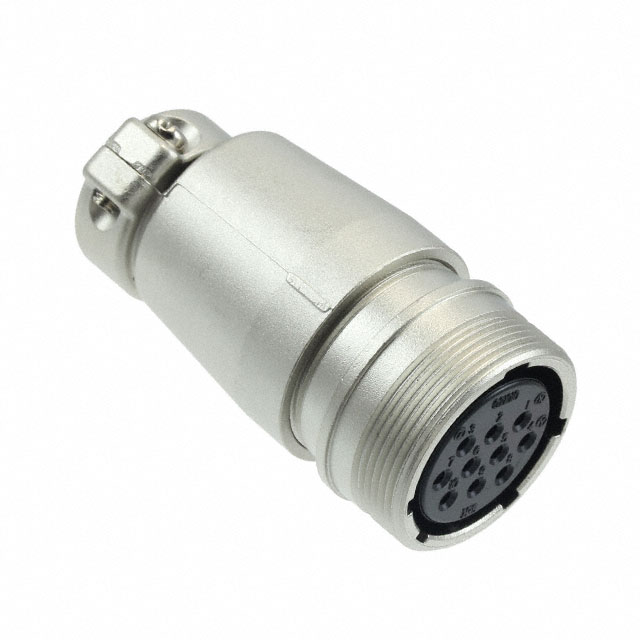

 Hirose Electric Co Ltd | 118.1 µin | 3 µm | UL94 V-0 | Silver | Aluminum Alloy | Jack Female Sockets | 250 VAC 350 VDC | Copper Alloy | 10 A | Phenol Formaldehyde (PF) | Aluminum Alloy Nickel | 85 °C | -25 °C | 10 | Metal | Nickel | 21 | Keyed | 0.591 in | 15 mm | Threaded | Backshell Cable Clamp | Unshielded | Silver | Free Hanging (In-Line) |

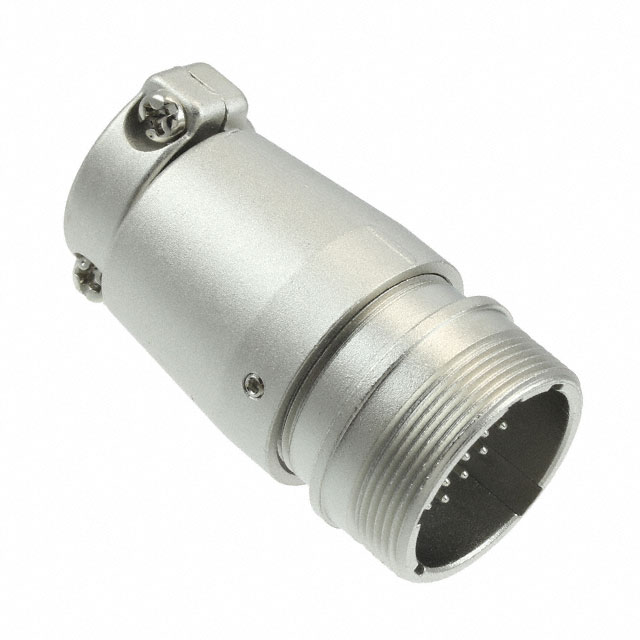

 Hirose Electric Co Ltd | UL94 V-0 | Silver | Aluminum Alloy | Jack Male Pins | 250 VAC 350 VDC | Copper Alloy | 5 A | Phenol Formaldehyde (PF) | Aluminum Alloy Nickel | 85 °C | -25 °C | 16 | Metal | Nickel | 21 | Keyed | 0.591 in | 15 mm | Threaded | Backshell Cable Clamp | Unshielded | Silver | Free Hanging (In-Line) |
