C5886 Series

Catalog

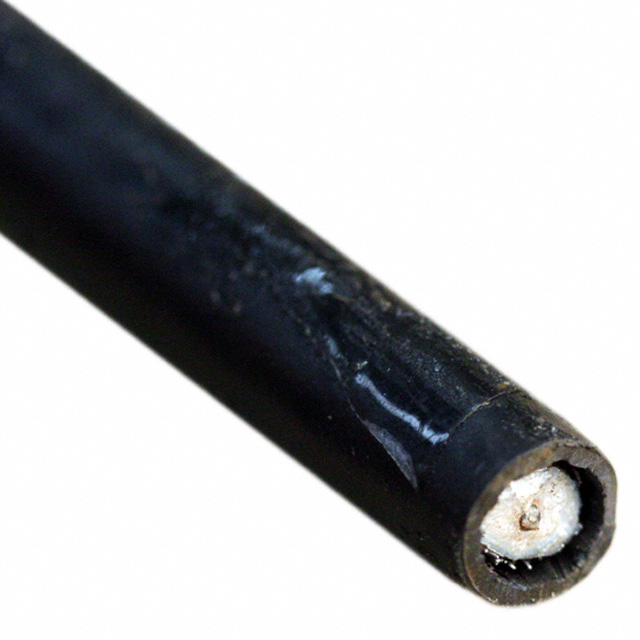

CABLE COAX RISER RG-6 18AWG 500'

Part	Jacket (Insulation) Material	Conductor Strand	Length [x]	Length [x]	Impedance	Usage	Cable Group	Cable Type	Jacket Color	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Shield Material	Shield Coverage [custom]	Dielectric Material	Conductor Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	VoP, Velocity of Propagation	Length	Length
Prysmian Group C5886.38.02	Poly-Vinyl Chloride (PVC)	Solid	152.4 m	500 ft	75 Ohms	CATV	RG-6	Coaxial - Riser	White	Braid Foil	6.68 mm	0.263 "	18 AWG
Prysmian Group C5886.31.01	Poly-Vinyl Chloride (PVC)	Solid	304.8 m	1000 ft	75 Ohms	CATV	RG-6	Coaxial - Riser	Black	Braid Foil	6.68 mm	0.263 "	18 AWG
Prysmian Group C5886.38.02	Poly-Vinyl Chloride (PVC)	Solid	152.4 m	500 ft	75 Ohms	CATV	RG-6	Coaxial - Riser	White	Braid Foil	6.68 mm	0.263 "	18 AWG	Aluminum Flexfoil®	60 % 100 %	Solid Polyethylene (PE)	Copper Coated Steel	0.177 in	4.5 mm	85
Prysmian Group C5886.31.01	Poly-Vinyl Chloride (PVC)	Solid	304.8 m	1000 ft	75 Ohms	CATV	RG-6	Coaxial - Riser	Black	Braid Foil	6.68 mm	0.263 "	18 AWG	Aluminum Flexfoil®	60 % 100 %	Solid Polyethylene (PE)	Copper Coated Steel	0.177 in	4.5 mm	85
Prysmian Group C5886.41.01	Poly-Vinyl Chloride (PVC)	Solid	15.24 m 304.8 m	50 ft 1000 ft	75 Ohms	CATV	RG-6	Coaxial - Riser	Black	Braid Foil	6.68 mm	0.263 "	18 AWG	Aluminum Flexfoil®	60 % 100 %	Solid Polyethylene (PE)	Copper Coated Steel	0.177 in	4.5 mm	85	100 '	30.48 m
Prysmian Group C5886.41.01	Poly-Vinyl Chloride (PVC)	Solid	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	75 Ohms	CATV	RG-6	Coaxial - Riser	Black	Braid Foil	6.68 mm	0.263 "	18 AWG								100 '	30.48 m
