11LC020 Series

Catalog

EEPROM, 2 KBIT, 256K X 8BIT, UNI/O, 100 KHZ, SOIC, 8 PINS

Part	Memory Depth	Memory Width	Package Name	Operating Temperature (Max)	Operating Temperature (Min)	Memory Type	Mounting Type	Memory Size	Write Cycle Time - Word	Write Cycle Time - Page	Memory Format	Memory Interface (Type)	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Technology	Package Length	Package Width	Clock Frequency	Package / Case
Microchip Technology 11LC020-I/SN	256	8 bit	8-SOIC	85 °C	-40 °C	Non-Volatile	Surface Mount	2 Kbit	5 ms	5 ms	EEPROM	Single Wire	2.5 V	5.5 V	EEPROM	0.154 in	3.9 mm	100 kHz
Microchip Technology 11LC020T-I/TT	256	8 bit	SOT-23-3	85 °C	-40 °C	Non-Volatile	Surface Mount	2 Kbit	5 ms	5 ms	EEPROM	Single Wire	2.5 V	5.5 V	EEPROM			100 kHz	SC-59 SOT-23-3 TO-236-3
Microchip Technology 11LC020-E/P	256	8 bit	8-DIP 8-PDIP	125 °C	-40 °C	Non-Volatile	Through Hole	2 Kbit	5 ms	5 ms	EEPROM	Single Wire	2.5 V	5.5 V	EEPROM	0.3 in	7.62 mm	100 kHz
Microchip Technology 11LC020T-E/MS	256	8 bit	8-MSOP 8-TSSOP 8-MSOP	125 °C	-40 °C	Non-Volatile	Surface Mount	2 Kbit	5 ms	5 ms	EEPROM	Single Wire	2.5 V	5.5 V	EEPROM	0.118 in	3 mm	100 kHz
Microchip Technology 11LC020-I/P	256	8 bit	8-DIP 8-PDIP	85 °C	-40 °C	Non-Volatile	Through Hole	2 Kbit	5 ms	5 ms	EEPROM	Single Wire	2.5 V	5.5 V	EEPROM	0.3 in	7.62 mm	100 kHz
Microchip Technology 11LC020-E/SN	256	8 bit	8-SOIC	125 °C	-40 °C	Non-Volatile	Surface Mount	2 Kbit	5 ms	5 ms	EEPROM	Single Wire	2.5 V	5.5 V	EEPROM	0.154 in	3.9 mm	100 kHz

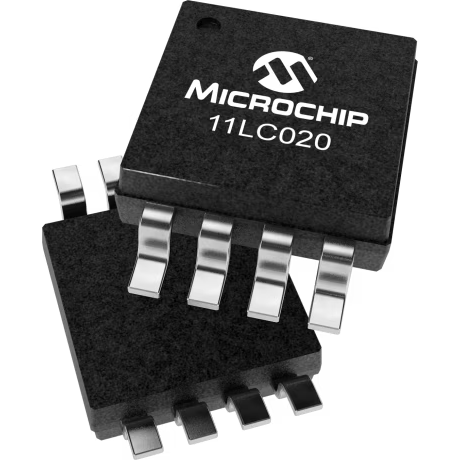

Microchip Technology 11LC020-E/MS	256	8 bit	8-MSOP 8-TSSOP 8-MSOP	125 °C	-40 °C	Non-Volatile	Surface Mount	2 Kbit	5 ms	5 ms	EEPROM	Single Wire	2.5 V	5.5 V	EEPROM	0.118 in	3 mm	100 kHz
Microchip Technology 11LC020T-E/SN	256	8 bit	8-SOIC	125 °C	-40 °C	Non-Volatile	Surface Mount	2 Kbit	5 ms	5 ms	EEPROM	Single Wire	2.5 V	5.5 V	EEPROM	0.154 in	3.9 mm	100 kHz
Microchip Technology 11LC020T-I/MNY	256	8 bit	8-TDFN	85 °C	-40 °C	Non-Volatile	Surface Mount	2 Kbit	5 ms	5 ms	EEPROM	Single Wire	2.5 V	5.5 V	EEPROM	2 mm	3 mm	100 kHz	8-WFDFN Exposed Pad
Microchip Technology 11LC020T-I/SN	256	8 bit	8-SOIC	85 °C	-40 °C	Non-Volatile	Surface Mount	2 Kbit	5 ms	5 ms	EEPROM	Single Wire	2.5 V	5.5 V	EEPROM	0.154 in	3.9 mm	100 kHz
