MQ172X Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN RCPT 4P 0.031 GOLD SMD R/A
| Part | Applications | Contact Material | Insulation Material | Current Rating (Amps) | Number of Rows | Voltage Rating | Number of Positions Loaded | Style | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Insulation Height | Insulation Height | Contact Finish - Mating | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Number of Positions | Connector Type | Fastening Type | Features | Insulation Color | Wire Type | Color | Contact Finish | Cable Termination | Contact Finish Thickness - Post | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | General Purpose Telecommunications | Copper Alloy | Nylon Polyamide (PA) | 0.5A 2A 3A | 1 | 30 VDC 40 VAC | All | Board to Cable/Wire | Right Angle Surface Mount | 75 ░C | -30 ░C | Center Strip Contact | 0.154 in | 3.9 mm | Gold | Solder | 8 µin | 0.203 µm | UL94 V-0 | 0.8 mm | 0.031 in | 4 | Receptacle | Friction Lock | Board Guide Shielded Solder Retention | Black | ||||||
 Hirose Electric Co Ltd | ||||||||||||||||||||||||||||||||

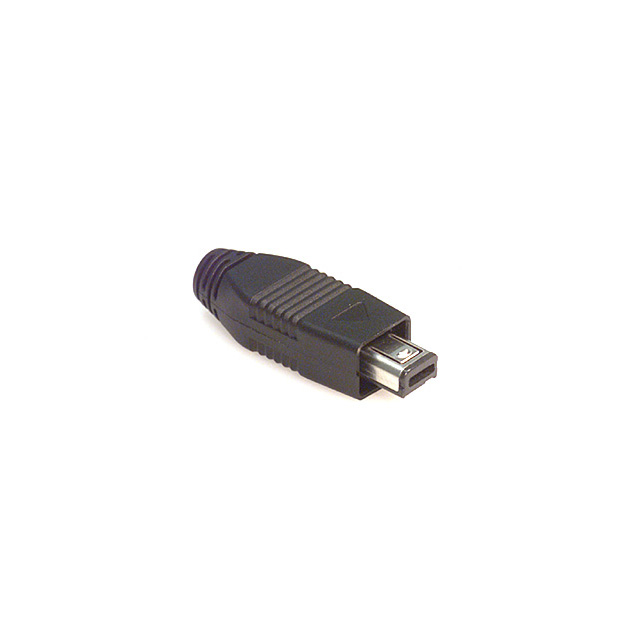

 Hirose Electric Co Ltd | 1 | Free Hanging (In-Line) | Male Pin | 4 | Plug | Shielded | Discrete | Black | Gold | Solder | ||||||||||||||||||||||
Hirose Electric Co Ltd | General Purpose Telecommunications | Copper Alloy | Nylon Polyamide (PA) | 0.5A 2A 3A | 1 | 30 VDC 40 VAC | All | Board to Cable/Wire | Right Angle Surface Mount | 75 ░C | -30 ░C | Center Strip Contact | 0.154 in | 3.9 mm | Gold | Solder | 8 µin | 0.203 µm | UL94 V-0 | 0.8 mm | 0.031 in | 4 | Receptacle | Friction Lock | Board Guide Shielded Solder Retention | Black | Flash | Gold | ||||
Hirose Electric Co Ltd | General Purpose Telecommunications | Copper Alloy | Nylon Polyamide (PA) | 0.5A 2A 3A | 1 | 30 VDC 40 VAC | All | Board to Cable/Wire | Right Angle Surface Mount | 75 ░C | -30 ░C | Center Strip Contact | 0.154 in | 3.9 mm | Gold | Solder | 8 µin | 0.203 µm | UL94 V-0 | 0.8 mm | 0.031 in | 4 | Receptacle | Friction Lock | Board Guide Shielded Solder Retention | Black | ||||||
Hirose Electric Co Ltd | General Purpose Telecommunications | Copper Alloy | Nylon Polyamide (PA) | 0.5A 2A 3A | 1 | 30 VDC 40 VAC | All | Board to Cable/Wire | Right Angle Surface Mount | 75 ░C | -30 ░C | Center Strip Contact | 0.154 in | 3.9 mm | Gold | Solder | 8 µin | 0.203 µm | UL94 V-0 | 0.8 mm | 0.031 in | 4 | Receptacle | Friction Lock | Board Guide Shielded Solder Retention | Black |
