L99UDL01 Series

L99UDL01 Evaluation board

Catalog

L99UDL01 Evaluation board

Part	Operating Temperature [Max]	Operating Temperature [Min]	Qualification	Package / Case	Grade	Fault Protection	Voltage - Supply [Max]	Voltage - Supply [Min]	Load Type	Technology	Features	Voltage - Load [Max]	Voltage - Load [Min]	Output Configuration	Mounting Type	Supplier Device Package	Interface	Rds On (Typ)	Applications	Supplied Contents	Contents	Function	Type	Utilized IC / Part
STMicroelectronics L99UDL01TR	175 °C	-40 °C	AEC-Q100	64-TQFP Exposed Pad	Automotive	Over Current Over Temperature	18 V	6 V	Capacitive and Resistive	MOSFET (Metal Oxide)	Charge Pump Status Flag	18 V	6 V	Half Bridge	Surface Mount	64-TQFP (10x10)	Logic PWM SPI	90 mOhm	General Purpose
STMicroelectronics EVAL-L99UDL01																				Board(s)	Board(s)	Motor Controller/Driver	Power Management	L99UDL01
STMicroelectronics L99UDL01	175 °C	-40 °C	AEC-Q100	64-TQFP Exposed Pad	Automotive	Over Current Over Temperature	18 V	6 V	Capacitive and Resistive	MOSFET (Metal Oxide)	Charge Pump Status Flag	18 V	6 V	Half Bridge	Surface Mount	64-TQFP (10x10)	Logic PWM SPI	90 mOhm	General Purpose

Catalog

L99UDL01 Evaluation board

Description

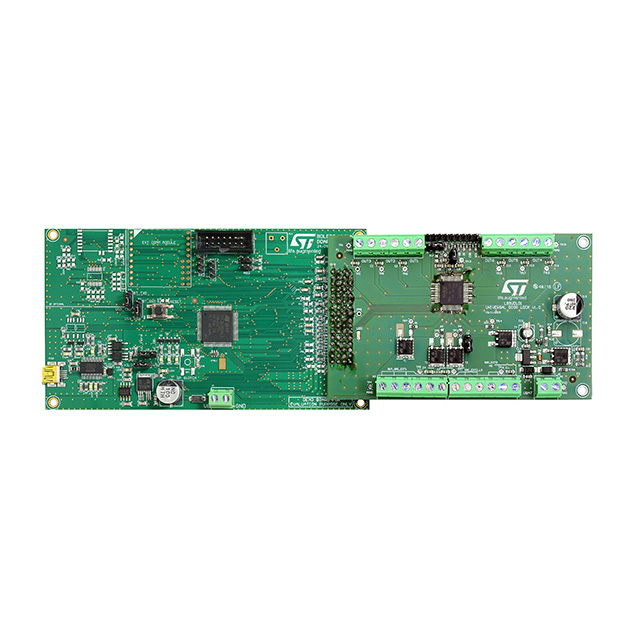

The EVAL-L99UDL01 evaluation board is designed to demonstrate the centralized control of all the locks available in a car by means of the L99UDL01 device. The board is composed by a motherboard and a daughterboard. The motherboard, which is based on the SPC560B54 microcontroller, provides the logic section for monitoring and driving the L99UDL01 device assembled on the daughterboard. With the aim of facilitating the use and configuration of the board, STMicroelectronics provides a dedicated user-friendly software with a graphic user interface (GUI). This GUI enables the user to set the L99UDL01 control parameters and at the same time shows real time diagnostics information as current output and battery voltage monitoring.
