HIF6B Series

Catalog

CONN RCPT 34POS 0.05 GOLD PCB

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Insulation Material	Applications	Contact Material	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Current Rating (Amps)	Voltage Rating	Contact Finish - Mating	Number of Positions [custom]	Insulation Height [z]	Insulation Height [z]	Contact Finish - Post	Mated Stacking Heights	Features	Number of Rows [custom]	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Positions Loaded	Termination	Contact Length - Post	Contact Length - Post	Style	Material Flammability Rating	Number of Positions	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Shrouding
Hirose Electric Co Ltd HIF6B-34DA-1.27DSA(71)	78.7 µin	2 µm	Polybutylene Terephthalate (PBT)	General Purpose	Copper Alloy	Square	0.1 in	2.54 mm	Receptacle	Black	1.27 mm	0.05 in	8 µin	0.203 µm	Through Hole	0.5 A	125 VAC	Gold	34	8.8 mm	0.346 in	Tin	14.8 mm	Mounting Flange Polarizing Key	2	Push-Pull	-55 C	85 °C	Female Socket	All	Solder	0.118 in	3 mm	Board to Board Cable	UL94 V-0
Hirose Electric Co Ltd HIF6B-26DA-1.27DSAL(71)	78.7 µin	2 µm	Polybutylene Terephthalate (PBT)	General Purpose	Copper Alloy	Square	0.1 in	2.54 mm	Receptacle	Black	1.27 mm	0.05 in	8 µin	0.203 µm	Through Hole	0.5 A	125 VAC	Gold		8.8 mm	0.346 in	Tin	14.8 mm	Board Lock Mounting Flange Polarizing Key	2	Push-Pull	-55 C	85 °C	Female Socket	All	Solder	0.118 in	3 mm	Board to Board Cable	UL94 V-0	26
Hirose Electric Co Ltd HIF6B-60PA-1.27DS(71)	78.7 µin	2 µm	Polybutylene Terephthalate (PBT)		Brass	Square	0.1 in	2.54 mm	Header	Black	1.27 mm	0.05 in	8 µin	0.203 µm	Right Angle Through Hole	0.5 A	300 VDC	Gold				Tin			2	Push-Pull	-55 C	85 °C	Male Pin	All	Solder				UL94 V-0	60	0.205 in	5.21 mm	0.335 "	8.51 mm	Shrouded - 4 Wall
Hirose Electric Co Ltd HIF6B-80PA-1.27DS(71)	78.7 µin	2 µm	Polybutylene Terephthalate (PBT)		Brass	Square	0.1 in	2.54 mm	Header	Black	1.27 mm	0.05 in	8 µin	0.203 µm	Right Angle Through Hole	0.5 A	300 VDC	Gold				Tin			2	Push-Pull	-55 C	85 °C	Male Pin	All	Solder				UL94 V-0	80	0.205 in	5.21 mm	0.335 "	8.51 mm	Shrouded - 4 Wall
Hirose Electric Co Ltd HIF6B-60PA-1.27DSL(71)	78.7 µin	2 µm	Polybutylene Terephthalate (PBT)		Brass	Square	0.1 in	2.54 mm	Header	Black	1.27 mm	0.05 in	8 µin	0.203 µm	Right Angle Through Hole	0.5 A	300 VDC	Gold				Tin		Board Lock	2	Push-Pull	-55 C	85 °C	Male Pin	All	Solder				UL94 V-0	60	0.205 in	5.21 mm	0.335 "	8.51 mm	Shrouded - 4 Wall
Hirose Electric Co Ltd HIF6B-80DA-1.27DSA(71)	78.7 µin	2 µm	Polybutylene Terephthalate (PBT)	General Purpose	Copper Alloy	Square	0.1 in	2.54 mm	Receptacle	Black	1.27 mm	0.05 in	8 µin	0.203 µm	Through Hole	0.5 A	125 VAC	Gold		8.8 mm	0.346 in	Tin	14.8 mm	Mounting Flange Polarizing Key	2	Push-Pull	-55 C	85 °C	Female Socket	All	Solder	0.118 in	3 mm	Board to Board Cable	UL94 V-0	80
Hirose Electric Co Ltd HIF6B-40DA-1.27DSA(71)	78.7 µin	2 µm	Polybutylene Terephthalate (PBT)	General Purpose	Copper Alloy	Square	0.1 in	2.54 mm	Receptacle	Black	1.27 mm	0.05 in	8 µin	0.203 µm	Through Hole	0.5 A	125 VAC	Gold		8.8 mm	0.346 in	Tin	14.8 mm	Mounting Flange Polarizing Key	2	Push-Pull	-55 C	85 °C	Female Socket	All	Solder	0.118 in	3 mm	Board to Board Cable	UL94 V-0	40
Hirose Electric Co Ltd HIF6B-80DA-1.27DS(71)			Polybutylene Terephthalate (PBT)	General Purpose	Copper Alloy	Square	0.1 in	2.54 mm	Receptacle	Black	1.27 mm	0.05 in	8 µin	0.203 µm	Right Angle Through Hole	0.5 A	125 VAC	Gold						Mounting Flange Polarizing Key	2	Push-Pull	-55 C	85 °C	Female Socket	All	Solder	0.118 in	3 mm	Board to Board Cable	UL94 V-0	80			0.335 "	8.51 mm

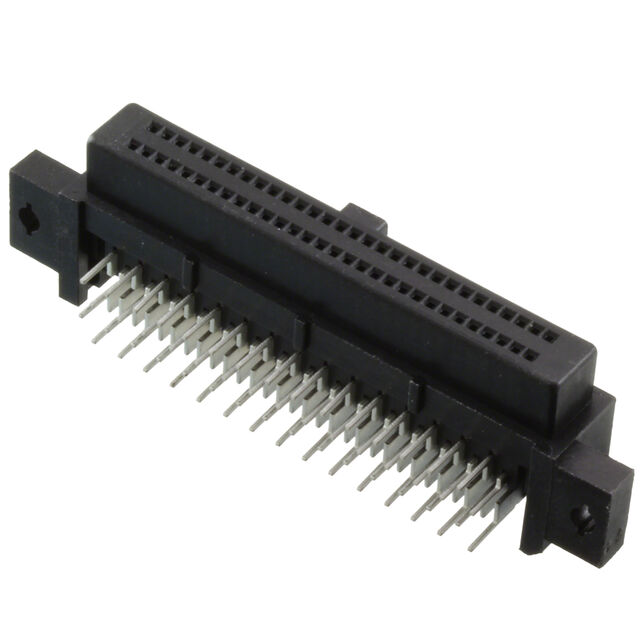

Hirose Electric Co Ltd HIF6B-60DA-1.27DS(71)			Polybutylene Terephthalate (PBT)	General Purpose	Copper Alloy	Square	0.1 in	2.54 mm	Receptacle	Black	1.27 mm	0.05 in	8 µin	0.203 µm	Right Angle Through Hole	0.5 A	125 VAC	Gold						Mounting Flange Polarizing Key	2	Push-Pull	-55 C	85 °C	Female Socket	All	Solder	0.118 in	3 mm	Board to Board Cable	UL94 V-0	60			0.335 "	8.51 mm

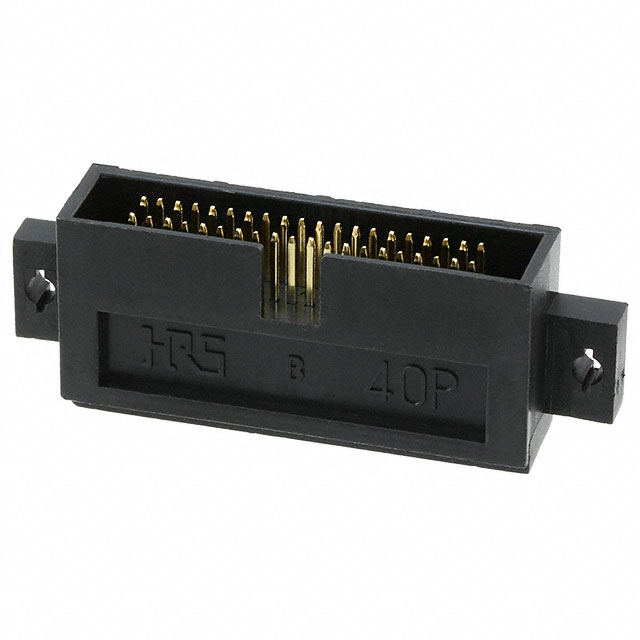

Hirose Electric Co Ltd HIF6B-40PA-1.27DS(71)	78.7 µin	2 µm	Polybutylene Terephthalate (PBT)		Brass	Square	0.1 in	2.54 mm	Header	Black	1.27 mm	0.05 in	8 µin	0.203 µm	Right Angle Through Hole	0.5 A	300 VDC	Gold				Tin			2	Push-Pull	-55 C	85 °C	Male Pin	All	Solder				UL94 V-0	40	0.205 in	5.21 mm	0.335 "	8.51 mm	Shrouded - 4 Wall
