REG711-25 Series

50mA Switched-Cap DC/DC Converter

Catalog

50mA Switched-Cap DC/DC Converter

Part	Voltage - Output	Outputs and Type	Outputs and Type	Frequency - Switching	Voltage - Input [Min]	Voltage - Input [Max]	Regulator Topology	Board Type	Supplied Contents	Current - Output	Main Purpose	Utilized IC / Part	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Package / Case	Package / Case [custom]	Package / Case	Function	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Output Type	Mounting Type	Number of Outputs

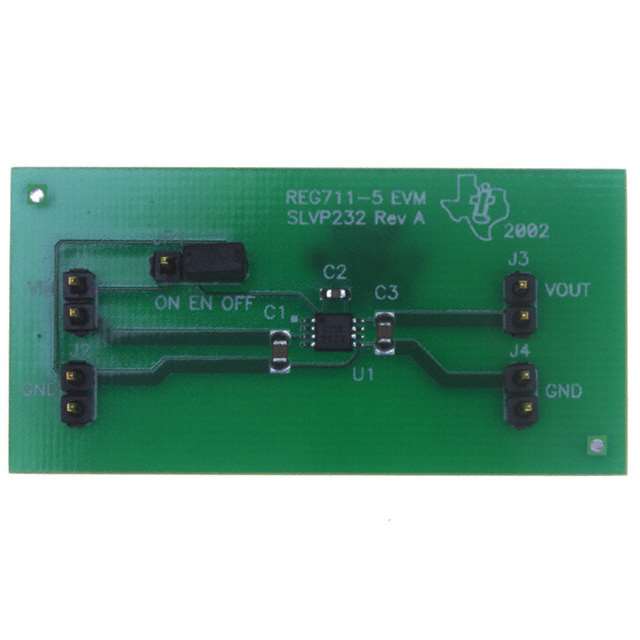

Texas Instruments REG711EVM-232	5 V	Non-Isolated	1	1 MHz	2.7 V	5.5 V	Buck-Boost	Fully Populated	Board(s)	50 mA	DC/DC Step Up or Down	REG711
Texas Instruments REG711EA-3.3/250				1 MHz						50 mA			Positive	85 °C	-40 °C	1.8 V	8-MSOP 8-TSSOP	0.118 in	3 mm	Step-Up/Step-Down	5.5 V	3.3 V	1.81 mOhm	Surface Mount	1
Texas Instruments REG711EA-5/250				1 MHz						50 mA			Positive	85 °C	-40 °C	2.7 V	8-MSOP 8-TSSOP	0.118 in	3 mm	Step-Up/Step-Down	5.5 V	5 V	1.81 mOhm	Surface Mount	1
Texas Instruments REG711EA-3.3/2K5				1 MHz						50 mA			Positive	85 °C	-40 °C	1.8 V	8-MSOP 8-TSSOP	0.118 in	3 mm	Step-Up/Step-Down	5.5 V	3.3 V	1.81 mOhm	Surface Mount	1
Texas Instruments REG711EA-3/2K5				1 MHz						50 mA			Positive	85 °C	-40 °C	1.8 V	8-MSOP 8-TSSOP	0.118 in	3 mm	Step-Up/Step-Down	5.5 V		1.81 mOhm	Surface Mount	1
Texas Instruments REG711EA-2.5/250				1 MHz						50 mA			Positive	85 °C	-40 °C	1.8 V	8-MSOP 8-TSSOP	0.118 in	3 mm	Step-Up/Step-Down	5.5 V	2.5 V	1.81 mOhm	Surface Mount	1
Texas Instruments REG711EA27250G4				1 MHz						50 mA			Positive	85 °C	-40 °C	1.8 V	8-MSOP 8-TSSOP	0.118 in	3 mm	Step-Up/Step-Down	5.5 V	2.7 V	1.81 mOhm	Surface Mount	1
Texas Instruments REG711EA-5/2K5				1 MHz						50 mA			Positive	85 °C	-40 °C	2.7 V	8-MSOP 8-TSSOP	0.118 in	3 mm	Step-Up/Step-Down	5.5 V	5 V	1.81 mOhm	Surface Mount	1
Texas Instruments REG711EA332K5G4				1 MHz						50 mA			Positive	85 °C	-40 °C	1.8 V	8-MSOP 8-TSSOP	0.118 in	3 mm	Step-Up/Step-Down	5.5 V	3.3 V	1.81 mOhm	Surface Mount	1
Texas Instruments REG711EA-3/250				1 MHz						50 mA			Positive	85 °C	-40 °C	1.8 V	8-MSOP 8-TSSOP	0.118 in	3 mm	Step-Up/Step-Down	5.5 V		1.81 mOhm	Surface Mount	1

Catalog

50mA Switched-Cap DC/DC Converter

Key Features

• WIDE INPUT RANGE: 1.8V TO 5.5V5V VERSION: 2.7V TO 5.5VAUTOMATIC STEP-UP/STEP-DOWN OPERATIONLOW INPUT CURRENT RIPPLELOW OUTPUT VOLTAGE RIPPLEMINIMUM NUMBER OF EXTERNAL COMPONENTS\x97NO INDUCTORS1MHz INTERNAL OSCILLATOR ALLOWS SMALL CAPACITORS"SHUTDOWN" MODETHERMAL AND CURRENT LIMIT PROTECTIONFIVE OUTPUT VOLTAGES AVAILABLE:5.0V, 3.3V, 3.0V, 2.7V, 2.5VTHIN, SMALL PACKAGE: MSOP-8APPLICATIONSSMART CARD READERSCELLULAR PHONESSIM CARD SUPPLIESPORTABLE COMMUNICATION DEVICESPERSONAL DIGITAL ASSISTANTSMODEMSNOTEBOOK AND PALM-TOP COMPUTERSELECTRONIC GAMESHANDHELD METERSPCMCIA CARDSCARD BUSESLCD DISPLAYSWIDE INPUT RANGE: 1.8V TO 5.5V5V VERSION: 2.7V TO 5.5VAUTOMATIC STEP-UP/STEP-DOWN OPERATIONLOW INPUT CURRENT RIPPLELOW OUTPUT VOLTAGE RIPPLEMINIMUM NUMBER OF EXTERNAL COMPONENTS\x97NO INDUCTORS1MHz INTERNAL OSCILLATOR ALLOWS SMALL CAPACITORS"SHUTDOWN" MODETHERMAL AND CURRENT LIMIT PROTECTIONFIVE OUTPUT VOLTAGES AVAILABLE:5.0V, 3.3V, 3.0V, 2.7V, 2.5VTHIN, SMALL PACKAGE: MSOP-8APPLICATIONSSMART CARD READERSCELLULAR PHONESSIM CARD SUPPLIESPORTABLE COMMUNICATION DEVICESPERSONAL DIGITAL ASSISTANTSMODEMSNOTEBOOK AND PALM-TOP COMPUTERSELECTRONIC GAMESHANDHELD METERSPCMCIA CARDSCARD BUSESLCD DISPLAYS

Description

The REG711 is a switched capacitor voltage converter, which produces a regulated, low ripple output voltage from an unregulated input voltage. A wide input supply voltage of 1.8V to 5.5V makes the REG711 ideal for a variety of battery sources, such as single cell Li-Ion, or two and three cell Nickel or Alkaline based chemistries. The input voltage may vary above and below the output voltage and the output will remain in regulation. It works equally well for step up or down without the need for an inductor, providing low EMI DC/DC conversion. The high switching frequency allows the use of small surface-mount capacitors, saving board space and reducing cost. The REG711 is thermally protected and current limited, protecting the load and the regulator during fault conditions. Typical ground pin current (quiescent current) is 1mA at full load, 60uA with no load, and less than 1uA in shutdown mode. This regulator comes in a thin MSOP-8 package with a component height of less than 1.1mm. The REG711 is a switched capacitor voltage converter, which produces a regulated, low ripple output voltage from an unregulated input voltage. A wide input supply voltage of 1.8V to 5.5V makes the REG711 ideal for a variety of battery sources, such as single cell Li-Ion, or two and three cell Nickel or Alkaline based chemistries. The input voltage may vary above and below the output voltage and the output will remain in regulation. It works equally well for step up or down without the need for an inductor, providing low EMI DC/DC conversion. The high switching frequency allows the use of small surface-mount capacitors, saving board space and reducing cost. The REG711 is thermally protected and current limited, protecting the load and the regulator during fault conditions. Typical ground pin current (quiescent current) is 1mA at full load, 60uA with no load, and less than 1uA in shutdown mode. This regulator comes in a thin MSOP-8 package with a component height of less than 1.1mm.
