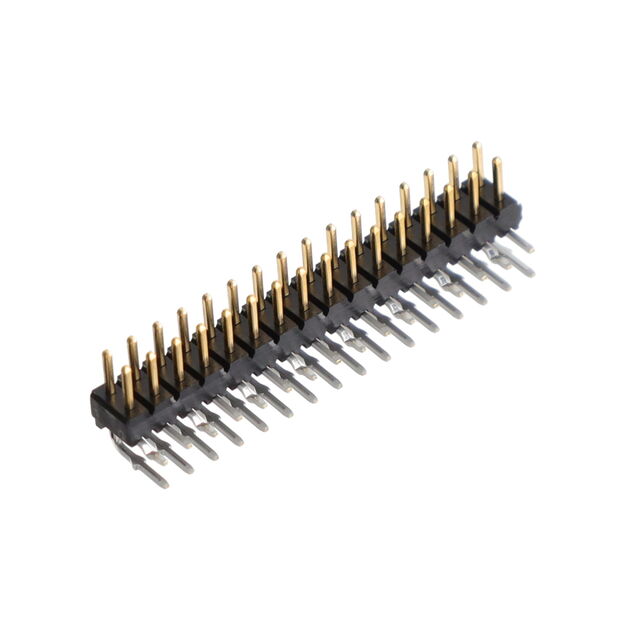

A3B-32PA Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN HEADER VERT 32POS 2MM
| Part | Mated Stacking Heights [z] | Contact Finish Thickness - Post [custom] | Contact Finish Thickness - Post [custom] | Insulation Color | Number of Positions Loaded | Contact Length - Mating | Contact Length - Mating | Contact Length - Post | Contact Length - Post | Shrouding | Style | Voltage Rating | Row Spacing - Mating | Row Spacing - Mating | Contact Finish - Post | Number of Rows [custom] | Contact Material | Insulation Height | Insulation Height | Connector Type | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Fastening Type | Material Flammability Rating | Contact Shape | Overall Contact Length | Overall Contact Length | Contact Type | Insulation Material | Termination | Mounting Type | Contact Finish - Mating | Insulation Height [z] | Insulation Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | 6 mm 8.8 mm | 78.7 µin | 2 µm | Black | All | 3.5 mm | 0.138 in | 2.6 mm | 0.102 in | Unshrouded | Board to Board Cable | 200 VAC | 2 mm | 0.079 in | Tin | 2 | Brass | 1.8 mm | 0.071 in | Header | 0.079 " | 2 mm | -55 C | 85 °C | Flash | Push-Pull | UL94 V-0 | Square | 7.9 mm | 0.311 in | Male Pin | Nylon Polyamide (PA) | Solder | Through Hole | Gold | ||
 Hirose Electric Co Ltd | Black | All | 3.5 mm | 0.138 in | 2.6 mm | 0.102 in | Unshrouded | Board to Board Cable | 200 VAC | 2 mm | 0.079 in | 2 | Brass | Header | 0.079 " | 2 mm | -55 C | 85 °C | Push-Pull | UL94 V-0 | Square | Male Pin | Nylon Polyamide (PA) | Kinked Pin Solder | Right Angle Through Hole | Gold | 4 mm | 0.157 in | |||||||||
 Hirose Electric Co Ltd | Black | All | 3.5 mm | 0.138 in | 2.6 mm | 0.102 in | Unshrouded | Board to Board Cable | 200 VAC | 2 mm | 0.079 in | 2 | Brass | 1.8 mm | 0.071 in | Header | 0.079 " | 2 mm | -55 C | 85 °C | Push-Pull | UL94 V-0 | Square | 7.9 mm | 0.311 in | Male Pin | Nylon Polyamide (PA) | Solder | Through Hole | Gold | |||||||
 Hirose Electric Co Ltd | Black | All | 3.5 mm | 0.138 in | 2.6 mm | 0.102 in | Unshrouded | Board to Board Cable | 200 VAC | 2 mm | 0.079 in | Tin | 2 | Brass | Header | 0.079 " | 2 mm | -55 C | 85 °C | Flash | Push-Pull | UL94 V-0 | Square | Male Pin | Nylon Polyamide (PA) | Kinked Pin Solder | Right Angle Through Hole | Gold | 4 mm | 0.157 in |
