MCP6442 Series

450 nA, 9 kHz Op Amp

Catalog

450 nA, 9 kHz Op Amp

Part	Voltage - Input Offset	Voltage - Supply Span (Min) [Min]	Mounting Type	Slew Rate	Operating Temperature [Min]	Operating Temperature [Max]	Gain Bandwidth Product	Current - Input Bias	Current - Supply	Output Type	Voltage - Supply Span (Max) [Max]	Number of Circuits	Current - Output / Channel	Supplier Device Package	Package / Case	Package / Case [y]	Package / Case [x]	Amplifier Type	Package / Case [custom]	Package / Case

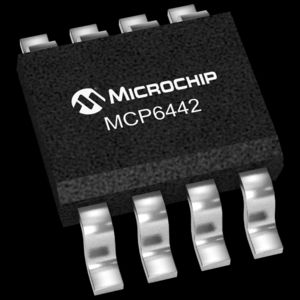

Microchip Technology MCP6442-E/SN	4.5 mV	1.4 V	Surface Mount	0.003 V/µs	-40 °C	125 °C	9 kHz	1 pA	450 nA	Rail-to-Rail	6 V	2	22 mA	8-SOIC	8-SOIC	3.9 mm	0.154 in	CMOS
Microchip Technology MCP6442T-E/MNY	4.5 mV	1.4 V	Surface Mount	0.003 V/µs	-40 °C	125 °C	9 kHz	1 pA	450 nA	Rail-to-Rail	6 V	2	22 mA	8-TDFN (2x3)	8-WFDFN Exposed Pad			CMOS
Microchip Technology MCP6442-E/MS	4.5 mV	1.4 V	Surface Mount	0.003 V/µs	-40 °C	125 °C	9 kHz	1 pA	450 nA	Rail-to-Rail	6 V	2	22 mA	8-MSOP	8-MSOP 8-TSSOP			CMOS	0.118 in	3 mm
Microchip Technology MCP6442T-E/SN	4.5 mV	1.4 V	Surface Mount	0.003 V/µs	-40 °C	125 °C	9 kHz	1 pA	450 nA	Rail-to-Rail	6 V	2	22 mA	8-SOIC	8-SOIC	3.9 mm	0.154 in	CMOS
Microchip Technology MCP6442T-E/MS	4.5 mV	1.4 V	Surface Mount	0.003 V/µs	-40 °C	125 °C	9 kHz	1 pA	450 nA	Rail-to-Rail	6 V	2	22 mA	8-MSOP	8-MSOP 8-TSSOP			CMOS	0.118 in	3 mm

Catalog

450 nA, 9 kHz Op Amp

Key Features

• * Low Quiescent Current: 450 nA (typical)

• * Gain Bandwidth Product: 9 kHz (typical)

• * Supply Voltage Range: 1.4V to 6.0V

• * Rail-to-Rail Input and Output

• * Unity Gain Stable

• * Slew Rate: 3V/ms (typical)

• * Extended Temperature Range: -40°C to +125°C

• * Available in TDFN, SOIC and MSOP

Description

The MCP6442 device is a dual nanopower operational amplifier (op amp), which has low quiescent current (450 nA, typical) and rail-to-rail input and output operation. This op amp is unity gain stable and has a gain bandwidth product of 9 kHz (typical). This device operates with a single supply voltage as low as 1.4V. These features make the family of op amps well suited for single-supply, battery-powered applications. The MCP6442 op amp is designed with Microchip’s advanced CMOS process and offered in TDFN, SOIC and MSOP packages. All devices are available in the extended temperature range, with a power supply range of 1.4V to 6.0V.
