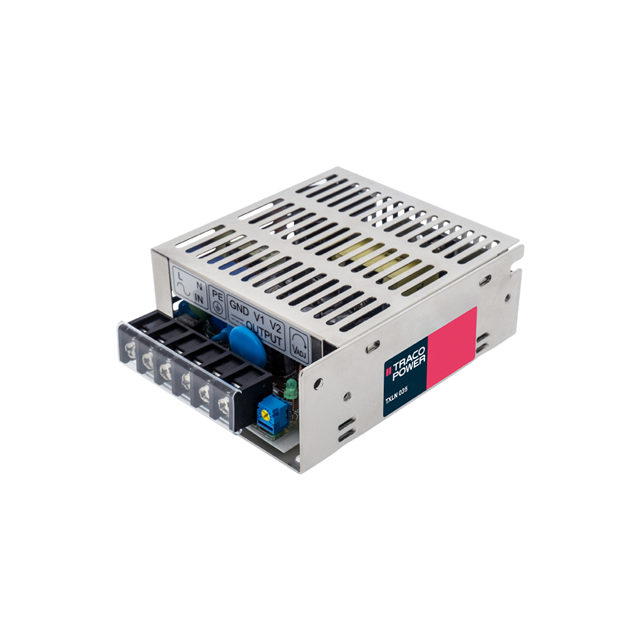

TXLN 035 Series

Switching Power Supplies

Manufacturer: Traco Power

Catalog

Switching Power Supplies

Catalog

Switching Power Supplies

Part	Minimum Load Required	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Approval Agency	Applications	Voltage - Output 1	Efficiency	Power (Watts)	Standard Number	Number of Outputs	Current - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Current - Output 2	Voltage - Isolation	Voltage - Output 2	Type	Features
Traco Power TXLN 035-23M3		70 °C	-20 °C	88 VAC 125 VDC	264 VAC 375 VDC	Chassis Mount	CB CE cURus	ITE (Commercial)	15 V	84 %	59 W	62368-1	2	2.4 A	3.9 "	3.23 in	35 mm	82 mm	1.38 in	99 mm	1.5 A	3000 V	-15 V	Enclosed	Adjustable Output Universal Input
Traco Power TXLN 035-148		70 °C	-20 °C	88 VAC 125 VDC	264 VAC 375 VDC	Chassis Mount	CB CE cURus	ITE (Commercial)	48 V	86 %	38 Watts	62368-1	1		3.9 "	3.23 in	35 mm	82 mm	1.38 in	99 mm		3000 V		Enclosed	Adjustable Output Universal Input
Traco Power TXLN 035-112		70 °C	-20 °C	88 VAC 125 VDC	264 VAC 375 VDC	Chassis Mount	CB CE cURus	ITE (Commercial)	12 V		36 W	62368-1	1	3 A	3.9 "	3.23 in	35 mm	82 mm	1.38 in	99 mm		3000 V		Enclosed	Adjustable Output Universal Input
Traco Power TXLN 035-215		70 °C	-20 °C	88 VAC 125 VDC	264 VAC 375 VDC	Chassis Mount	CB CE cURus	ITE (Commercial)	5 V	79 %	51 W	62368-1	2	4 A	3.9 "	3.23 in	35 mm	82 mm	1.38 in	99 mm	1.3 A	3000 V	24 V	Enclosed	Adjustable Output Universal Input
