DF52 Series

Catalog

CONN PLUG HSG 15POS 0.80MM

Part	Note	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Contact Termination	Connector Type	Mounting Type	Number of Positions	Pitch	Pitch	Fastening Type	Contact Type	Color	Contact Material	Insulation Color	Material Flammability Rating	Features	Insulation Height [z]	Insulation Height [z]	Voltage Rating	Pitch - Mating	Pitch - Mating	Termination	Number of Positions Loaded	Current Rating (Amps)	Style	Contact Finish - Post	Pin or Socket	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	Number of Conductors	Length	Length	Contact End	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge

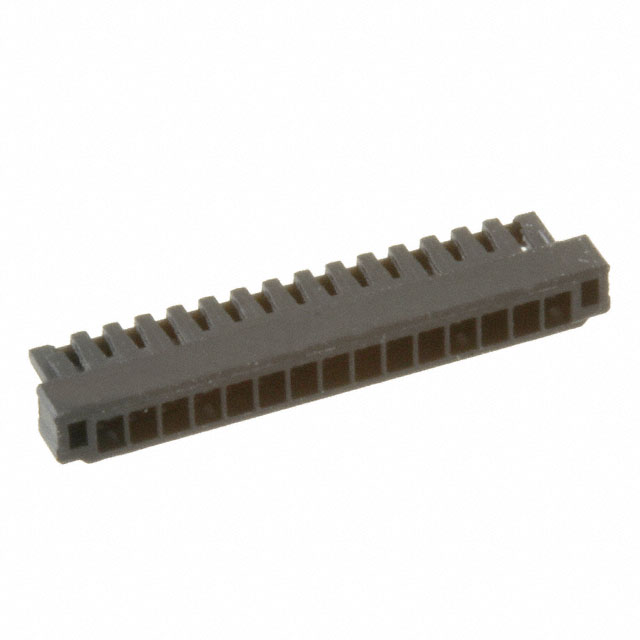

Hirose Electric Co Ltd DF52-15P-0.8C	Contacts Not Included	Nylon Polyamide (PA)	85 °C	-40 C	1	Crimp	Plug	Free Hanging (In-Line)	15	0.8 mm	0.031 in	Friction Lock	Non-Gendered	Black

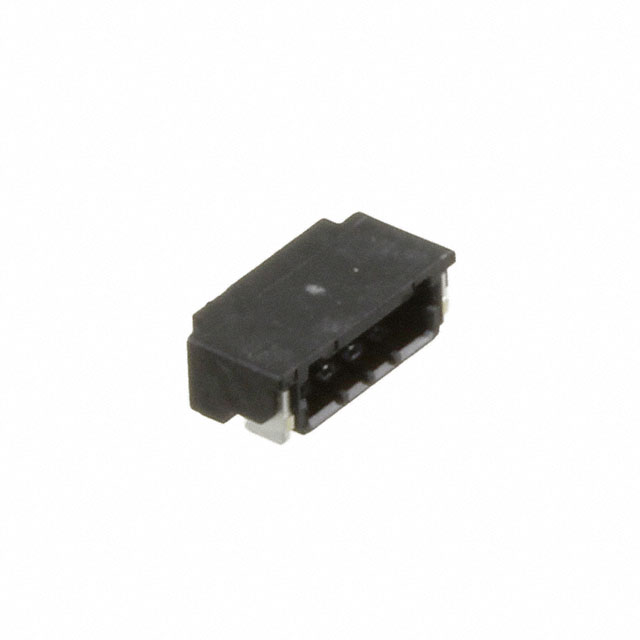

Hirose Electric Co Ltd DF52-4S-0.8H(21)		Halogen Free Nylon Polyamide (PA)	85 °C	-40 C	1		Socket	Right Angle Surface Mount	4			Detent Lock	Non-Gendered		Copper Alloy	Black	UL94 V-0	Glow Wire Compliant Solder Retention	0.069 in	1.75 mm	100 V	0.8 mm	0.031 in	Solder	All	1.5 A	Board to Cable/Wire	Tin

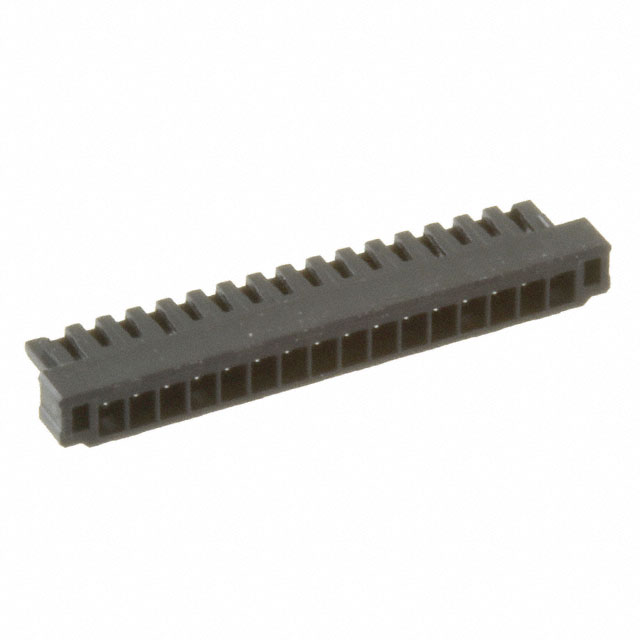

Hirose Electric Co Ltd DF52-16P-0.8C	Contacts Not Included	Nylon Polyamide (PA)	85 °C	-40 C	1	Crimp	Plug	Free Hanging (In-Line)	16	0.8 mm	0.031 in	Friction Lock	Non-Gendered	Black
Hirose Electric Co Ltd DF52-3S-0.8H(51)

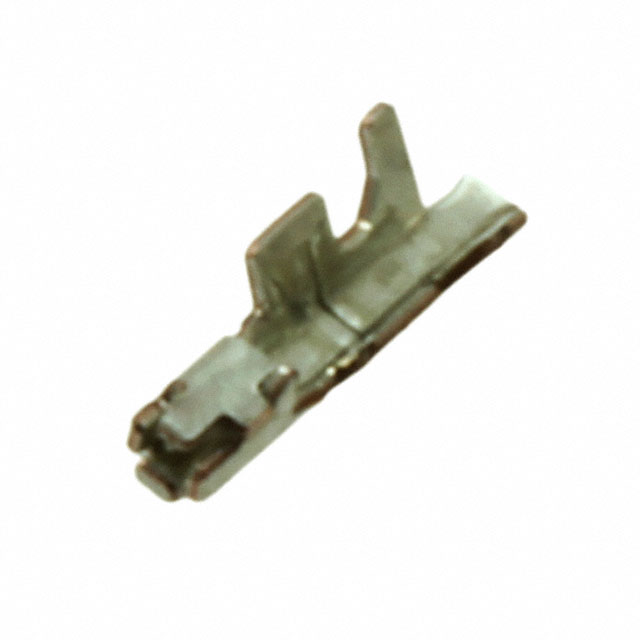

Hirose Electric Co Ltd DF52-2832PCF						Crimp																							Non-Gendered	27.5 AWG	32 AWG	Tin
Hirose Electric Co Ltd DF52-2P-0.8C	Contacts Not Included	Nylon Polyamide (PA)	85 °C	-40 C	1	Crimp	Plug	Free Hanging (In-Line)	2	0.8 mm	0.031 in	Friction Lock	Non-Gendered	Black
Hirose Electric Co Ltd DF52-12P-0.8C	Contacts Not Included	Nylon Polyamide (PA)	85 °C	-40 C	1	Crimp	Plug	Free Hanging (In-Line)	12	0.8 mm	0.031 in	Friction Lock	Non-Gendered	Black
Hirose Electric Co Ltd DF52-4P-0.8C		Nylon Polyamide (PA)	85 °C	-40 C	1	Crimp	Plug	Free Hanging (In-Line)	4	0.8 mm	0.031 in	Friction Lock	Non-Gendered	Black

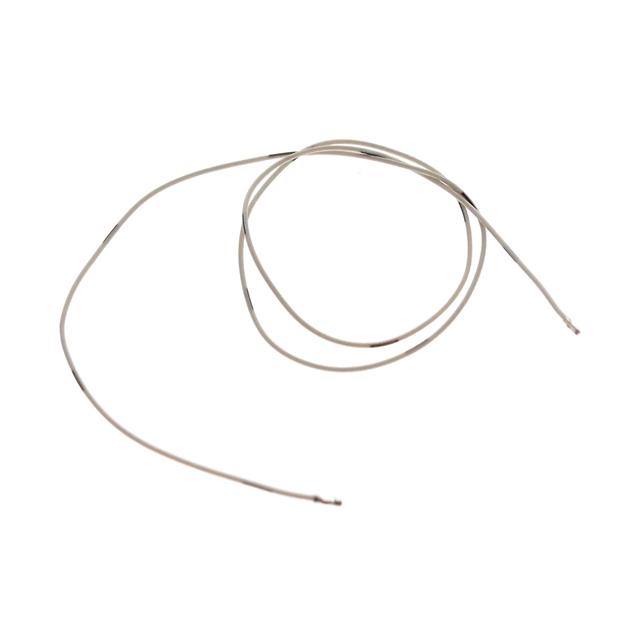

Hirose Electric Co Ltd DF52-2832PF1571-28A9-300					1									White																		Tin	1	11.8 in	300 mm	Non-Gendered	1 Ám	39.4 Áin	28 AWG

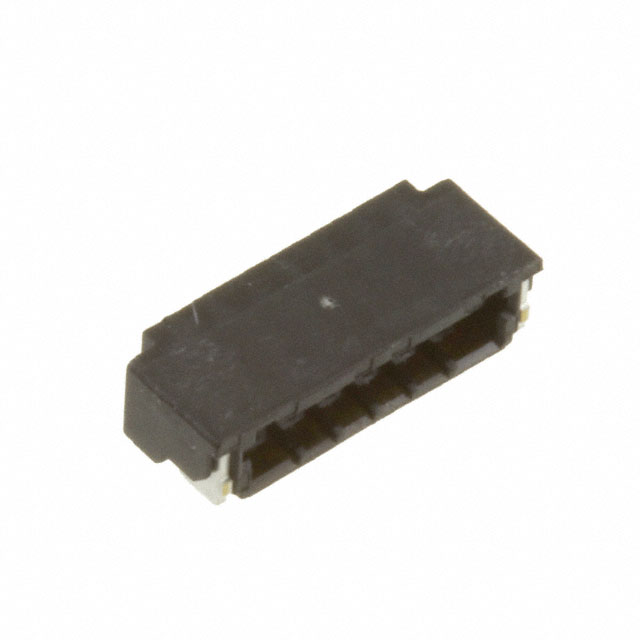

Hirose Electric Co Ltd DF52-6S-0.8H(21)		Halogen Free Nylon Polyamide (PA)	85 °C	-40 C	1		Socket	Right Angle Surface Mount	6			Detent Lock	Non-Gendered		Copper Alloy	Black	UL94 V-0	Glow Wire Compliant Solder Retention	0.069 in	1.75 mm	100 V	0.8 mm	0.031 in	Solder	All	1.5 A	Board to Cable/Wire	Tin
