F250A4 Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K

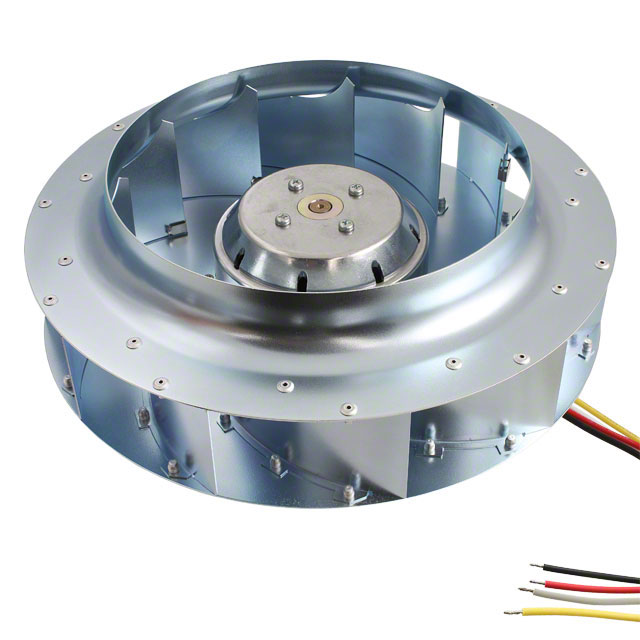

FAN IMP MTRZD 250X99.8MM 48VDC
| Part | Voltage Range [Min] | Voltage Range [Max] | Material - Blade | Current Rating (Amps) | Lifetime @ Temp. | Size / Dimension [diameter] | Size / Dimension | Power (Watts) | Noise | Termination | Fan Type | Bearing Type | Weight [custom] | Weight [custom] | Air Flow | Air Flow | Features | Voltage - Rated | Width [y] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | RPM | Static Pressure | Static Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 30 VDC | 72 VDC | Steel | 1.85 A | 70000 Hrs | 250 mm | Round | 88.8 W | 74 dB(A) | 4 Wire Leads | Motorized Impellers | Ball | 5.3 lbs | 2.4 kg | 19.4 m³/min | 693 CFM | PWM Control Speed Sensor (Tach) | 48 VDC | 99.8 mm | 70 °C | -30 ░C | -30 °C | 70 °C | 2500 RPM | 489.2 Pa | 1.964 in H2O |
