MMA040PP5E-Low-Noise-Amp-Eval Series

Evaluation PCB, MMA040PP5, LNA

Catalog

Evaluation PCB, MMA040PP5, LNA

Part	For Use With/Related Products	Frequency [Max]	Type	Supplied Contents	Current - Supply	Test Frequency [Max]	Test Frequency [Min]	RF Type	Mounting Type	Gain	Package / Case	Voltage - Supply	Supplier Device Package	P1dB	Noise Figure
Microchip Technology MMA040PP5E	MMA040PP5	27 GHz	Amplifier	Board(s)
Microchip Technology MMA040PP5		27 GHz			60 mA	12 GHz	6 GHz	General Purpose	Surface Mount	15.5 dBi	32-TFQFN Exposed Pad	8 V	32-QFN (5x5)	16 dBm	2 dB

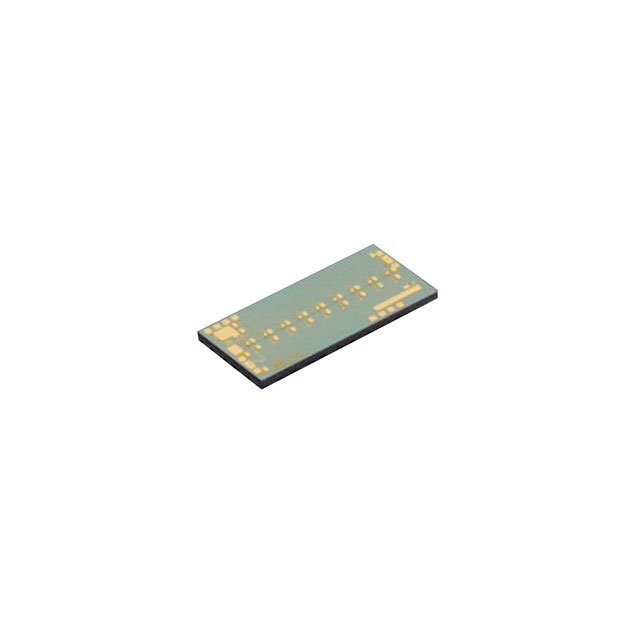

Microchip Technology MMA040AA		28 GHz			60 mA	12 GHz	6 GHz	General Purpose		16 dB	Die	8 V	Die	16 dBm	3 dB
Microchip Technology MMA040PP5/TR		27 GHz			60 mA	12 GHz	6 GHz	General Purpose	Surface Mount	15.5 dBi	32-TFQFN Exposed Pad	8 V	32-QFN (5x5)	16 dBm	2 dB

Catalog

Evaluation PCB, MMA040PP5, LNA

Key Features

- Frequency range: DC to 27 GHz

- Flat gain: 16 dB

- High-output IP3: 28 dBm

- Low-noise figure: 2 dB at 12 GHz

- Supply voltage: 8 V at 60 mA

- 50 Ω matched I/O

- 32-lead 5 mm × 5 mm QFN package: 25 mm²

Description

The MMA040PP5E is the evaluation pcb for the GaAs MMIC distributed LNA in a leadless 5 mm × 5 mm surface-mount package that operates operates between DC and 27 GHz. It is ideal for test instrumentation and electronic warfare applications. The amplifier provides a flat gain of 16 dB, 2 dB noise figure, and 16 dBm of output power at 1 dBm gain compression while requiring only 60 mA from an 8 V supply. Output IP3 is typically 28 dBm.
