AS21P2 Series

Catalog

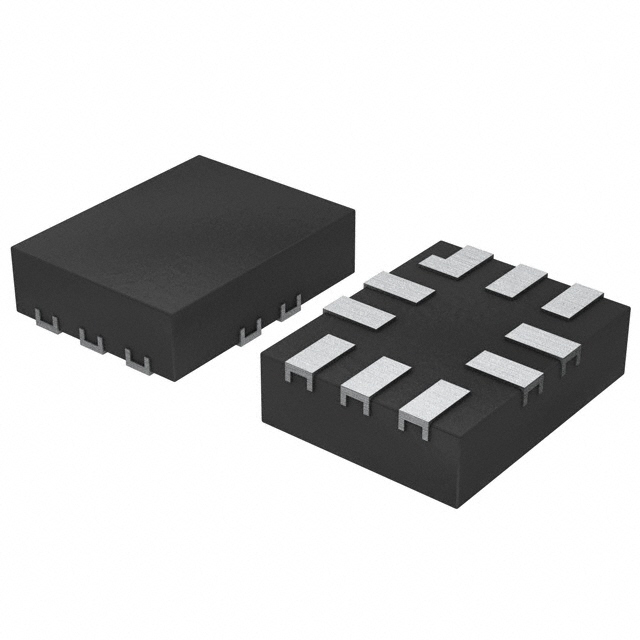

IC SWITCH SPDT X 2 500MOHM 10QFN

Part	Number of Circuits	-3db Bandwidth	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Crosstalk	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]	Channel-to-Channel Matching (ΔRon)	Multiplexer/Demultiplexer Circuit	Switch Circuit	Operating Temperature [Max]	Operating Temperature [Min]	On-State Resistance (Max) [Max]	Package / Case	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Current - Leakage (IS(off)) (Max)	Mounting Type	Charge Injection	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]
STMicroelectronics AS21P2TLRQ	2	55 MHz	1.4	10-QFN	1.8	-72 dB	4.3 V	1.65 V	100 mOhm	2:1	SPDT	85 C	-40 ¯C	500 mOhm	10-UFQFN	40 ns	65 ns	20 nA	Surface Mount	49 pC
STMicroelectronics AS21P2THBQ	2	800 MHz	1.4	10-QFN	1.8	-78 dB	4.3 V	1.65 V	100 mOhm	2:1	SPDT	85 C	-40 ¯C	7 Ohms	10-UFQFN	13 ns	15 ns	20 nA	Surface Mount	6.4 pC	2 pF	2 pF
