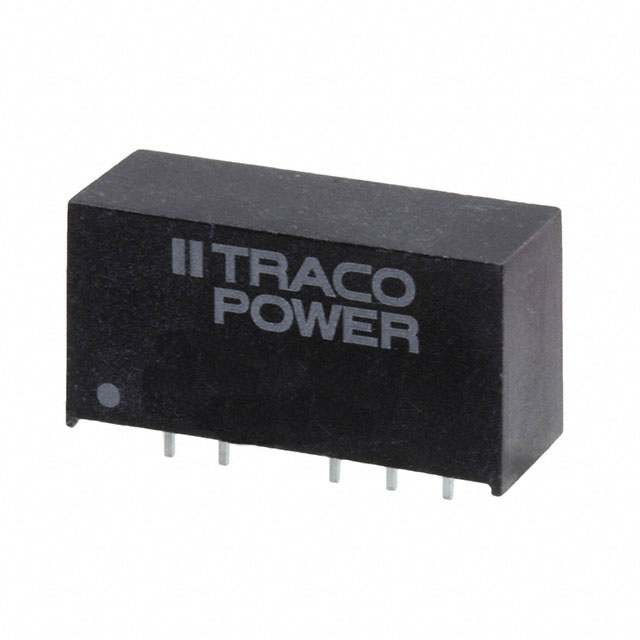

TMH 0515 Series
Manufacturer: Traco Power
Beta
⌘K
DC DC CONVERTER +/-15V 2W
| Part | Efficiency | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Mounting Type | Applications | Type | Voltage - Input (Min) [Min] | Package / Case | Voltage - Input (Max) [Max] | Number of Outputs | Voltage - Output 2 | Features | Current - Output (Max) | Power (Watts) | Voltage - Output 1 | Voltage - Isolation | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 79 % | 19.5 mm | 0.77 in | 0.3 " | 7.5 mm | 10.2 mm | 0.4 " | Through Hole | ITE (Commercial) | Isolated Module | 5 V | 7-SIP Module 5 Leads | 5.5 V | 2 | -15 V | SCP | 66 mA | 2 W | 15 V | 1000 V | -40 °C | 85 °C |
