STL50 Series

Catalog

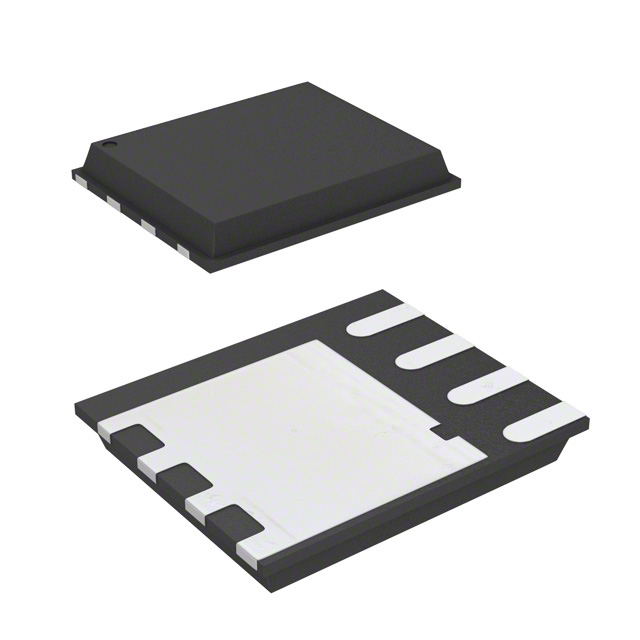

MOSFET N-CH 30V 27A POWERFLAT

Part	FET Type	Vgs(th) (Max) @ Id	Power Dissipation (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Technology	Input Capacitance (Ciss) (Max) @ Vds	Package / Case	Rds On (Max) @ Id, Vgs	Drive Voltage (Max Rds On, Min Rds On)	Current - Continuous Drain (Id) @ 25°C	Supplier Device Package	Vgs (Max)	Gate Charge (Qg) (Max) @ Vgs [Max]	Drain to Source Voltage (Vdss)
STMicroelectronics STL50NH3LL	N-Channel	1 V	60 W	150 °C	-55 °C	Surface Mount	MOSFET (Metal Oxide)	965 pF	8-PowerVDFN	13 mOhm	4.5 V 10 V	27 A	PowerFlat™ (5x6)	16 V	12 nC	30 V
