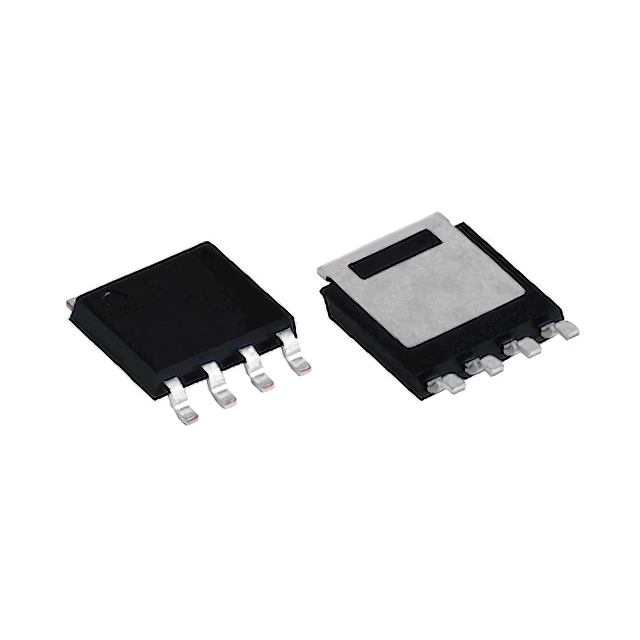

SQJ154 Series
Manufacturer: Vishay General Semiconductor - Diodes Division
Beta
⌘K
AUTOMOTIVE N-CHANNEL 40 V (D-S)
| Part | FET Type | Power Dissipation (Max) | Qualification | Package / Case | Rds On (Max) @ Id, Vgs | Drain to Source Voltage (Vdss) | Grade | Drive Voltage (Max Rds On, Min Rds On) | Gate Charge (Qg) (Max) @ Vgs [Max] | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | Technology | Supplier Device Package | Current - Continuous Drain (Id) @ 25°C | Operating Temperature [Min] | Operating Temperature [Max] | Vgs(th) (Max) @ Id | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay General Semiconductor - Diodes Division | N-Channel | 214 W | AEC-Q101 | PowerPAK® SO-8 | 2.5 mOhm | 40 V | Automotive | 10 V | 65 nC | 20 V | 3620 pF | MOSFET (Metal Oxide) | PowerPAK® SO-8 | 243 A | -55 °C | 175 ░C | 3.5 V | Surface Mount |
