VN750 Series

Catalog

IC PWR DRIVER N-CHANNEL 1:1 8SO

Part	Number of Outputs	Package / Case	Package / Case	Package / Case	Mounting Type	Fault Protection	Output Type	Supplier Device Package	Rds On (Typ)	Interface	Output Configuration	Features	Operating Temperature [Min]	Operating Temperature [Max]	Ratio - Input:Output	Current - Output (Max) [Max]	Switch Type	Voltage - Load [Max]	Voltage - Load [Min]	Input Type	Voltage - Supply (Vcc/Vdd)

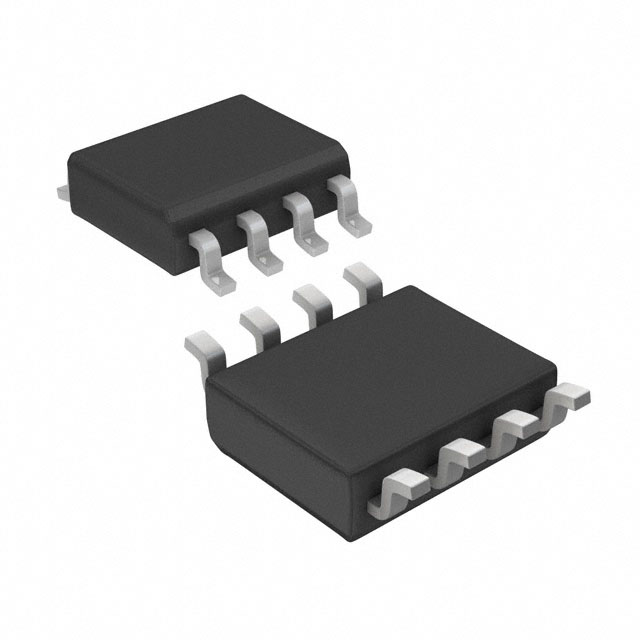

STMicroelectronics VN750S-E	1	0.154 in	8-SOIC	3.9 mm	Surface Mount	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage	N-Channel	8-SOIC	60 mOhm	On/Off	High Side	Auto Restart Status Flag	-40 °C	150 °C	1:1	6 A	General Purpose	36 V	5.5 V	Non-Inverting	Not Required

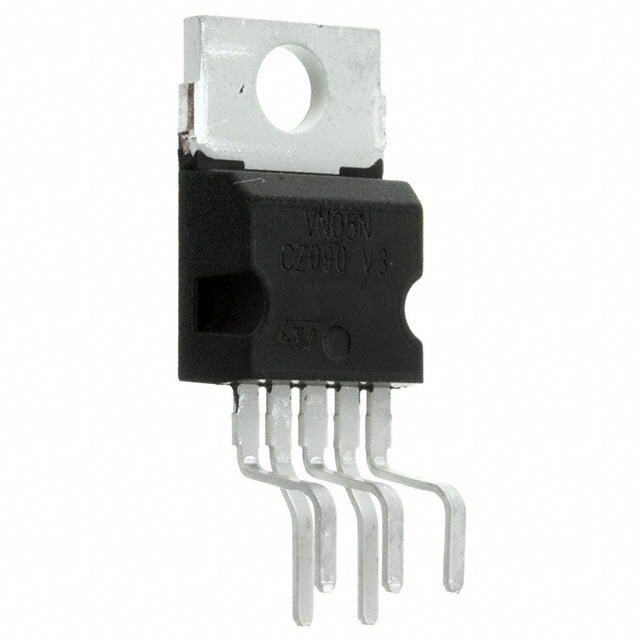

STMicroelectronics VN750	1		Pentawatt-5 (Vertical Bent and Staggered Leads)		Through Hole	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage	N-Channel	5-PENTAWATT	60 mOhm	On/Off	High Side	Auto Restart Status Flag	-40 °C	150 °C	1:1	6 A	General Purpose	36 V	5.5 V	Non-Inverting	Not Required
STMicroelectronics VN750-B5	1		P2PAK (4 Leads + Tab)		Surface Mount	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage	N-Channel	P2PAK	60 mOhm	On/Off	High Side	Auto Restart Status Flag	-40 °C	150 °C	1:1	6 A	General Purpose	36 V	5.5 V	Non-Inverting	Not Required
STMicroelectronics VN750PEPTR-E	1		PowerSSO-12		Surface Mount	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage	N-Channel	PowerSSO-12™	60 mOhm	On/Off	High Side	Auto Restart Status Flag	-40 °C	150 °C	1:1	6 A	General Purpose	36 V	5.5 V	Non-Inverting	Not Required
STMicroelectronics VN750-B513TR	1		P2PAK (4 Leads + Tab)		Surface Mount	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage	N-Channel	P2PAK	60 mOhm	On/Off	High Side	Auto Restart Status Flag	-40 °C	150 °C	1:1	6 A	General Purpose	36 V	5.5 V	Non-Inverting	Not Required
STMicroelectronics VN750PEP-E	1		PowerSSO-12		Surface Mount	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage	N-Channel	PowerSSO-12™	60 mOhm	On/Off	High Side	Auto Restart Status Flag	-40 °C	150 °C	1:1	6 A	General Purpose	36 V	5.5 V	Non-Inverting	Not Required
STMicroelectronics VN750PS-E	1	0.154 in	8-SOIC	3.9 mm	Surface Mount	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage	N-Channel	8-SO	60 mOhm	On/Off	High Side	Auto Restart Status Flag	-40 °C	150 °C	1:1	6 A	General Purpose	36 V	5.5 V	Non-Inverting	Not Required
STMicroelectronics VN750PT-E	1		DPAK (4 Leads + Tab) TO-252-5 TO-252-5 DPAK (4 Leads + Tab) TO-252AD		Surface Mount	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage	N-Channel	PPAK	60 mOhm	On/Off	High Side	Auto Restart Status Flag	-40 °C	150 °C	1:1	6 A	General Purpose	36 V	5.5 V	Non-Inverting	Not Required
