MDF7P Series

Catalog

CONN HEADER VERT 19POS 2.54MM

Part	Contact Material	Material Flammability Rating	Contact Shape	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Connector Type	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Current Rating (Amps)	Shrouding	Contact Finish - Post	Insulation Color	Voltage Rating	Number of Rows	Number of Positions	Insulation Material	Contact Type	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Mounting Type	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Style	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Hirose Electric Co Ltd MDF7P-19P-2.54DSA(55)	Brass	UL94 V-0	Square	12.5 mm	0.492 in	0.1 in	2.54 mm	0.1 "	2.54 mm	Header	39.4 µin	1 µm	Push-Pull	85 °C	-35 °C	Solder	3 A	Unshrouded	Tin	Black	250 V	1	19	Polybutylene Terephthalate (PBT)	Male Pin	All	0.118 in	3 mm	18.03 mm	0.71 in	Through Hole

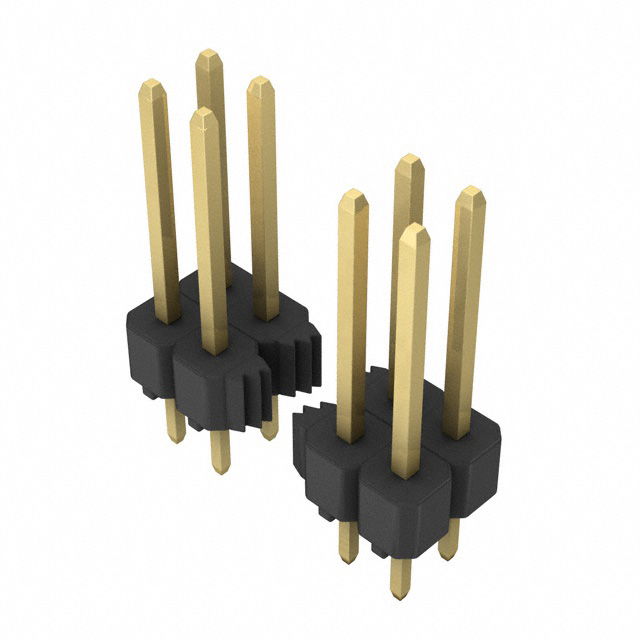

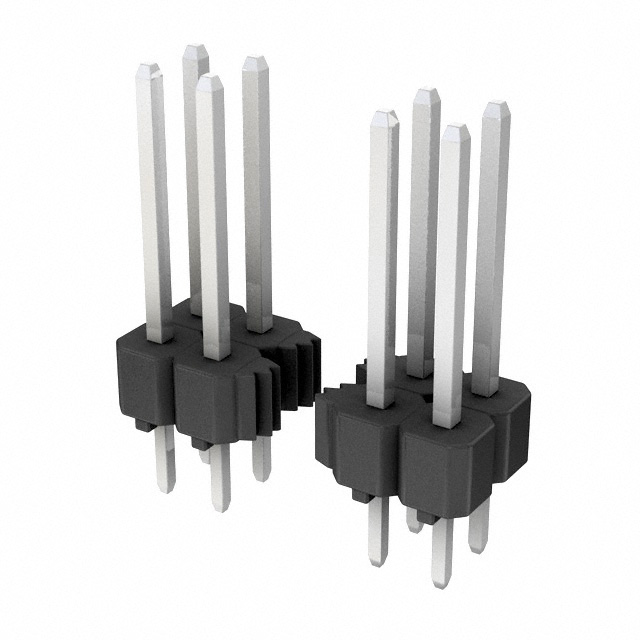

Hirose Electric Co Ltd MDF7P-12DP-2.54DSA(55)	Brass	UL94 V-0	Square	12.5 mm	0.492 in	0.1 in	2.54 mm	0.1 "	2.54 mm	Header	39.4 µin	1 µm	Push-Pull	85 °C	-35 °C	Solder	3 A	Unshrouded	Tin	Black	250 V		12	Polybutylene Terephthalate (PBT)	Male Pin	All	0.118 in	3 mm	18.03 mm	0.71 in	Through Hole	2	0.1 in	2.54 mm
Hirose Electric Co Ltd MDF7P-5P-2.54DSA(96)	Brass	UL94 V-0	Square	12.5 mm	0.492 in	0.1 in	2.54 mm	0.1 "	2.54 mm	Header			Push-Pull	85 °C	-35 °C	Solder	3 A	Unshrouded		Black	250 VAC	1	5	Polybutylene Terephthalate (PBT)	Male Pin	All	0.118 in	3 mm	18.03 mm	0.71 in	Through Hole				Board to Cable/Wire	Gold
Hirose Electric Co Ltd MDF7P-40DP-2.54DSA	Brass	UL94 V-0	Square	12.5 mm	0.492 in	0.1 in	2.54 mm	0.1 "	2.54 mm	Header			Push-Pull	85 °C	-35 °C	Solder	3 A	Unshrouded		Black	250 V		40	Polybutylene Terephthalate (PBT)	Male Pin	All	0.118 in	3 mm	18.03 mm	0.71 in	Through Hole	2	0.1 in	2.54 mm		Gold	8 µin	0.203 µm
Hirose Electric Co Ltd MDF7P-25P-2.54DSA(95)	Brass	UL94 V-0	Square	12.5 mm	0.492 in	0.1 in	2.54 mm	0.1 "	2.54 mm	Header			Push-Pull	85 °C	-35 °C	Solder	3 A	Unshrouded	Tin	Black	250 VAC	1	25	Polybutylene Terephthalate (PBT)	Male Pin	All	0.118 in	3 mm	18.03 mm	0.71 in	Through Hole				Board to Cable/Wire
Hirose Electric Co Ltd MDF7P-30DP-2.54DSA(84)	Brass	UL94 V-0	Square	12.5 mm	0.492 in	0.1 in	2.54 mm	0.1 "	2.54 mm	Header			Push-Pull	85 °C	-35 °C	Solder	3 A	Unshrouded		Black	250 VAC		30	Polybutylene Terephthalate (PBT)	Male Pin	All	0.118 in	3 mm	18.03 mm	0.71 in	Through Hole	2	0.1 in	2.54 mm	Board to Cable/Wire
Hirose Electric Co Ltd MDF7P-3P-2.54DSA(96)	Brass	UL94 V-0	Square	12.5 mm	0.492 in	0.1 in	2.54 mm	0.1 "	2.54 mm	Header			Push-Pull	85 °C	-35 °C	Solder	3 A	Unshrouded		Black	250 VAC	1		Polybutylene Terephthalate (PBT)	Male Pin	All	0.118 in	3 mm	18.03 mm	0.71 in	Through Hole				Board to Cable/Wire	Gold
Hirose Electric Co Ltd MDF7P-30DP-2.54DSA(14)
Hirose Electric Co Ltd MDF7P-22DP-2.54DSA(95)	Brass	UL94 V-0	Square	12.5 mm	0.492 in	0.1 in	2.54 mm	0.1 "	2.54 mm	Header			Push-Pull	85 °C	-35 °C	Solder	3 A	Unshrouded	Tin	Black	250 VAC		22	Polybutylene Terephthalate (PBT)	Male Pin	All	0.118 in	3 mm	18.03 mm	0.71 in	Through Hole	2	0.1 in	2.54 mm	Board to Cable/Wire
Hirose Electric Co Ltd MDF7P-10P-2.54DSA(95)	Brass	UL94 V-0	Square	12.5 mm	0.492 in	0.1 in	2.54 mm	0.1 "	2.54 mm	Header			Push-Pull	85 °C	-35 °C	Solder	3 A	Unshrouded	Tin	Black	250 VAC	1	10	Polybutylene Terephthalate (PBT)	Male Pin	All	0.118 in	3 mm	18.03 mm	0.71 in	Through Hole				Board to Cable/Wire
