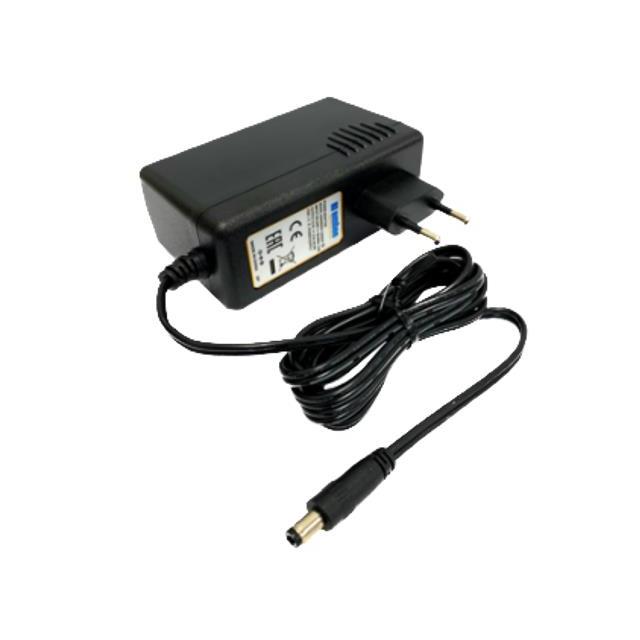

AMA65 Series

Manufacturer: aimtec

Catalog

AC/DC DESKTOP ADAPTER 12V 65W

Part	Standard Number	Approval Agency	Weight	Weight	Form	Voltage - Output	Efficiency	Input Connector	Power (Watts)	Output Connector [diameter]	Output Connector	Output Connector [z]	Current - Output (Max) [Max]	Cord Length	Cord Length	No Load Power Consumption	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Polarization	Input Type	Voltage - Input [Max]	Voltage - Input [Min]	Applications	Region Utilized	Operating Temperature [Max]	Output Connector [x]	Current - Output (Max)
aimtec AMA65DR5L-120054Y	60950-1 62368-1	CE cULus FCC UKCA UL	0.661 lb	300 g	Desktop (Class I)	12 V	CoC Tier 2 Level VI	IEC 320-C14	65 W	2.5 mm 5.5 mm	Barrel Plug R/A	9.5 mm	5.4 A	1.5 m	60.2 in	210 mW	32.5 mm	1.28 "	119.5 mm	2.07 in	52.5 mm	4.7 in	Positive Center	Cord (Sold Separately)	264 VAC	90 VAC	ITE (Commercial)	International	40 °C
aimtec AMA65UR4-240200Y	62368-1	CE FCC UL	0.661 lb	300 g	Wall Mount	24 V	CoC Tier 2 Level VI	NEMA 1-15P	48 W	2.1 mm 5.5 mm	Barrel Plug		2 A	1.5 m	60.2 in	210 mW	86.5 mm	3.41 "	105.4 mm	1.65 "	42 mm	4.15 in	Positive Center	Fixed Blade	264 VAC	90 VAC	ITE (Commercial)	North America	40 °C	9.5 mm
aimtec AMA65UR5-120500Y	62368-1	CE FCC UL	0.661 lb	300 g	Wall Mount	12 V	CoC Tier 2 Level VI	NEMA 1-15P	60 W	2.5 mm 5.5 mm	Barrel Plug			1.5 m	60.2 in	210 mW	86.5 mm	3.41 "	105.4 mm	1.65 "	42 mm	4.15 in	Positive Center	Fixed Blade	264 VAC	90 VAC	ITE (Commercial)	North America	40 °C	9.5 mm	5 A
aimtec AMA65UR4-120500Y	62368-1	CE FCC UL	0.661 lb	300 g	Wall Mount	12 V	CoC Tier 2 Level VI	NEMA 1-15P	60 W	2.1 mm 5.5 mm	Barrel Plug			1.5 m	60.2 in	210 mW	86.5 mm	3.41 "	105.4 mm	1.65 "	42 mm	4.15 in	Positive Center	Fixed Blade	264 VAC	90 VAC	ITE (Commercial)	North America	40 °C	9.5 mm	5 A
