FH35C Series

Catalog

FFC & FPC CONNECTORS 27P BCKFLP DUAL-SIDE FPC 0.3MM P 0.9MM H

Part	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Housing Color	Actuator Color	Mating Cycles	Actuator Material	Height Above Board [z]	Height Above Board [z]	FFC, FCB Thickness [custom]	Mounting Type	Connector/Contact Type	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Locking Feature	Contact Material	Housing Material	Termination	Flat Flex Type	Voltage Rating	Contact Finish	Material Flammability Rating	Cable End Type	Number of Positions [custom]
Hirose Electric Co Ltd FH35C-27S-0.3SHW(50)	0.2 A	0.3 Ám	11.8 Áin	Gray	Black	10	Polyamide (PA) Nylon	0.88 mm	0.035 in	0.2 mm	Right Angle Surface Mount	Contacts Top and Bottom	0.012 in	0.3 mm	-55 C	85 °C	27	Backlock Flip Lock	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Solder	FPC	30 VDC	Gold	UL94 V-0	Tapered
Hirose Electric Co Ltd FH35C-45S-0.3SHW(50)	0.2 A	0.3 Ám	11.8 Áin	Gray	Black	10	Polyamide (PA) Nylon	0.88 mm	0.035 in	0.2 mm	Right Angle Surface Mount	Contacts Top and Bottom	0.012 in	0.3 mm	-55 C	85 °C	45	Backlock Flip Lock	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Solder	FPC	30 VDC	Gold	UL94 V-0	Tapered

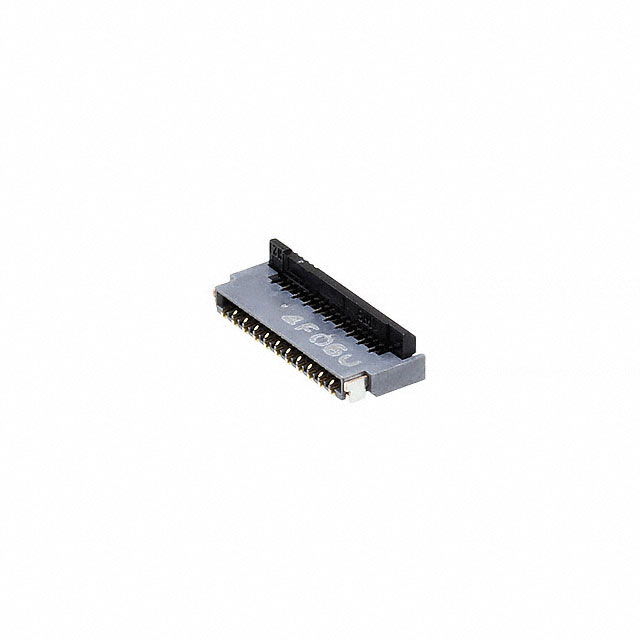

Hirose Electric Co Ltd FH35C-21S-0.3SHW(99)	0.2 A	0.03 Ám	1.25 Áin	Gray	Black	10	Polyamide (PA) Nylon	0.88 mm	0.035 in	0.2 mm	Right Angle Surface Mount	Contacts Top and Bottom	0.012 in	0.3 mm	-55 C	85 °C	21	Backlock Flip Lock	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Solder	FPC	30 VDC	Gold	UL94 V-0	Tapered

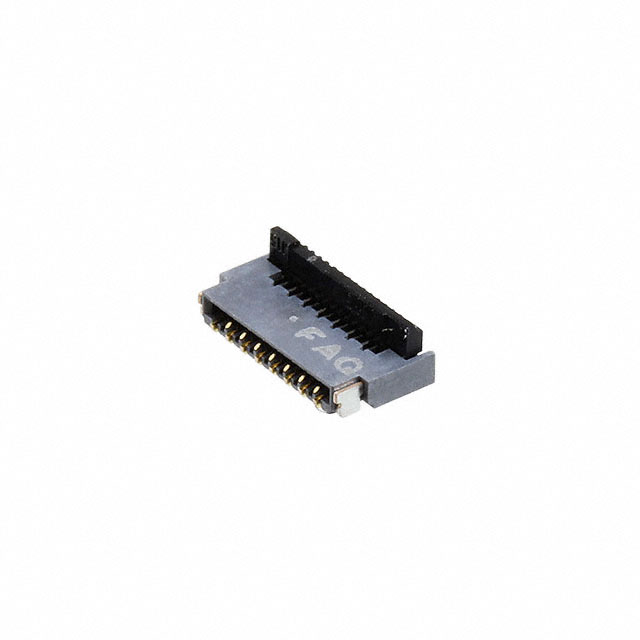

Hirose Electric Co Ltd FH35C-15S-0.3SHW(10)	0.2 A						Polyamide (PA) Nylon	0.88 mm	0.035 in	0.2 mm	Right Angle Surface Mount	Contacts Top and Bottom	0.012 in	0.3 mm	-55 C	85 °C	15	Backlock Flip Lock	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Solder	FPC	30 VDC	Gold	UL94 V-0	Tapered

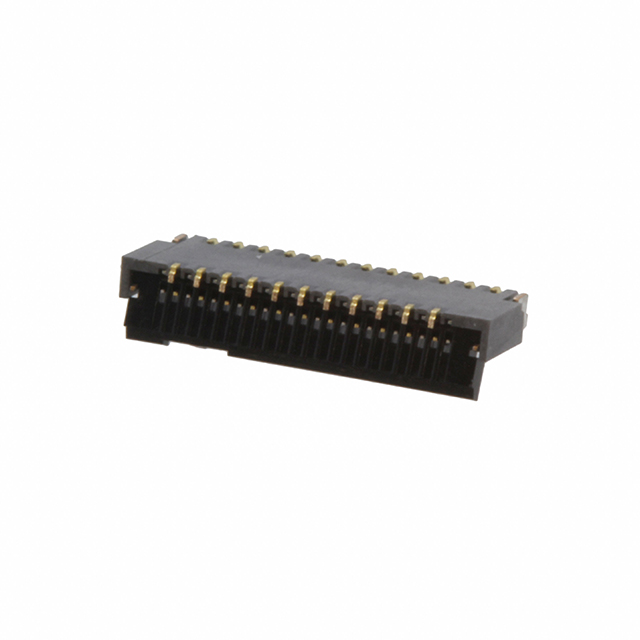

Hirose Electric Co Ltd FH35C-23S-0.3SHW(10)	0.2 A						Polyamide (PA) Nylon	0.88 mm	0.035 in	0.2 mm	Right Angle Surface Mount	Contacts Top and Bottom	0.012 in	0.3 mm	-55 C	85 °C	23	Backlock Flip Lock	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Solder	FPC	30 VDC	Gold	UL94 V-0	Tapered
Hirose Electric Co Ltd FH35C-51S-0.3SHW(50)	0.2 A	0.3 Ám	11.8 Áin	Gray	Black	10	Polyamide (PA) Nylon	0.88 mm	0.035 in	0.2 mm	Right Angle Surface Mount	Contacts Top and Bottom	0.012 in	0.3 mm	-55 C	85 °C	51	Backlock Flip Lock	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Solder	FPC	30 VDC	Gold	UL94 V-0	Tapered

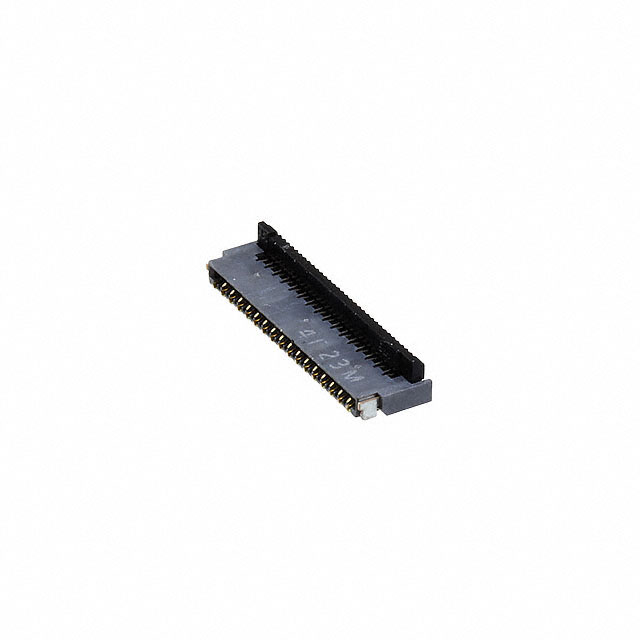

Hirose Electric Co Ltd FH35C-33S-0.3SHW(50)	0.2 A	0.3 Ám	11.8 Áin	Gray	Black	10	Polyamide (PA) Nylon	0.88 mm	0.035 in	0.2 mm	Right Angle Surface Mount	Contacts Top and Bottom	0.012 in	0.3 mm	-55 C	85 °C		Backlock Flip Lock	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Solder	FPC	30 VDC	Gold	UL94 V-0	Tapered	33
Hirose Electric Co Ltd FH35C-21S-0.3SHW(10)							Polyamide (PA) Nylon	0.88 mm	0.035 in	0.2 mm	Right Angle Surface Mount	Contacts Top and Bottom	0.012 in	0.3 mm	-55 C	85 °C	21	Backlock Flip Lock	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Solder	FPC	30 VDC	Gold	UL94 V-0	Tapered

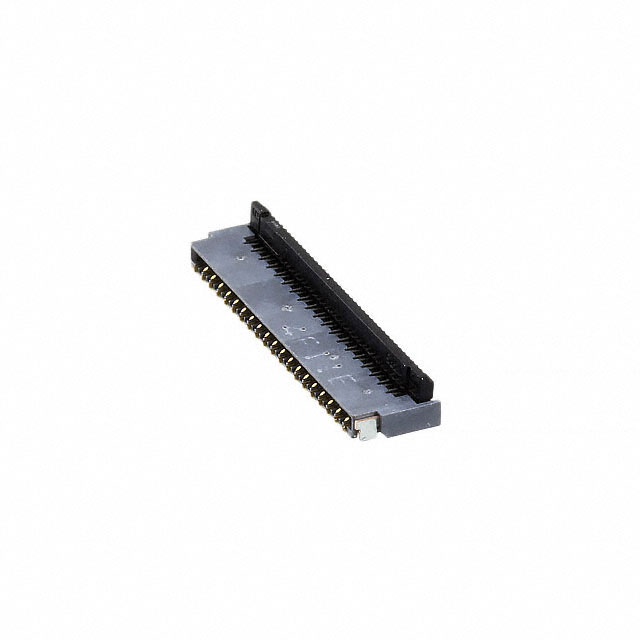

Hirose Electric Co Ltd FH35C-39S-0.3SHW(50)	0.2 A	0.3 Ám	11.8 Áin	Gray	Black	10	Polyamide (PA) Nylon	0.88 mm	0.035 in	0.2 mm	Right Angle Surface Mount	Contacts Top and Bottom	0.012 in	0.3 mm	-55 C	85 °C	39	Backlock Flip Lock	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Solder	FPC	30 VDC	Gold	UL94 V-0	Tapered
Hirose Electric Co Ltd FH35C-11S-0.3SHW(10)	0.2 A						Polyamide (PA) Nylon	0.88 mm	0.035 in	0.2 mm	Right Angle Surface Mount	Contacts Top and Bottom	0.012 in	0.3 mm	-55 C	85 °C	11	Backlock Flip Lock	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Solder	FPC	30 VDC	Gold	UL94 V-0	Tapered
