TRN 1 Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 18-36VIN 3.3V 300MA 1W ISO REG SIP

Part	Voltage - Input (Max) [Max]	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Input (Min) [Min]	Applications	Current - Output (Max) [Max]	Efficiency	Voltage - Output 1	Type	Number of Outputs	Power (Watts)	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)	Current - Output (Max) [Max]

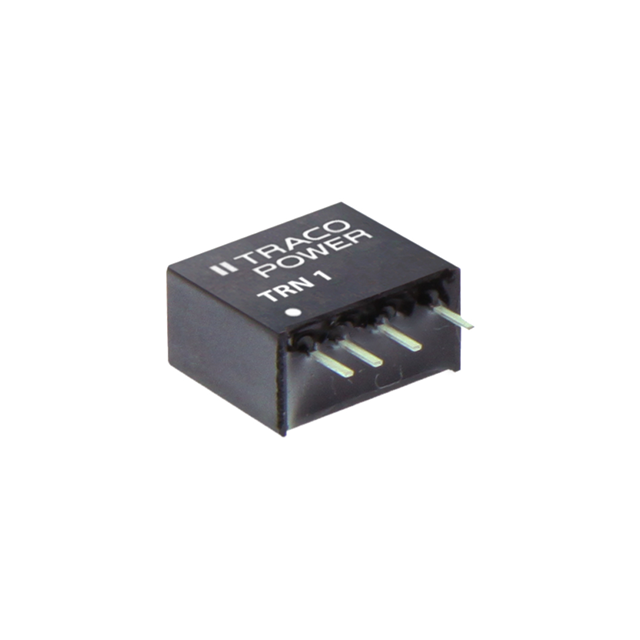

Traco Power TRN 1-2410	36 V	1.6 kV	0.47 in	0.3 "	0.43 in	11 mm	7.7 mm	11.9 mm	Through Hole	SCP	90 °C	-40 C	5-SIP Module 4 Leads	18 V	ITE (Commercial)	0.3 A	77 %	3.3 V	Isolated Module	1

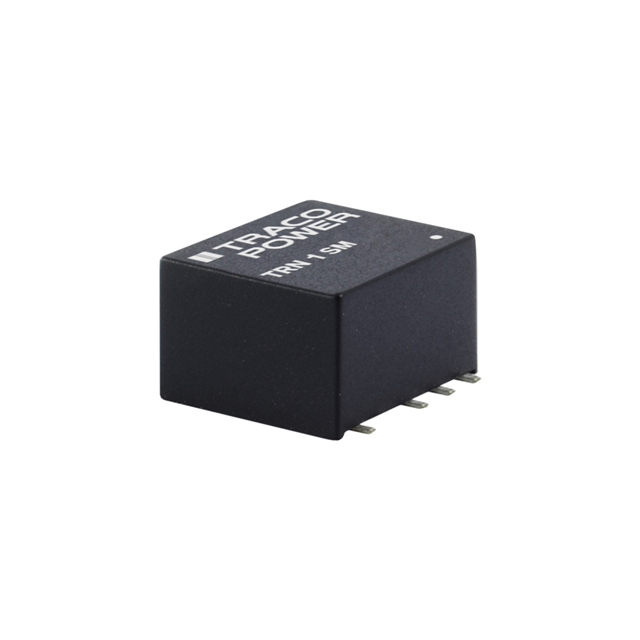

Traco Power TRN 1-0513SM	13.2 V	1.6 kV	0.47 in	0.44 "	0.31 "	8 mm	11.3 mm	11.9 mm	Surface Mount	SCP	90 °C	-40 C	7-SMD Module 6 Leads	4.5 V	ITE (Commercial)	70 mA		15 V	Isolated Module	1	1.1 W
Traco Power TRN 1-2413SM	36 V	1.6 kV	0.47 in	0.44 "	0.31 "	8 mm	11.3 mm	11.9 mm	Surface Mount	SCP	90 °C	-40 C	7-SMD Module 6 Leads	18 V	ITE (Commercial)	70 mA	83 %	15 V	Isolated Module	1	1.1 W
Traco Power TRN 1-1212	18 V	1.6 kV	0.47 in	0.3 "	0.43 in	11 mm	7.7 mm	11.9 mm	Through Hole	SCP	90 °C	-40 C	5-SIP Module 4 Leads	9 V	ITE (Commercial)	90 mA	81 %	12 V	Isolated Module	1	1.1 W
Traco Power TRN 1-1210	18 V	1.6 kV	0.47 in	0.3 "	0.43 in	11 mm	7.7 mm	11.9 mm	Through Hole	SCP	90 °C	-40 C	5-SIP Module 4 Leads	9 V	ITE (Commercial)	0.3 A	77 %	3.3 V	Isolated Module	1
Traco Power TRN 1-4812	75 V	1.6 kV	0.47 in	0.3 "	0.43 in	11 mm	7.7 mm	11.9 mm	Through Hole	SCP	90 °C	-40 C	5-SIP Module 4 Leads	36 V	ITE (Commercial)	90 mA	80 %	12 V	Isolated Module	1	1.1 W
Traco Power TRN 1-2421	36 V	1.6 kV	0.47 in	0.3 "	0.43 in	11 mm	7.7 mm	11.9 mm	Through Hole	SCP	90 °C	-40 C	5-SIP Module	18 V	ITE (Commercial)		79 %	5 V	Isolated Module	2		-5 V	100 mA	100 mA
Traco Power TRN 1-0522SM	13.2 V	1.6 kV	0.47 in	0.44 "	0.31 "	8 mm	11.3 mm	11.9 mm	Surface Mount	SCP	90 °C	-40 C	7-SMD Module	4.5 V	ITE (Commercial)		83 %	12 V	Isolated Module	2	1.1 W	-12 V		45 mA	45 mA
Traco Power TRN 1-4815	75 V	1.6 kV	0.47 in	0.3 "	0.43 in	11 mm	7.7 mm	11.9 mm	Through Hole	SCP	90 °C	-40 C	5-SIP Module 4 Leads	36 V	ITE (Commercial)	45 mA	81 %	24 V	Isolated Module	1	1.1 W
Traco Power TRN 1-2423SM	36 V	1.6 kV	0.47 in	0.44 "	0.31 "	8 mm	11.3 mm	11.9 mm	Surface Mount	SCP	90 °C	-40 C	7-SMD Module	18 V	ITE (Commercial)	35 mA	80 %	15 V	Isolated Module	2	1.1 W	-15 V				35 mA
