RM Series

Catalog

STANDARD CIRCULAR CONNECTOR CAP SCREW LOCK CIRCULAR CONNECTORS

Part	Features	Accessory Type	Color	Material	Shell Size - Insert [custom]	For Use With/Related Products	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Finish	Number of Rows [custom]	Pitch	Pitch	Height Above Board	Height Above Board	Mated Stacking Heights	Number of Positions	Shell Size - Insert [custom]	Cable Opening	Cable Opening	Material Flammability Rating	Fastening Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Insert Material	Voltage Rating	Contact Finish - Mating	Shell Finish	Shell Material	Orientation	Shielding	Contact Material	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Contact Termination	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Type	Contact Type	Termination	Mated Stacking Heights [Max] [z]	Mated Stacking Heights [Min] [z]	Height Above Board [z]	Height Above Board [z]
Hirose Electric Co Ltd RM21TP-C(71)	Metal Chain with Ring	Cap (Cover) Dust	Silver	Metal	21	RM Series Plug
Hirose Electric Co Ltd ER8-50P-0.8SV-5H(10)	Board Guide						Surface Mount	0.25 Ám	10 Áin	Header Center Strip Contacts	Gold	2	0.8 mm	0.031 in	8.91 mm	0.351 "	10 mm 12 mm	50
Hirose Electric Co Ltd RM12BJB-6S(81)	Backshell Cable Clamp		Silver				Free Hanging (In-Line)			Jack Female Sockets								6	12	8 mm	0.315 in	UL94 V-0	Bayonet Lock	5 A	85 °C	-25 °C	Metal	Polyphenylene Sulfide (PPS)	350 VAC 490 VDC	Silver	Nickel	Zinc Alloy	Keyed	Unshielded	Copper Alloy

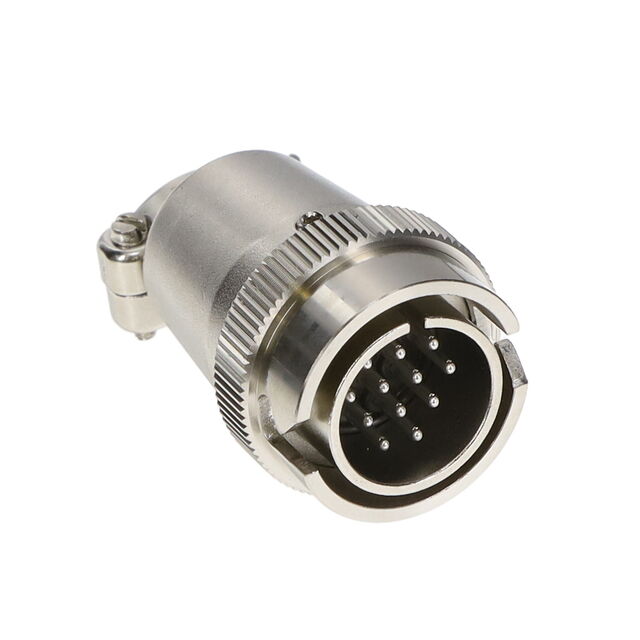

Hirose Electric Co Ltd RM15QPS-12PH(81)	Backshell Cable Clamp Coupling Nut		Silver		15		Free Hanging (In-Line)			Plug Male Pins								12				UL94 V-0	Push-Twist	5 A	85 °C	-25 °C	Metal	Diallyl Phthalate (DAP)	350 VAC 490 VDC	Silver	Nickel	Zinc Alloy	Keyed	Unshielded	Copper Alloy	0.453 in	0.256 in	6.5 mm	11.5 mm
Hirose Electric Co Ltd RM-PC-212											Silver																													Crimp	24 AWG	20 AWG	Signal Stamped	Pin
Hirose Electric Co Ltd RM-SC-122	Insulation Support										Silver																													Crimp	28 AWG	24 AWG	Signal Stamped	Socket

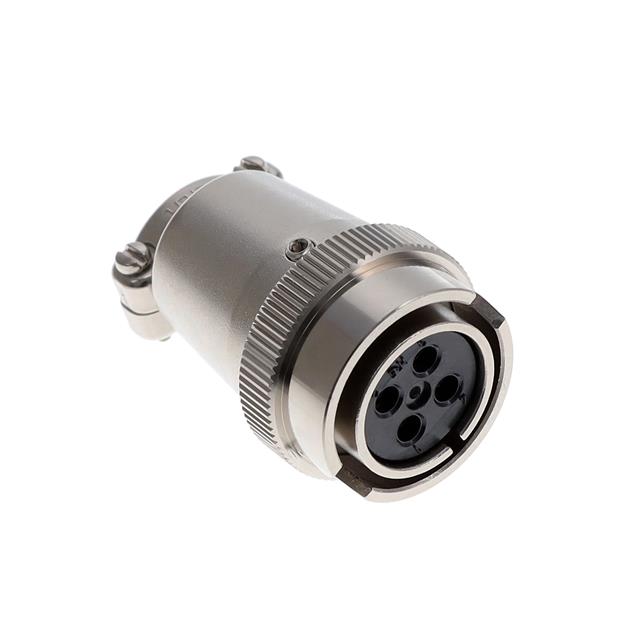

Hirose Electric Co Ltd RM15QPS-4SA(81)					15		Free Hanging (In-Line)			Plug Female Sockets								4		11.5 mm	0.453 in		Push-Twist	10 A	85 °C	-25 °C	Metal	Polyphenylene Sulfide (PPS)		Silver			Keyed	Unshielded	Copper Alloy										Solder
Hirose Electric Co Ltd RM12BPG-B(71)		Bushing	Black			RM Series													12
Hirose Electric Co Ltd ER8-50P-0.8SV-2H(10)	Board Guide						Surface Mount	0.25 Ám	10 Áin	Header Center Strip Contacts	Gold	2	0.8 mm	0.031 in				50																												9 mm	7 mm	5.97 mm	0.235 in
