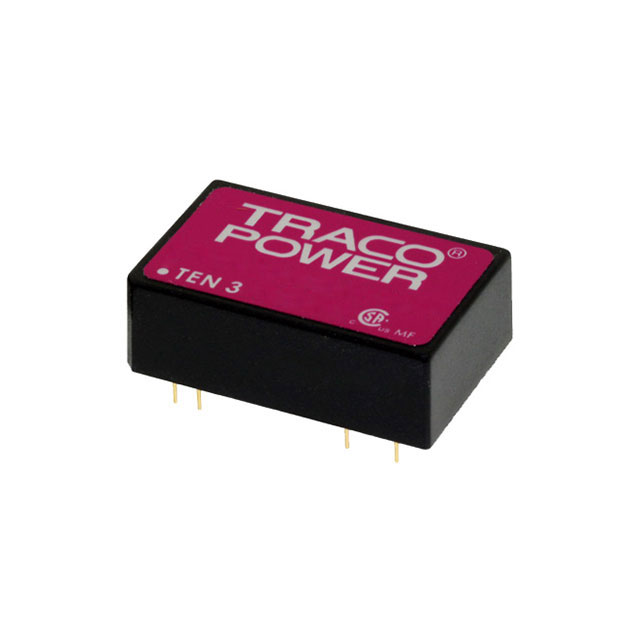

TEN 3 Series

Isolated DC/DC Converters - Through Hole

Manufacturer: Traco Power

Catalog

Isolated DC/DC Converters - Through Hole

Catalog

Isolated DC/DC Converters - Through Hole

Part	Power (Watts)	Approval Agency	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Type	Features	Applications	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Number of Outputs	Voltage - Isolation	Mounting Type	Current - Output (Max) [Max]	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2
Traco Power TEN 3-4810	2 W	CB cCSAus	76 %	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	Isolated Module	SCP	ITE (Commercial)	36 V	72 V	3.3 V	-40 °C	85 °C	24-DIP Module 7 Leads	1	1.5 kV	Through Hole	600 mA
Traco Power TEN 3-4812	3 W	CB cCSAus	84 %	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	Isolated Module	SCP	ITE (Commercial)	18 V	75 V	12 V	-40 °C	85 °C	24-DIP Module 7 Leads	1	1.5 kV	Through Hole	250 mA

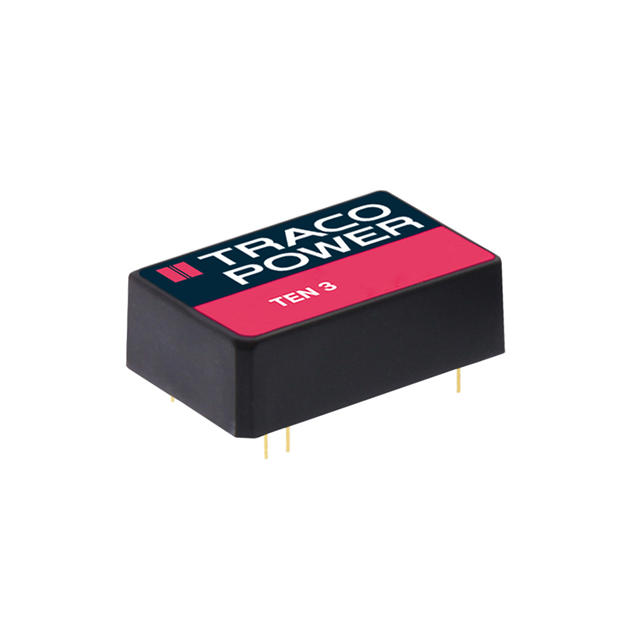

Traco Power TEN 3-2423	3 W	CB cCSAus		0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	Isolated Module	SCP	ITE (Commercial)	18 V	36 V	15 V	-40 °C	85 °C	24-DIP Module 8 Leads	2	1.5 kV	Through Hole		100 mA	100 mA	-15 V
Traco Power TEN 3-0511N	3 W	CB cCSAus	80 %	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	Isolated Module	SCP	ITE (Commercial)	4.5 V	9 V	5 V	-40 °C	85 °C	24-DIP Module 7 Leads	1	1.5 kV	Through Hole	600 mA
Traco Power TEN 3-1213	3 W	CB cCSAus	85 %	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	Isolated Module	SCP	ITE (Commercial)	9 V	18 V	15 V	-40 °C	85 °C	24-DIP Module 7 Leads	1	1.5 kV	Through Hole	200 mA
Traco Power TEN 3-2410	2 W	CB cCSAus	76 %	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	Isolated Module	SCP	ITE (Commercial)	18 V	36 V	3.3 V	-40 °C	85 °C	24-DIP Module 7 Leads	1	1.5 kV	Through Hole	600 mA
Traco Power TEN 3-0513	3 W	CB cCSAus		0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	Isolated Module	SCP	ITE (Commercial)	4.5 V	9 V	15 V	-40 °C	85 °C	24-DIP Module 7 Leads	1	1.5 kV	Through Hole	200 mA

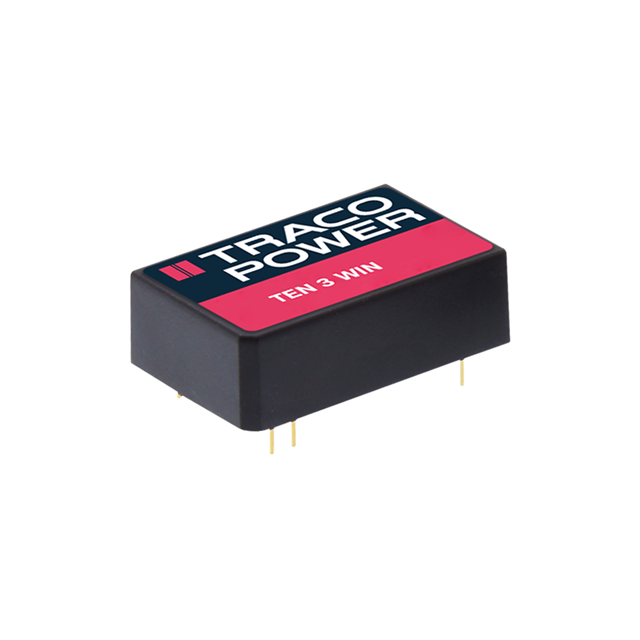

Traco Power TEN 3-2415WIN	3 W	CB cCSAus	81 %	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	Isolated Module	SCP	ITE (Commercial)	9 V	36 V	24 V	-40 °C	85 °C	23-DIP Module 7 Leads	1	1.5 kV 3000 V	Through Hole	125 mA
Traco Power TEN 3-4810WIN		CB cCSAus	77 %	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	Isolated Module	SCP	ITE (Commercial)	18 V	75 V	3.3 V	-40 C	85 °C	24-DIP Module 7 Leads	1	1.5 kV	Through Hole	750 mA
Traco Power TEN 3-4815N	3 W	CB cCSAus	84 %	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	Isolated Module	SCP	ITE (Commercial)	36 V	75 V	24 V	-40 °C	85 °C	24-DIP Module 7 Leads	1	1.5 kV	Through Hole	125 mA
