MCP-05 Series
Manufacturer: Omnetics
Beta
⌘K

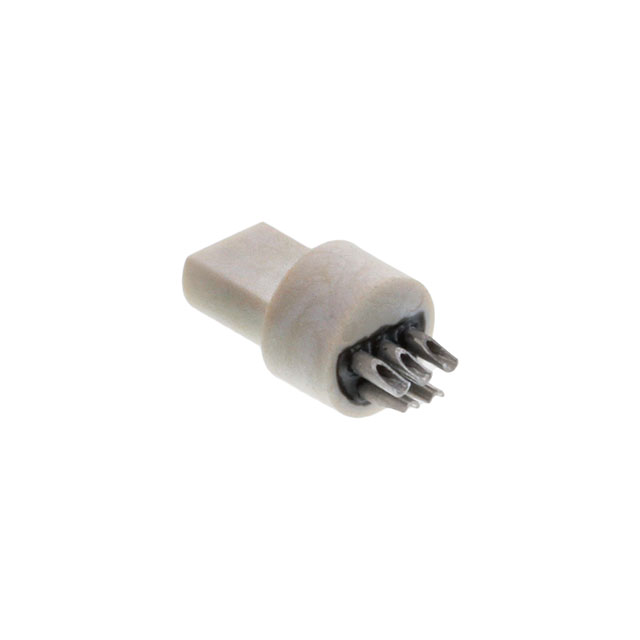

CONN PLUG MALE 5POS SOLDER CUP
| Part | Current Rating (Amps) | Shell Material | Orientation | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Primary Material | Mounting Type | Shielding | Number of Positions | Color | Contact Finish - Mating | Insert Material | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omnetics | 3 A | Liquid Crystal Polymer (LCP) | Keyed | Plug Male Pins | -55 C | 125 °C | Plastic | Free Hanging (In-Line) | Unshielded | 5 | Natural | Gold | Liquid Crystal Polymer (LCP) | Beryllium Copper | 50 µin | 1.27 µm | Push-Pull |
