AMED120 Series

Manufacturer: aimtec

Catalog

AC/DC DIN RAIL SUPPLY 2X24V 120W

Part	Input Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Number of Outputs	DC Voltage - Input (Min) [Min]	Current - Output (Max)	Power (Watts)	DC Voltage - Input (Max) [Max]	Applications	Standard Number	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Efficiency	Voltage - Isolation	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max) [Max]
aimtec AMED120-24SNZ	AC or DC	-20 ░C	60 °C	Universal Input	1	90 V	5 A	120 W	264 V	Household Appliances ITE (Commercial)	60335-1 62368-1	90 VAC	264 VAC	88 %	4000 V	24 V	4.72 "	35 mm	5.04 "	120 mm	1.38 in	128 mm

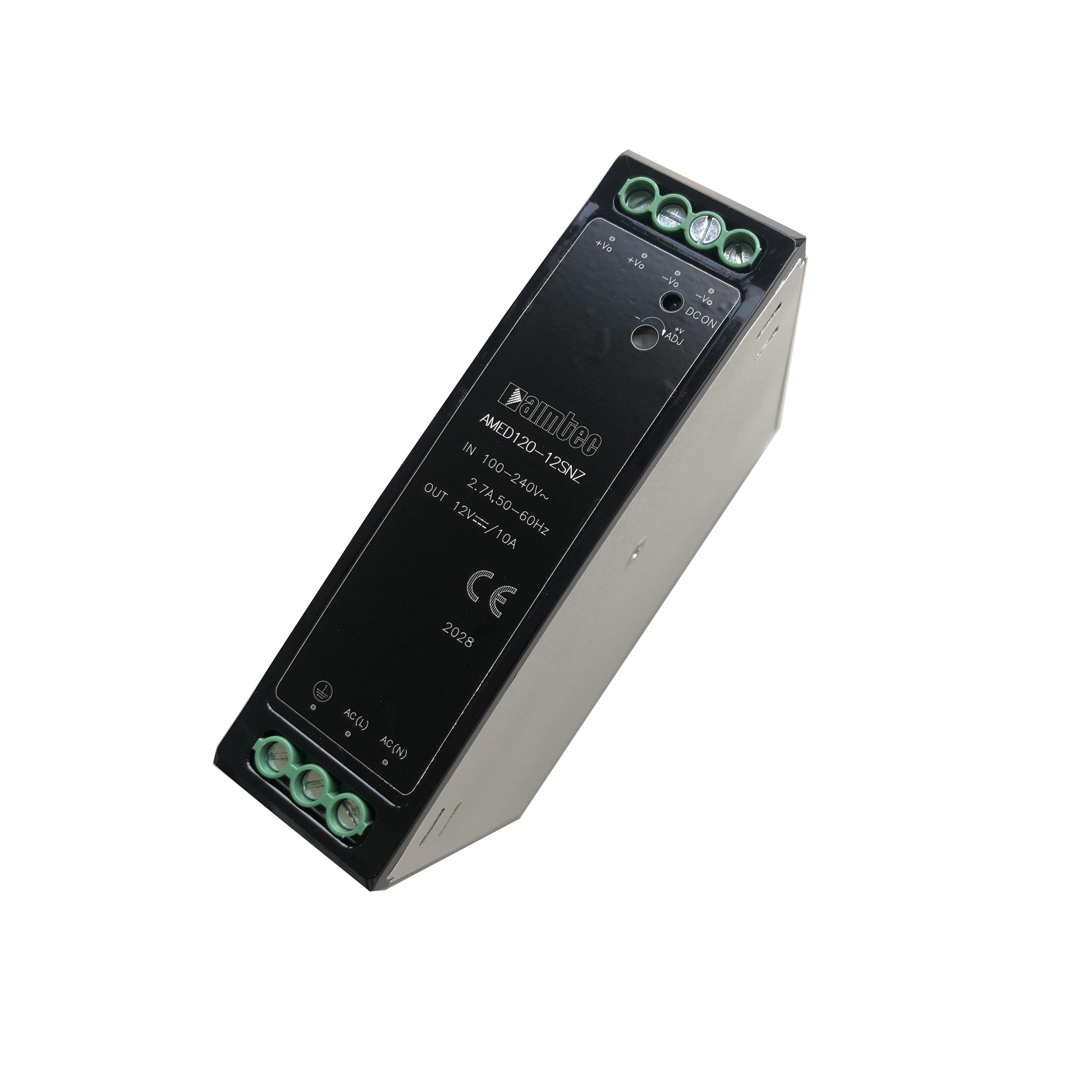

aimtec AMED120-12SNZ-B	AC or DC	-20 ░C	60 °C	Universal Input	1	90 V		120 W	264 V	Household Appliances ITE (Commercial)	60335-1 62368-1	90 VAC	264 VAC	85 %	4000 V	12 V	4.72 "	35 mm	5.04 "	120 mm	1.38 in	128 mm	10 A
