PO6 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

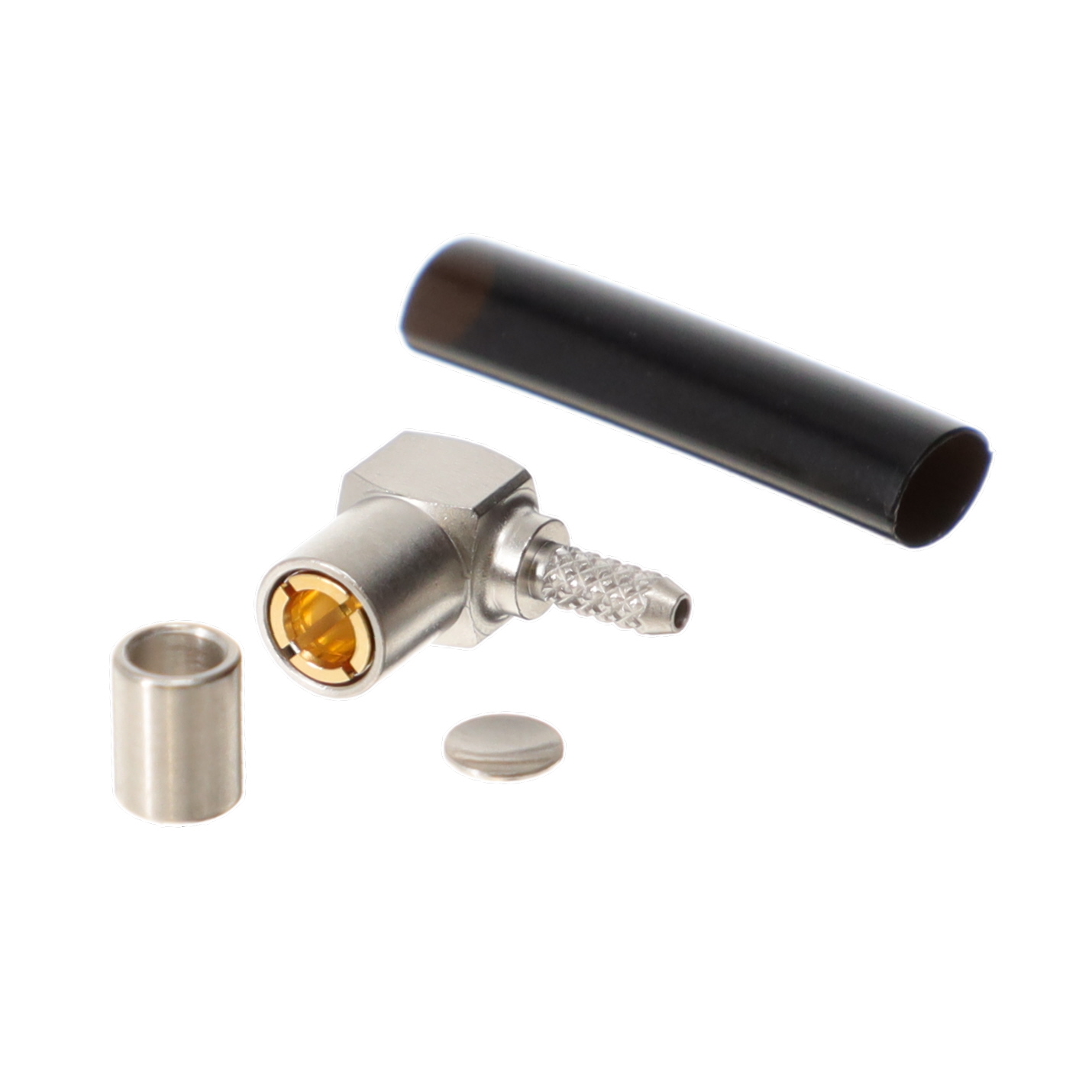

CONN RF COAX PLUG L-SHAPE
| Part | Mating Cycles | Center Contact Plating | Body Finish | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Cable Group | Shield Termination | Housing Color | Number of Ports | Frequency - Max [Max] | Fastening Type | Center Contact Material | Mounting Type | Connector Style | Connector Type | Contact Termination | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | |||||||||||||||||||
 Hirose Electric Co Ltd | 500 | Gold | Nickel | Polytetrafluoroethylene (PTFE) | 85 °C | -25 °C | Brass | RG-196A | Crimp | Silver | 1 | 2 GHz | Snap-On | Phosphor Bronze | Free Hanging (In-Line) Right Angle | Coaxial | Plug Male Pin | Solder | 50 Ohms |
 Hirose Electric Co Ltd | 500 | Gold | Gold | Polytetrafluoroethylene (PTFE) | 85 °C | -25 °C | Brass | Solder | Gold | 1 | 2 GHz | Snap-On | Beryllium Copper | Through Hole | Coaxial | Receptacle Female Socket | Solder | 50 Ohms |
