ADUM7641 Series

1kV RMS Six-Channel Digital Isolators (5/1 Channel Directionality)

Catalog

1kV RMS Six-Channel Digital Isolators (5/1 Channel Directionality)

Part	Inputs - Side 1/Side 2 [custom]	Inputs - Side 1/Side 2 [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case [custom]	Package / Case	Package / Case [custom]	Isolated Power	Type	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Supplier Device Package	Number of Channels [custom]	Voltage - Isolation	Common Mode Transient Immunity (Min) [Min]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Data Rate	Technology	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Pulse Width Distortion (Max) [Max]	Channel Type

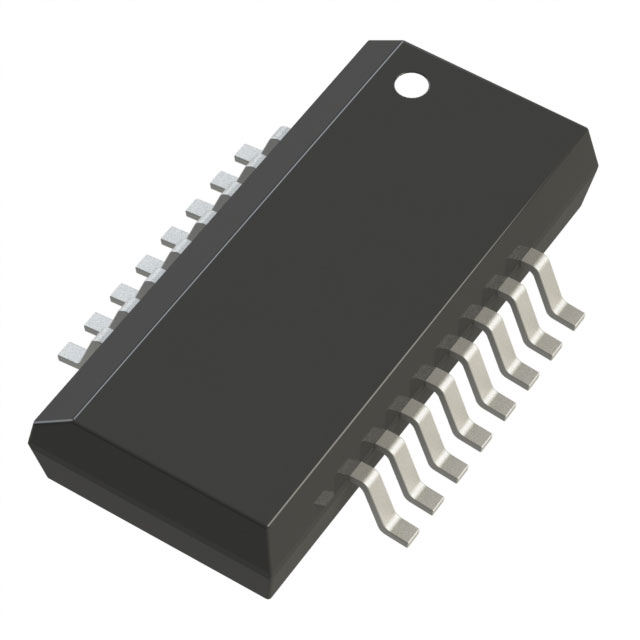

Analog Devices ADUM7641ARQZ-RL7	1	5	5.5 V	3 V	0.154 in	20-SSOP	3.9 mm		General Purpose	75 ns	75 ns	20-QSOP	6	1000 VAC	15 kV/µs	2 ns	2 ns	1 Mbps	Magnetic Coupling	-40 °C	105 ░C	Surface Mount	25 ns	Unidirectional

Catalog

1kV RMS Six-Channel Digital Isolators (5/1 Channel Directionality)

Key Features

• Small 20-lead QSOP

• 1000 V rms isolation rating

• Safety and regulatory approvals:

• UL 1577

• VISO= 1000 V rms for 1 minute

• Low power operation

• 3.3 V operation

• 1.6 mA per channel maximum at 0 Mbps to 1 Mbps

• 7.8 mA per channel maximum at 25 Mbps

• 5 V operation

• 2.2 mA per channel maximum at 0 Mbps to 1 Mbps

• 11.2 mA per channel maximum at 25 Mbps

• Bidirectional communication

• Up to 25 Mbps data rate (NRZ)

• 3 V/5 V level translation

• High temperature operation: 105°C

• High common-mode transient immunity: >15 kV/μs

Description

TheADuM7640/ ADuM7641 /ADuM7642/ADuM7643are 6-channel digital isolators based on the Analog Devices, Inc.,iCoupler®technology. These 1 kV digital isolation devices are packaged in a small 20-lead QSOP. They offer space savings and a lower price than 2.5 kV or 5 kV isolation solutions when only functional isolation is needed.This family, like many Analog Devices isolators, offers very low power consumption, using one-tenth to one-sixth the power of other digital isolators, with the supply voltage on either side ranging from 3.0 V to 5.5 V. Despite their low power consumption, the ADuM7640 / ADuM7641 / ADuM7642 / ADuM7643 provide low pulse width distortion (< 6 ns for C grade) and a channel-by-channel glitch filter to protect the device against extraneous noise disturbances. Four channel direction combinations are available with a maximum data rate of 1 Mbps or 25 Mbps. All products have a default output high logic state in the absence of input power.ApplicationsGeneral-purpose, multichannel isolationSPI interface/data converter isolationRS-232/RS-422/RS-485 transceiversIndustrial field bus isolation
