TIM 3.5 Series

Catalog

DC DC CONVERTER +/-12V 3.5W

Part	Power (Watts)	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)	Voltage - Input (Min) [Min]	Voltage - Output 1	Voltage - Isolation	Features	Voltage - Input (Max) [Max]	Mounting Type	Number of Outputs	Package / Case	Efficiency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 2	Type	Current - Output (Max) [Max]	Current - Output (Max)
Traco Power TIM 3.5-0922	3.5 W	Medical	90 °C	-40 °C	146 mA	4.5 V	12 V	5000 V	OVP Remote On/Off SCP	12 V	Through Hole	2	16-DIP Module 7 Leads	81 %	0.57 "	24.3 mm	0.96 "	10.2 mm	14.4 mm	0.4 "	-12 V	Isolated Module
Traco Power TIM 3.5-1212SM	3.5 W	Medical	90 °C	-40 °C		9 V	12 V	5000 V	OVP Remote On/Off SCP	18 V	Surface Mount	1	16-SMD Module 7 Leads		0.57 "	24.3 mm	0.96 "	10.5 mm	14.4 mm	0.41 in		Isolated Module	292 mA
Traco Power TIM 3.5-0915	3.5 W	Medical	90 °C	-40 °C		4.5 V	24 V	5000 V	OVP Remote On/Off SCP	12 V	Through Hole	1	16-DIP Module 7 Leads	81 %	0.57 "	24.3 mm	0.96 "	10.2 mm	14.4 mm	0.4 "		Isolated Module	146 mA
Traco Power TIM 3.5-2411SM	3.5 W	Medical	90 °C	-40 °C		18 V	5 V	5000 V	OVP Remote On/Off SCP	36 V	Surface Mount	1	16-SMD Module 7 Leads	79 %	0.57 "	24.3 mm	0.96 "	10.5 mm	14.4 mm	0.41 in		Isolated Module	700 mA
Traco Power TIM 3.5-0919	3.5 W	Medical	90 °C	-40 °C		4.5 V	9 V	5000 V	OVP Remote On/Off SCP	12 V	Through Hole	1	16-DIP Module 7 Leads	78 %	0.57 "	24.3 mm	0.96 "	10.2 mm	14.4 mm	0.4 "		Isolated Module	389 mA
Traco Power TIM 3.5-0911SM	3.5 W	Medical	90 °C	-40 °C		4.5 V	5 V	5000 V	OVP Remote On/Off SCP	12 V	Surface Mount	1	16-SMD Module 7 Leads	77 %	0.57 "	24.3 mm	0.96 "	10.5 mm	14.4 mm	0.41 in		Isolated Module	700 mA

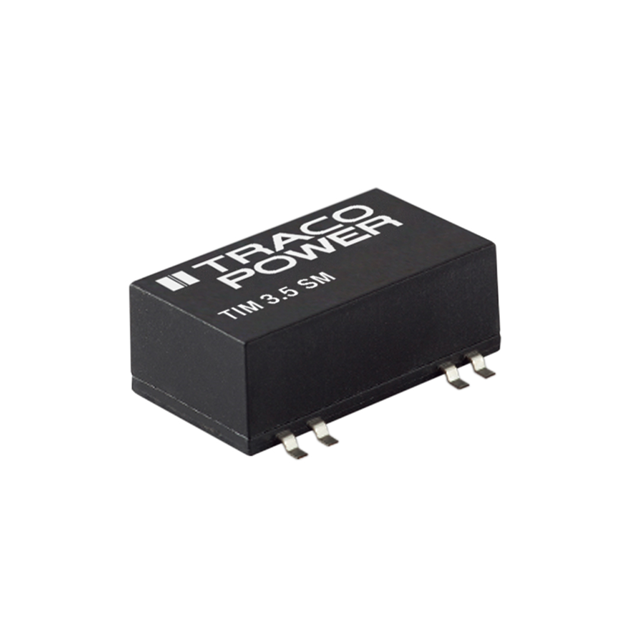

Traco Power TIM 3.5-0923SM	3.5 W	Medical	90 °C	-40 °C	117 mA	4.5 V	15 V	5000 V	OVP Remote On/Off SCP	12 V	Surface Mount	2	16-SMD Module 7 Leads	81 %	0.57 "	24.3 mm	0.96 "	10.5 mm	14.4 mm	0.41 in	-15 V	Isolated Module		117 mA

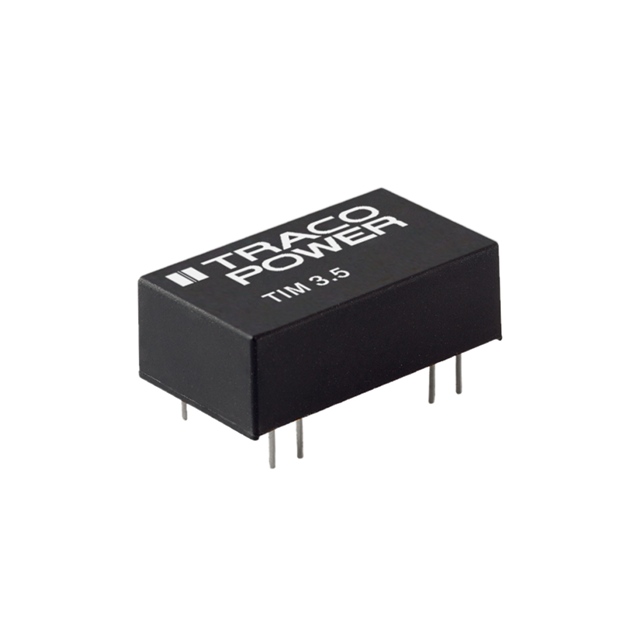

Traco Power TIM 3.5-2411	3.5 W	Medical	90 °C	-40 °C		18 V	5 V	5000 V	OVP Remote On/Off SCP	36 V	Through Hole	1	16-DIP Module 7 Leads	79 %	0.57 "	24.3 mm	0.96 "	10.2 mm	14.4 mm	0.4 "		Isolated Module	700 mA
Traco Power TIM 3.5-4813	3.5 W	Medical	90 °C	-40 °C		36 V	15 V	5000 V	OVP Remote On/Off SCP	75 V	Through Hole	1	16-DIP Module 7 Leads		0.57 "	24.3 mm	0.96 "	10.2 mm	14.4 mm	0.4 "		Isolated Module
Traco Power TIM 3.5-2412	3.5 W	Medical	90 °C	-40 °C		18 V	12 V	5000 V	OVP Remote On/Off SCP	36 V	Through Hole	1	16-DIP Module 7 Leads		0.57 "	24.3 mm	0.96 "	10.2 mm	14.4 mm	0.4 "		Isolated Module	292 mA
