RP13A Series

Catalog

CONN PLG HSG FMALE 20POS INLINE

Part	Shell Material	Orientation	Number of Positions	Connector Type	Material Flammability Rating	Includes	Note	Type	Contact Size	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Insert Material	Contact Shape	Shell Size - Insert [custom]	Contact Type	Features	Housing Color	Mounting Type	Contact Finish	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Contact Material	Contact Termination	Mounting Feature	Primary Material	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Voltage Rating	Contact Finish - Mating	Color

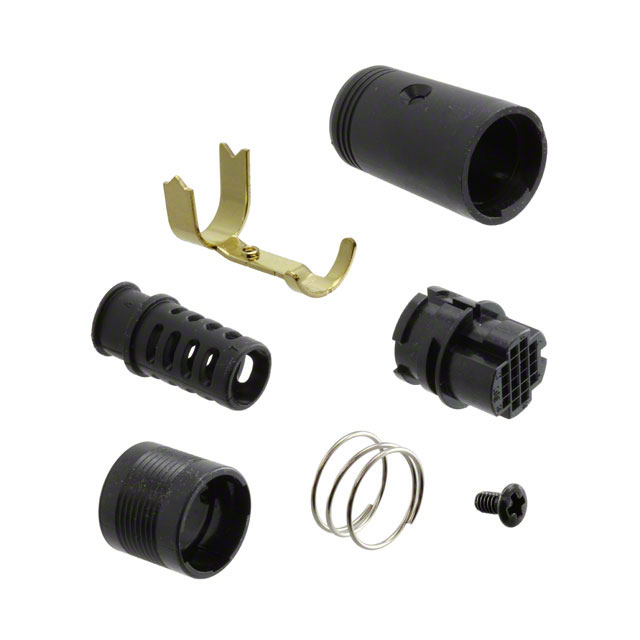

Hirose Electric Co Ltd RP13A-12PK-20SC(71)	Polycarbonate (PC)	Keyed	20	Plug Housing	UL94 V-0	1 Backshell 1 Cable Clamp 1 Connector 1 Screw 1 Spring 1 Strain Relief	Contacts Not Included	For Female Sockets	1.2 mm	Unshielded	-10 °C	60 °C	Push-Pull	Polycarbonate (PC)	Circular	12	Crimp	Backshell Cable Clamp Strain Relief	Black	Free Hanging (In-Line)
Hirose Electric Co Ltd RP13A-12PK-13SC	Polycarbonate (PC)	Keyed	13	Plug Housing	UL94 V-0	1 Backshell 1 Cable Clamp 1 Connector 1 Screw 1 Spring 1 Strain Relief	Contacts Not Included	For Female Sockets	1.2 mm 1.6 mm	Unshielded	-10 °C	60 °C	Push-Pull	Polycarbonate (PC)	Circular	12	Crimp	Backshell Cable Clamp Strain Relief	Black	Free Hanging (In-Line)
Hirose Electric Co Ltd RP13A-SC-222								Signal Stamped									Socket				Silver	24 AWG	28 AWG	Phosphor Bronze	Crimp

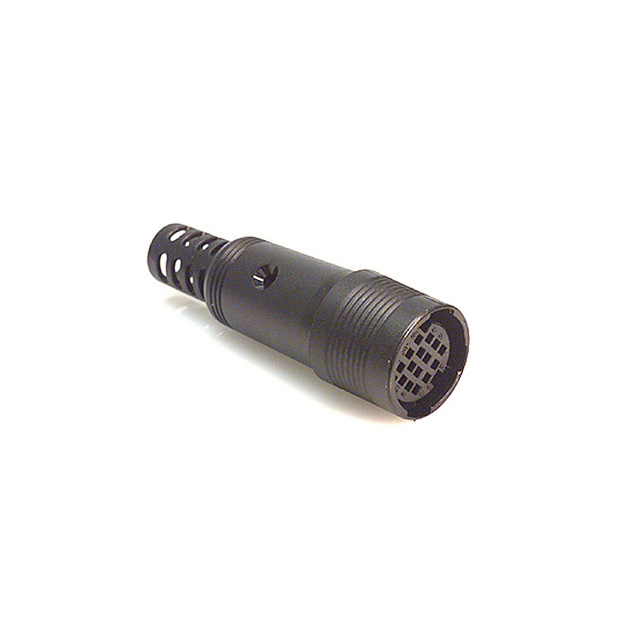

Hirose Electric Co Ltd RP13A-12PP-15SC	Polycarbonate (PC)	Keyed	15	Plug Housing	UL94 V-0	1 Backshell 1 Cable Clamp 1 Connector 1 Screw 1 Spring 1 Strain Relief	Contacts Not Included	For Female Sockets	1.2 mm	Unshielded	-10 °C	60 °C	Push-Pull	Polycarbonate (PC)	Circular	12	Crimp	Backshell Cable Clamp Strain Relief	Black	Free Hanging (In-Line)

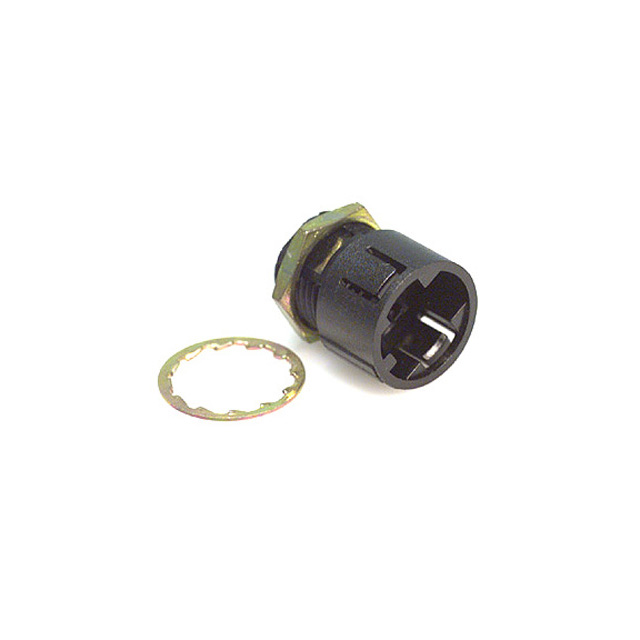

Hirose Electric Co Ltd RP13A-12RB-13PC(71)	Polycarbonate (PC)	Keyed	13	Receptacle Housing	UL94 V-0		Contacts Not Included	For Male Pins	1.2 mm 1.6 mm	Unshielded	-10 °C	60 °C	Push-Pull	Polycarbonate (PC)	Circular	12	Crimp		Black	Panel Mount						Bulkhead - Rear Side Nut
Hirose Electric Co Ltd RP13A-12R-13SC(72)

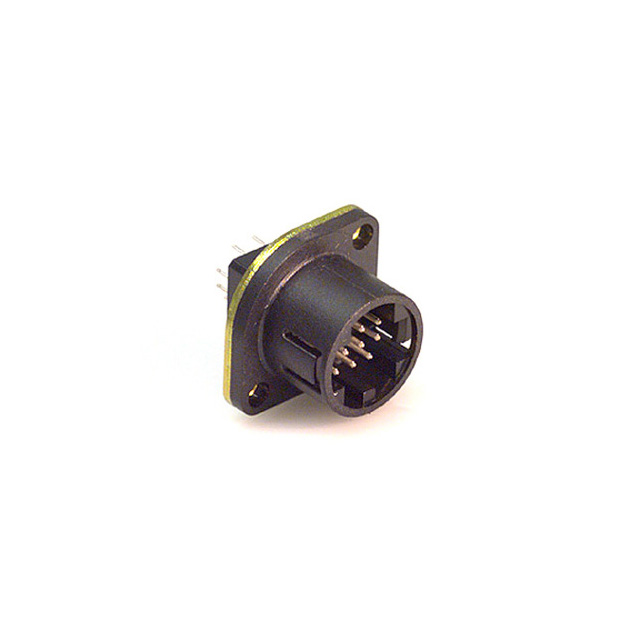

Hirose Electric Co Ltd RP13A-12RA-13PA(01)

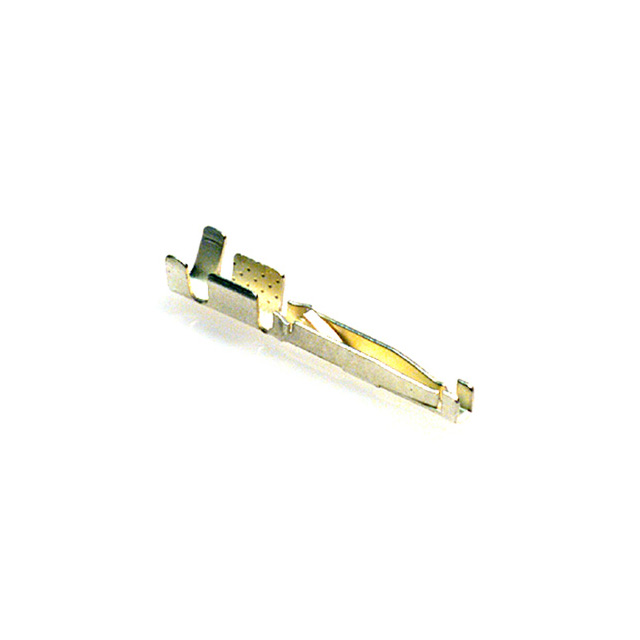

Hirose Electric Co Ltd RP13A-SC-112								Signal Stamped									Socket	Insulation Support			Silver	18 AWG	22 AWG	Phosphor Bronze	Crimp
Hirose Electric Co Ltd RP13A-12RA-13PA(71)	Polycarbonate (PC)	Keyed	13	Receptacle Male Pins	UL94 V-0						-10 °C	60 °C	Push-Pull	Polycarbonate (PC)		12				Panel Mount Through Hole				Phosphor Bronze		Flange	Plastic	Solder	31.5 µin	0.8 µm	2 A	100 VAC 140 VDC	Silver	Black
Hirose Electric Co Ltd RP13A-12PA-13SC(71)	Polycarbonate (PC)	Keyed	13	Plug Housing	UL94 V-0	1 Backshell 1 Cable Clamp 1 Connector 1 Screw 1 Spring 1 Strain Relief	Contacts Not Included	For Female Sockets	1.2 mm 1.6 mm	Unshielded	-10 °C	60 °C	Push-Pull	Polycarbonate (PC)	Circular	12	Crimp	Backshell Cable Clamp Strain Relief	Black	Free Hanging (In-Line)
