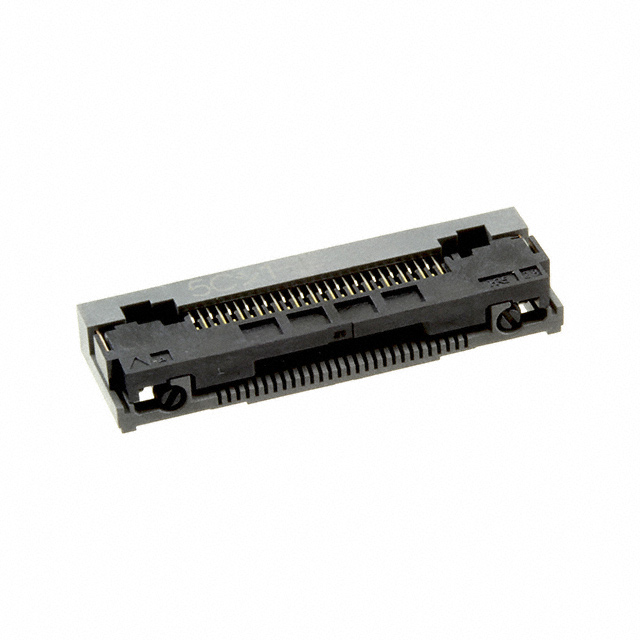

FH50 Series

Catalog

CONN FFC BOTTOM 28POS 0.5MM R/A

Part	Contact Finish Thickness	Contact Finish Thickness	Mating Cycles	Housing Color	Current Rating (Amps)	Actuator Color	Contact Material	Height Above Board [z]	Height Above Board [z]	Actuator Material	Connector/Contact Type	Contact Finish	Housing Material	FFC, FCB Thickness	Termination	Locking Feature	Cable End Type	Material Flammability Rating	Flat Flex Type	Voltage Rating	Mounting Type	Number of Positions	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Features
Hirose Electric Co Ltd FH50-28S-0.5SH	1.25 Áin	0.03 Ám	20	Gray	0.5 A	Black	Phosphor Bronze	3.7 mm	0.146 in	Liquid Crystal Polymer (LCP) Halogen Free	Contacts Bottom	Gold	Liquid Crystal Polymer (LCP) Halogen Free	0.3 mm	Solder	Flip Lock	Notched	UL94 V-0	FFC FPC	50 V	Right Angle Surface Mount	28	0.02 "	0.5 mm	-55 C	85 °C

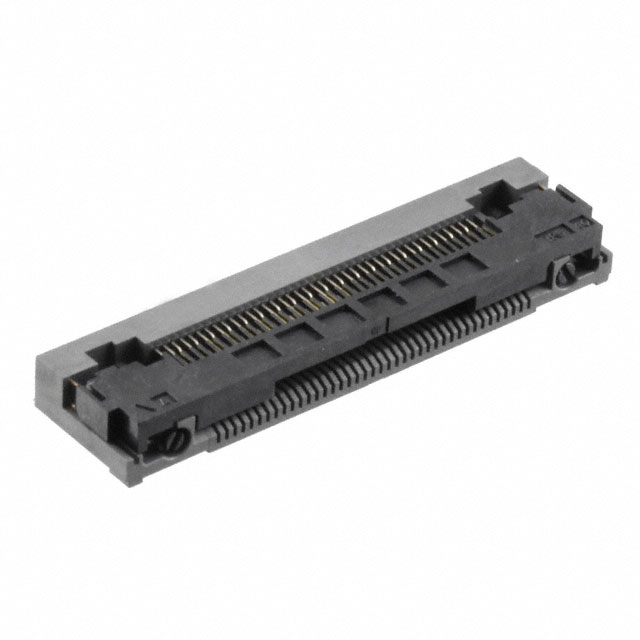

Hirose Electric Co Ltd FH50-40S-0.5SH	1.25 Áin	0.03 Ám	20	Gray	0.5 A	Black	Phosphor Bronze	3.7 mm	0.146 in	Liquid Crystal Polymer (LCP) Halogen Free	Contacts Bottom	Gold	Liquid Crystal Polymer (LCP) Halogen Free	0.3 mm	Solder	Flip Lock	Notched	UL94 V-0	FFC FPC	50 V	Right Angle Surface Mount	40	0.02 "	0.5 mm	-55 C	85 °C

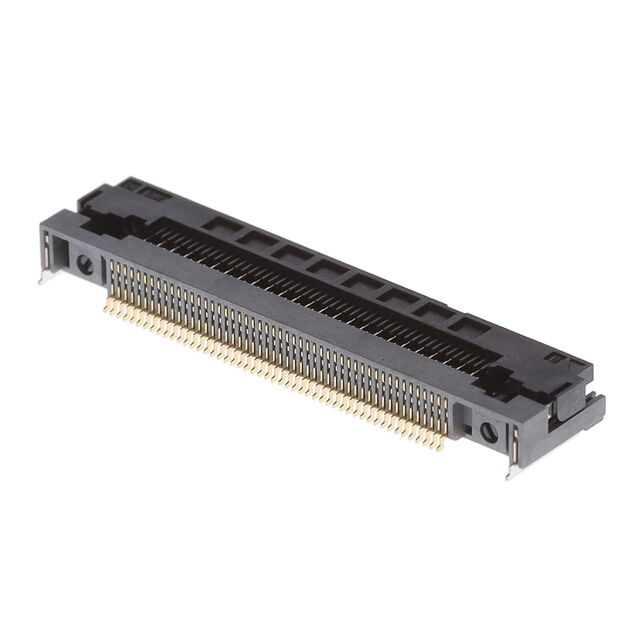

Hirose Electric Co Ltd FH50-50S-0.5SH	1.25 Áin	0.03 Ám	20	Gray	0.5 A	Black	Phosphor Bronze	3.7 mm	0.146 in	Liquid Crystal Polymer (LCP)	Receptacle	Gold	Liquid Crystal Polymer (LCP)	0.3 mm	Solder	Flip Lock	Notched	UL94 V-0	FPC	50 V	Right Angle Surface Mount	50	0.02 "	0.5 mm	-55 C	85 °C	Solder Retention Zero Insertion Force (ZIF)
Hirose Electric Co Ltd FH50-80S-0.5SH	1.25 Áin	0.03 Ám	20	Gray	0.5 A	Black	Phosphor Bronze	3.7 mm	0.146 in	Liquid Crystal Polymer (LCP)	Contacts Bottom	Gold	Liquid Crystal Polymer (LCP)	0.3 mm	Solder	Flip Lock	Notched	UL94 V-0	FFC FPC	50 V	Right Angle Surface Mount	80	0.02 "	0.5 mm	-55 C	85 °C	Solder Retention Zero Insertion Force (ZIF)
