307-019 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE SGL FMALE 19POS 0.156

...

Part	Termination Rows	Material - Insulation	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Features	Contact Material	Card Type	Number of Positions/Bay/Row	Operating Temperature [Min]	Operating Temperature [Max]	Color	Flange Feature	Read Out	Termination	Gender	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Type	Number of Positions	Contact Finish	Number of Rows	Number of Rows [custom]	Flange Feature [diameter]	Flange Feature [diameter]

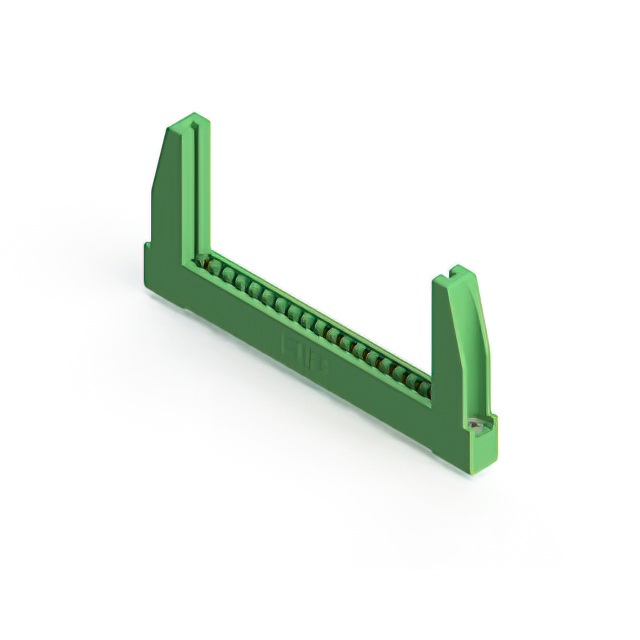

EDAC Inc. 307-019-545-178	1	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Card Guides	Copper Alloy	Non Specified - Single Edge	19	-40 C	105 ░C	Green	4-40 Flush Mount Threaded Insert Top Opening	Single	Wire Wrap	Female	0.25 Ám	10 Áin	Through Hole	Semi Bellows	19	Gold	1

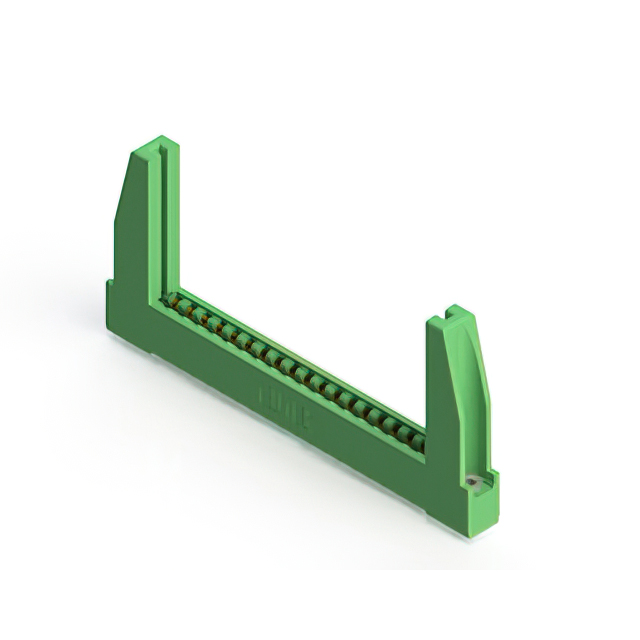

EDAC Inc. 307-019-557-178	1	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Card Guides	Copper Alloy	Non Specified - Dual Edge	19	-40 C	105 ░C	Green	4-40 Flush Mount Threaded Insert Top Opening	Dual	Wire Wrap	Female	0.25 Ám	10 Áin	Right Angle Through Hole	Semi Bellows	38	Gold		2
EDAC Inc. 307-019-447-102	1	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in		Copper Alloy	Non Specified - Single Edge	19	-40 C	105 ░C	Green	Flush Mount Top Opening Unthreaded	Single	Wire Wrap	Female			Through Hole	Semi Bellows	19	Tin	1		3.25 mm	0.128 "
EDAC Inc. 307-019-521-108	1	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in		Copper Alloy	Non Specified - Dual Edge	19	-40 C	105 ░C	Green	4-40 Flush Mount Threaded Insert Top Opening	Dual	Solder	Female	0.25 Ám	10 Áin	Through Hole	Semi Bellows	38	Gold		2
EDAC Inc. 307-019-521-112	1	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in		Copper Alloy	Non Specified - Dual Edge	19	-40 C	105 ░C	Green	Flush Mount Side Opening Unthreaded	Dual	Solder	Female	0.25 Ám	10 Áin	Through Hole	Semi Bellows	38	Gold		2	3.25 mm	0.128 "
EDAC Inc. 307-019-447-101	1	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in		Copper Alloy	Non Specified - Single Edge	19	-40 C	105 ░C	Green		Single	Wire Wrap	Female			Through Hole	Semi Bellows	19	Tin	1
EDAC Inc. 307-019-445-178	1	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	Card Guides	Copper Alloy	Non Specified - Single Edge	19	-40 C	105 ░C	Green	4-40 Flush Mount Threaded Insert Top Opening	Single	Wire Wrap	Female			Through Hole	Semi Bellows	19	Tin	1

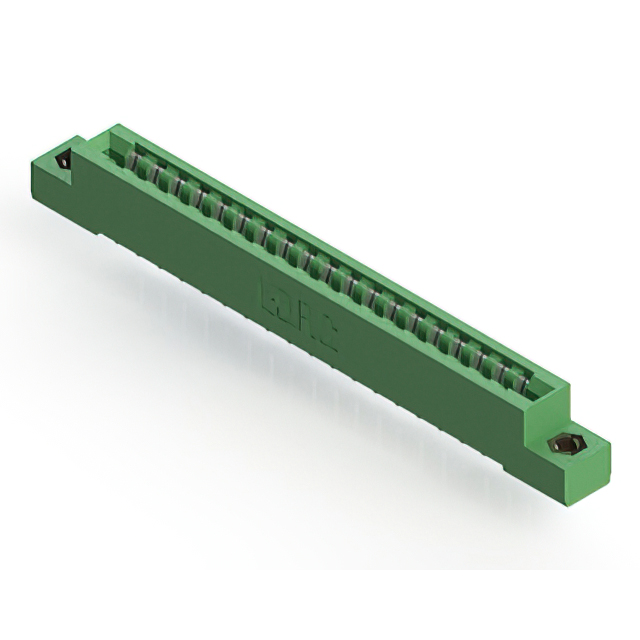

EDAC Inc. 307-019-431-107	1	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in		Copper Alloy	Non Specified - Single Edge	19	-40 C	105 ░C	Green	Flush Mount M3 Threaded Insert Top Opening	Single	Solder	Female			Through Hole	Semi Bellows	19	Tin	1
EDAC Inc. 307-019-441-112	1	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in		Copper Alloy	Non Specified - Dual Edge	19	-40 C	105 ░C	Green	Flush Mount Side Opening Unthreaded	Dual	Wire Wrap	Female			Through Hole	Semi Bellows	38	Tin		2	3.25 mm	0.128 "

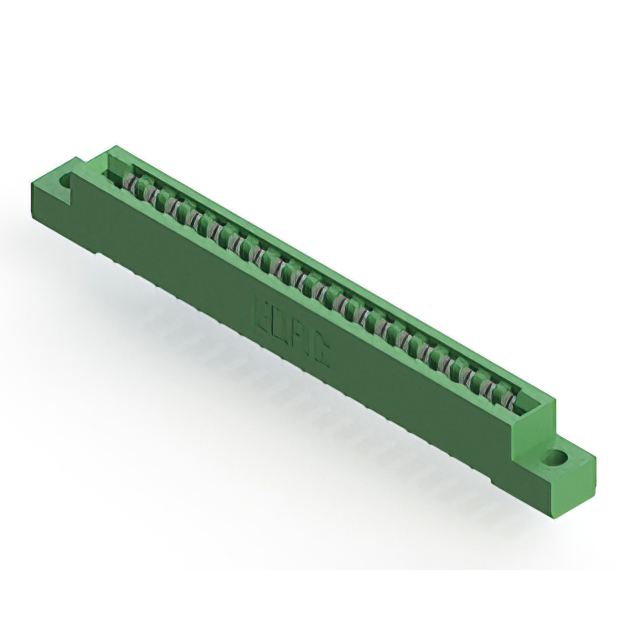

EDAC Inc. 307-019-453-102	1	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in		Copper Alloy	Non Specified - Dual Edge	19	-40 C	105 ░C	Green	Flush Mount Top Opening Unthreaded	Dual	Solder	Female			Right Angle Through Hole	Semi Bellows	38	Tin		2	3.25 mm	0.128 "
