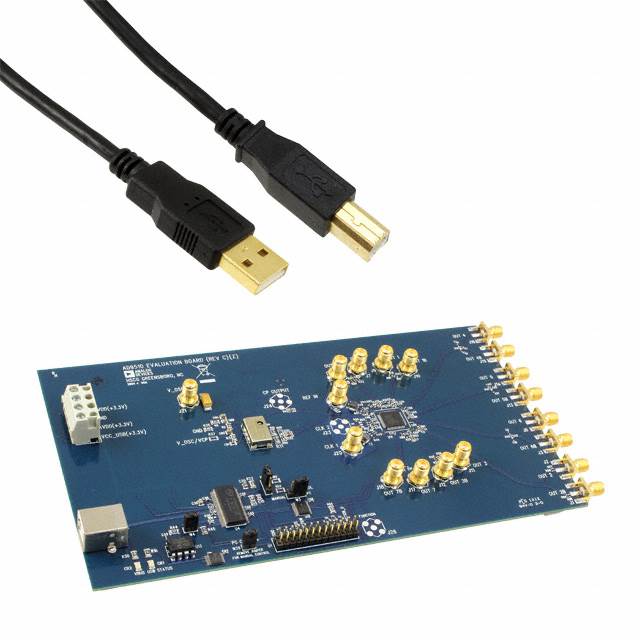

AD9510 Series
1.2 GHz Clock Distribution IC, PLL Core, Dividers, Delay Adjust, Eight Outputs
Manufacturer: Analog Devices
Catalog
1.2 GHz Clock Distribution IC, PLL Core, Dividers, Delay Adjust, Eight Outputs
Key Features
• Low phase noise phase-locked loop coreReference input frequencies to 250 MHzProgrammable dual modulus prescalerProgrammable charge pump (CP) currentSeparate CP supply (VCPS) extends tuning range
• Reference input frequencies to 250 MHz
• Programmable dual modulus prescaler
• Programmable charge pump (CP) current
• Separate CP supply (VCPS) extends tuning range
• Two 1.6 GHz, differential clock inputs
• 8 programmable dividers, 1 to 32, all integers
• Phase select for output-to-output coarse delay adjust
• 4 independent 1.2 GHz LVPECL outputsAdditive output jitter of 225 fs rms
• Additive output jitter of 225 fs rms
• 4 independent 800 MHz low voltage differential signaling(LVDS) or 250 MHz complementary metal oxide conductor(CMOS) clock outputsAdditive output jitter of 275 fs rmsFine delay adjust on 2 LVDS/CMOS outputs
• (LVDS) or 250 MHz complementary metal oxide conductor
• (CMOS) clock outputs
• Additive output jitter of 275 fs rms
• Fine delay adjust on 2 LVDS/CMOS outputs
• Serial control port
• Space-saving 64-lead LFCSP
Description
AI
The AD9510 provides a multi-output clock distribution function along with an on-chip phase-locked loop (PLL) core. The design emphasizes low jitter and phase noise to maximize data converter performance. Other applications with demanding phase noise and jitter requirements also benefit from this device.The PLL section consists of a programmable reference divider (R); a low noise, phase frequency detector (PFD); a precision charge pump (CP); and a programmable feedback divider (N). By connecting an external voltage-controlled crystal oscillator (VCXO) or voltage-controlled oscillator (VCO) to the CLK2 and CLK2B pins, frequencies of up to 1.6 GHz can be synchronized to the input reference.There are eight independent clock outputs. Four outputs are low voltage positive emitter-coupled logic (LVPECL) at 1.2 GHz, and four are selectable as either LVDS (800 MHz) or CMOS (250 MHz) levels.Each output has a programmable divider that can be bypassed or set to divide by any integer up to 32. The phase of one clock output relative to another clock output can be varied by means of a divider phase select function that serves as a coarse timing adjustment. Two of the LVDS/CMOS outputs feature programmable delay elements with full-scale ranges up to 8 ns of delay. This fine tuning delay block has 5-bit resolution, giving 25 possible delays from which to choose for each full-scale setting (Register 0x36 and Register 0x3A = 00000b to 11000b).The AD9510 is ideally suited for data converter clocking applications where maximum converter performance is achieved by encode signals with subpicosecond jitter.The AD9510 is available in a 64-lead LFCSP and can be operated from a single 3.3 V supply. An external VCO, which requires an extended voltage range, can be accommodated by connecting the charge pump supply (VCP) to 5.5 V. The temperature range is −40°C to +85°C.ApplicationsLow jitter, low phase noise clock distributionClocking high speed ADCs, DACs, DDSs, DDCs, DUCs, and mixed-signal front ends (MxFEs)High performance wireless transceiversHigh performance instrumentationBroadband infrastructure
