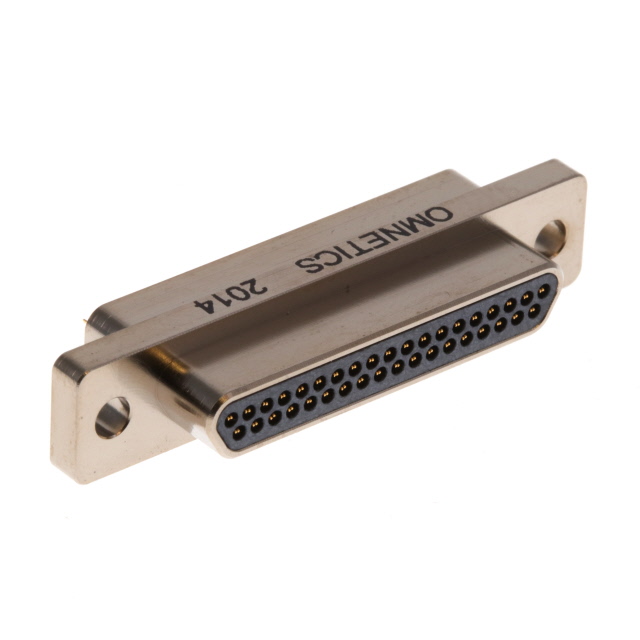

MMDP-037 Series
Manufacturer: Omnetics
Beta
⌘K

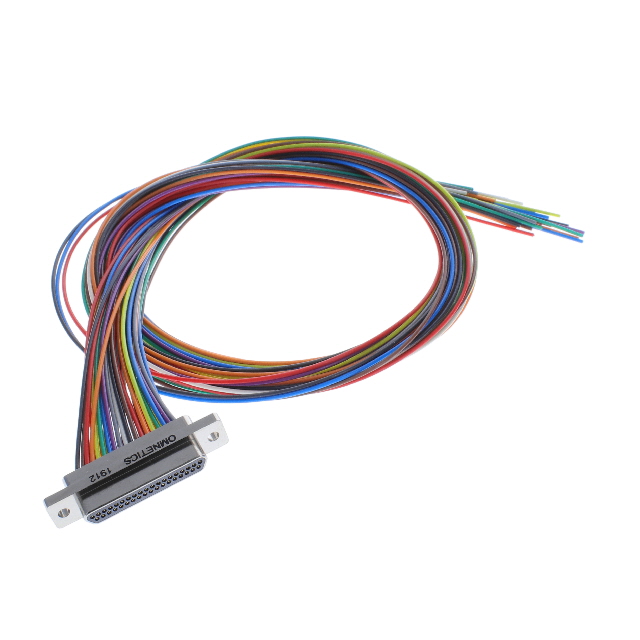

CABLE ASSY D-MIC-D 37P 457.2MM
| Part | 2nd Connector | Contact Finish Thickness | Contact Finish Thickness | Color | Type | Shielding | 1st Connector | Number of Positions | Length [x] | Length [x] | Contact Finish | Contact Material | Dielectric Material | Shell Material, Finish | Operating Temperature [Min] | Operating Temperature [Max] | Contact Form | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Number of Rows [custom] | Connector Style | Contact Type | Flange Feature | Primary Material | Mounting Type | Connector Type | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omnetics | Individual Wire Leads | 50 µin | 1.27 µm | Individual Multiple | D-Type Micro-D | Unshielded | Male Pins Plug | 37 | 457.2 mm | 1.5 ft | Gold | ||||||||||||||||
 Omnetics | 50 µin | 1.27 µm | 37 | Gold | Copper Alloy | Thermoplastic | Aluminum Electroless Nickel Plated | -55 C | 125 °C | Stamped | 0.05 | 0.05 | 2 | D-Type Micro-D | Signal | Housing/Shell (Unthreaded) | Metal | Free Hanging (In-Line) | Plug Male Pins | 3 A |
