CoaXPress, CoaXPress 2.0
Key Features
- 1.25 Gbps to 12.5Gbps Video Downlink
- Up to 40Mbps Uplink for camera control
- Supports distance up to 212m @ 1.25Gbps over RG11 Coax
- Supports distance up to 40m @ 12.5Gbps over RG11 Coax
- Enables nanosecond precise triggering for camera control
- Also supports 8b/10b coding up to 12.5Gbps
- Support power over coax cable up to 900mA DC
- Supports new CoaXPress 2.0 Standard and backward compatible to CoaXPress 1.1 devices
- Integrated cable driver, equalizer and CDR (clock data recovery) in a single device
Description
AI

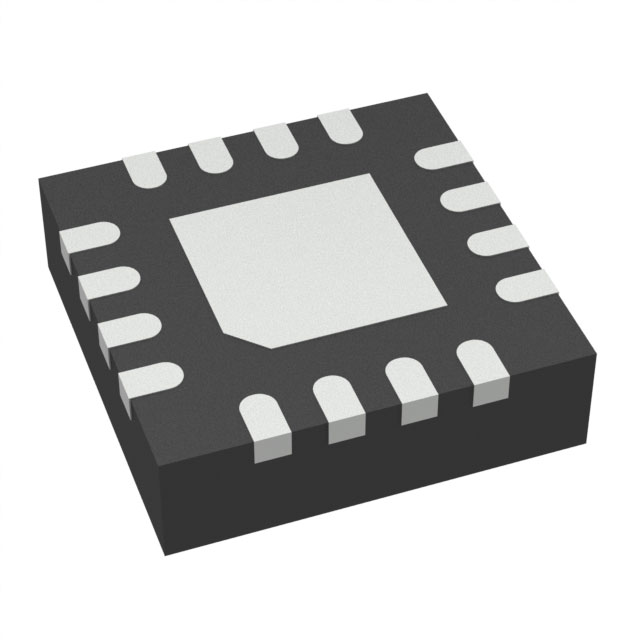

The EQCO125X40 is a CoaXPress 2.0 Transmitter/Receiver with integrated equalizer, CDR (reclocker) and Cable Driver. It is designed to transmit/receive signals on a single cable or PCB trace pair. In one direction an 8b/10b coded downlink signal is transmitted/received between 1.25 Gbps and 12.5 Gbps. In the opposite direction a lower speed 8b/10b coded uplink signal is transmitted/received at 20.833 Mbps or 41.666 Mbps. The EQCO125X40 can be used as a CoaXPress transmitter inside a camera, as a CoaXPress receiver inside a frame grabber and as a CoaXPress repeater inside an active coax cable or link.
To compare this product to other Microchip CoaXPress 2.0 offerings, please see the [**CoaXPress 2.0 Product Comparison**](https://www.microchip.com/en-us/products/high-speed-networking-and-video/data-and-video-transceivers/supported-video-protocols/coaxpress-technology#compare-products) table.
