DF12 (3.0) Series

Catalog

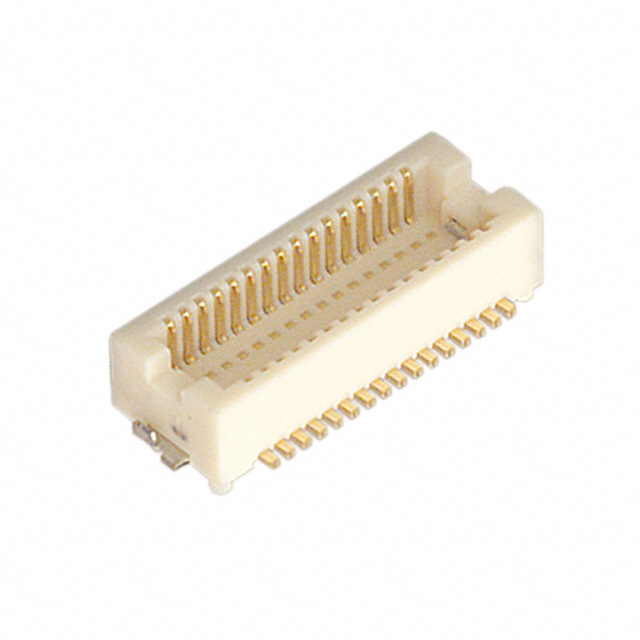

CONN HDR 32POS SMD GOLD

Part	Features	Height Above Board	Height Above Board [z]	Mounting Type	Mated Stacking Heights	Contact Finish	Connector Type	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Height Above Board [z]	Number of Positions
Hirose Electric Co Ltd DF12(3.0)-32DP-0.5V(86)	Board Guide Solder Retention	2.3 mm	0.091 "	Surface Mount	3 mm	Gold	Header Outer Shroud Contacts	2	0.203 çm	8 µin	0.02 "	0.5 mm
Hirose Electric Co Ltd DF12(3.0)-32DP-0.5V(80)	Board Guide Solder Retention	2.3 mm	0.091 "	Surface Mount	3 mm	Gold	Header Outer Shroud Contacts	2			0.02 "	0.5 mm
Hirose Electric Co Ltd DF12(3.0)-80DP-0.5V(87)
Hirose Electric Co Ltd DF12(3.0)-40DS-0.5V(86)	Board Guide Solder Retention		0.087 in	Surface Mount	3 mm	Gold	Receptacle Center Strip Contacts	2	0.203 çm	8 µin	0.02 "	0.5 mm	2.2 mm	40
Hirose Electric Co Ltd DF12(3.0)-40DP-0.5V(86)	Board Guide Solder Retention	2.3 mm	0.091 "	Surface Mount	3 mm	Gold	Header Outer Shroud Contacts	2	0.203 çm	8 µin	0.02 "	0.5 mm		40

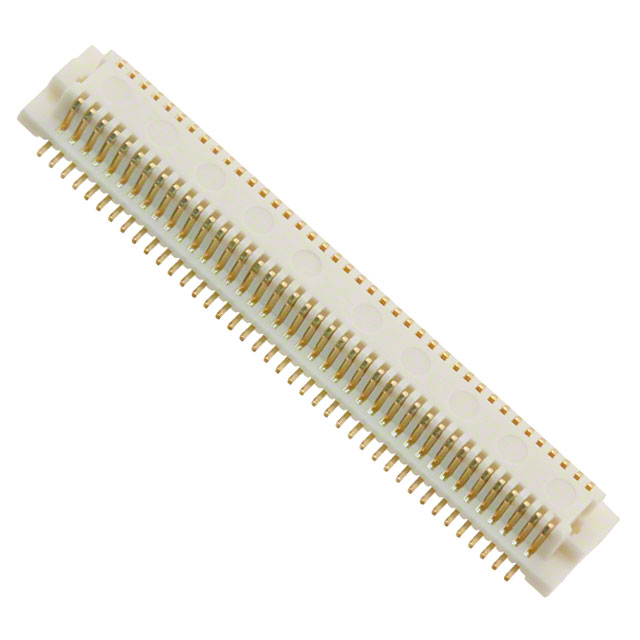

Hirose Electric Co Ltd DF12(3.0)-80DS-0.5V(86)	Board Guide Solder Retention		0.087 in	Surface Mount	3 mm	Gold	Receptacle Center Strip Contacts	2	0.203 çm	8 µin	0.02 "	0.5 mm	2.2 mm	80

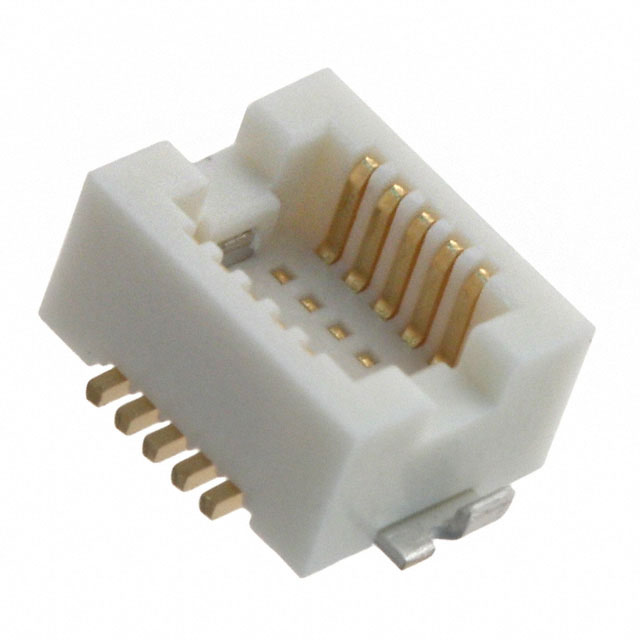

Hirose Electric Co Ltd DF12(3.0)-10DP-0.5V(86)	Board Guide Solder Retention	2.3 mm	0.091 "	Surface Mount	3 mm	Gold	Header Outer Shroud Contacts	2	0.203 çm	8 µin	0.02 "	0.5 mm		10
Hirose Electric Co Ltd DF12(3.0)-20DS-0.5V(81)	Board Guide Solder Retention		0.087 in	Surface Mount	3 mm	Gold	Receptacle Center Strip Contacts	2	0.203 çm	8 µin	0.02 "	0.5 mm	2.2 mm	20
Hirose Electric Co Ltd DF12(3.0)-30DP-0.5V(92)	Board Guide Solder Retention	2.3 mm	0.091 "	Surface Mount	3 mm	Gold	Header Outer Shroud Contacts	2	0.203 çm	8 µin	0.02 "	0.5 mm		30
Hirose Electric Co Ltd DF12(3.0)-30DP-0.5V(86)	Board Guide Solder Retention	2.3 mm	0.091 "	Surface Mount	3 mm	Gold	Header Outer Shroud Contacts	2	0.203 çm	8 µin	0.02 "	0.5 mm		30
