E2203S Series

Catalog

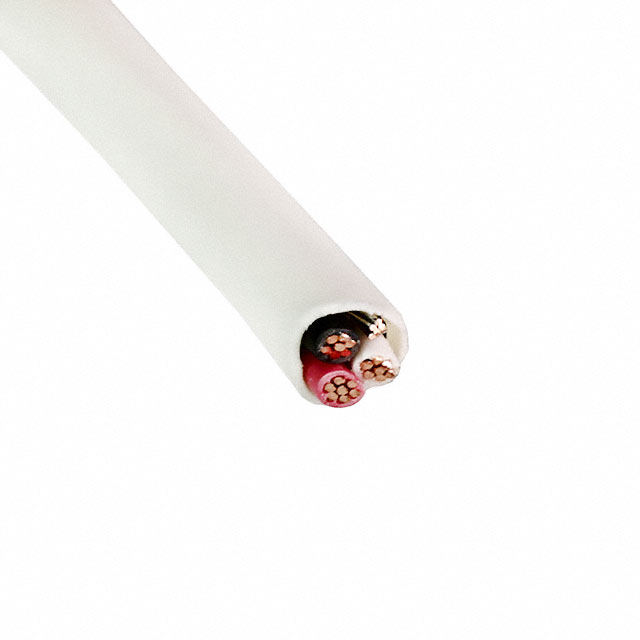

CABLE 3COND 18AWG WHITE SHLD

Part	Jacket Color	Shield Type	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Max]	Features	Number of Conductors	Length	Length	Conductor Insulation	Jacket (Insulation) Thickness [x]	Jacket (Insulation) Thickness [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Voltage	Jacket (Insulation) Material	Cable Type	Shield Coverage	Shield Material	Usage	Length [x]	Length [x]
Prysmian Group E2203S.30.02	White	Foil	Copper Bare	26 AWG	7	75 ░C	Drain Wire	3	304.8 m	1000 ft	Poly-Vinyl Chloride (PVC)	0.381 mm	0.015 in	0.169 in	4.29 mm	18 AWG	300 VDC	Plenum Poly-Vinyl Chloride (PVC)	Multi-Conductor
Prysmian Group E2203S.69.86	Natural	Foil	Copper Bare	26 AWG	7	75 ░C	Drain Wire	3	304.8 m	1000 ft	Poly-Vinyl Chloride (PVC)	0.381 mm	0.015 in	0.169 in	4.29 mm	18 AWG	300 VDC	Plenum Poly-Vinyl Chloride (PVC)	Multi-Conductor	100 %	Flexfoil®
Prysmian Group E2203S.41.86	Natural	Foil	Copper Bare	26 AWG	7	75 ░C	Drain Wire	3	15.24 m 304.8 m	50 ft 1000 ft	Poly-Vinyl Chloride (PVC)	0.381 mm	0.015 in	0.169 in	4.29 mm	18 AWG	300 VDC	Plenum Poly-Vinyl Chloride (PVC)	Multi-Conductor	100 %	Flexfoil®	Alarm Security Sound	100 ft	30.5 m
Prysmian Group E2203S.30.02	White	Foil	Copper Bare	26 AWG	7	75 ░C	Drain Wire	3	304.8 m	1000 ft	Poly-Vinyl Chloride (PVC)	0.381 mm	0.015 in	0.169 in	4.29 mm	18 AWG	300 VDC	Plenum Poly-Vinyl Chloride (PVC)	Multi-Conductor	100 %	Flexfoil®
Prysmian Group E2203S.41.02	White	Foil	Copper Bare	26 AWG	7	75 ░C	Drain Wire	3	15.24 m 304.8 m	50 ft 1000 ft	Poly-Vinyl Chloride (PVC)	0.381 mm	0.015 in	0.169 in	4.29 mm	18 AWG	300 VDC	Plenum Poly-Vinyl Chloride (PVC)	Multi-Conductor			Alarm Security Sound	25 ft 100 ft	7.62 m 30.5 m
Prysmian Group E2203S.30.86	Natural	Foil	Copper Bare	26 AWG	7	75 ░C	Drain Wire	3	304.8 m	1000 ft	Poly-Vinyl Chloride (PVC)	0.381 mm	0.015 in	0.169 in	4.29 mm	18 AWG	300 VDC	Plenum Poly-Vinyl Chloride (PVC)	Multi-Conductor	100 %	Flexfoil®	Alarm Security Sound
Prysmian Group E2203S.30.86	Natural	Foil	Copper Bare	26 AWG	7	75 ░C	Drain Wire	3	304.8 m	1000 ft	Poly-Vinyl Chloride (PVC)	0.381 mm	0.015 in	0.169 in	4.29 mm	18 AWG	300 VDC	Plenum Poly-Vinyl Chloride (PVC)	Multi-Conductor			Alarm Security Sound
Prysmian Group E2203S.41.86	Natural	Foil	Copper Bare	26 AWG	7	75 ░C	Drain Wire	3	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	Poly-Vinyl Chloride (PVC)	0.381 mm	0.015 in	0.169 in	4.29 mm	18 AWG	300 VDC	Plenum Poly-Vinyl Chloride (PVC)	Multi-Conductor			Alarm Security Sound	25 ft 100 ft	7.62 m 30.5 m
Prysmian Group E2203S.69.86	Natural	Foil	Copper Bare	26 AWG	7	75 ░C	Drain Wire	3	304.8 m	1000 ft	Poly-Vinyl Chloride (PVC)	0.381 mm	0.015 in	0.169 in	4.29 mm	18 AWG	300 VDC	Plenum Poly-Vinyl Chloride (PVC)	Multi-Conductor
Prysmian Group E2203S.41.02	White	Foil	Copper Bare	26 AWG	7	75 ░C	Drain Wire	3	15.24 m 304.8 m	50 ft 1000 ft	Poly-Vinyl Chloride (PVC)	0.381 mm	0.015 in	0.169 in	4.29 mm	18 AWG	300 VDC	Plenum Poly-Vinyl Chloride (PVC)	Multi-Conductor	100 %	Flexfoil®	Alarm Security Sound	25 ft 100 ft	7.62 m 30.5 m
