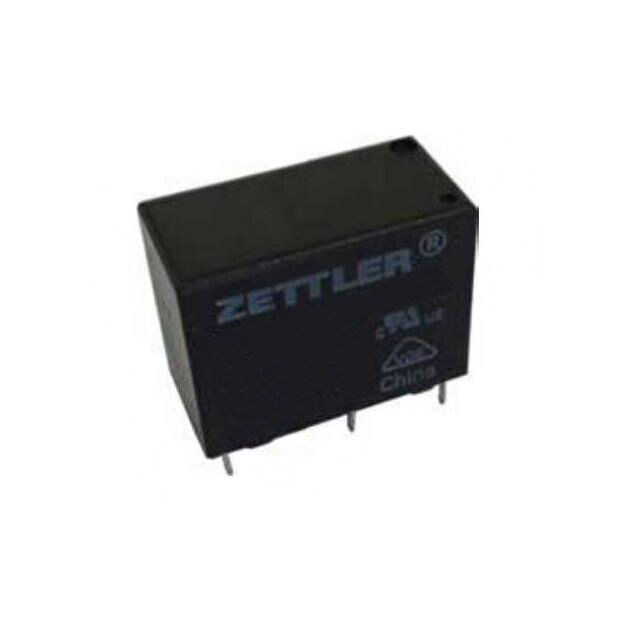

AZ9403-1C Series
Manufacturer: American Zettler
Beta
⌘K
RELAY GEN PURPOSE SPDT 10A 5V
| Part | Coil Resistance | Operate Time | Coil Current | Seal Rating | Switching Voltage [Max] | Contact Rating (Current) | Approval Agency | Must Release Voltage | Mounting Type | Contact Form | Coil Voltage | Coil Insulation | Release Time | Termination Style | Contact Material | Must Operate Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Load - Max Switching | Coil Type | Relay Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | 55 Ohms | 8 ms | 90.9 mA | Sealed - Fully | 150 VDC 400 VAC | 10 A | UL VDE | 0.25 VDC | Through Hole | SPDT (1 Form C) | 5 VDC | Class F | 5 ms | PC Pin | Silver Tin Oxide (AgSnO) | 3.8 VDC | -40 C | 110 °C | 150 W 2770 VA | Non Latching | General Purpose |
 American Zettler | 320 Ohms | 8 ms | 0.0375 A | Sealed - Fully | 150 VDC 400 VAC | 3 A | UL VDE | 0.6 VDC | Through Hole | SPDT (1 Form C) | 12 VDC | Class F | 5 ms | PC Pin | Silver Tin Oxide (AgSnO) | 9 VDC | -40 C | 110 °C | 150 W 2770 VA | Non Latching | General Purpose |
American Zettler | 1280 Ohms | 8 ms | 18.8 mA | Sealed - Fully | 150 VDC 400 VAC | 10 A | UL VDE | 1.2 VDC | Through Hole | SPDT (1 Form C) | 24 VDC | Class F | 5 ms | PC Pin | Silver Tin Oxide (AgSnO) | 18 VDC | -40 C | 110 °C | 150 W 2770 VA | Non Latching | General Purpose |
 American Zettler | 320 Ohms | 8 ms | 0.0375 A | 150 VDC 400 VAC | 10 A | UL VDE | 0.6 VDC | Through Hole | SPDT (1 Form C) | 12 VDC | Class F | 5 ms | PC Pin | Silver Tin Oxide (AgSnO) | 9 VDC | -40 C | 110 °C | 150 W 2770 VA | Non Latching | General Purpose |
